Hello! Greetings to all users MIDIBOX.
I need your help!
I realizate the project MIDIBOX_KB buying the pcb by SMART-Tv MBHP_CORE_LPC17 and MBHP_DIO_MATRIX. I used a keyboard FATAR TP8/SK 76-KEY but does not work well, you transpone of 5 notes. C = G #
I wanted to know if possibile use of midibox_kb
Thank you!
Hi,
which note_offset did you specify?
The first note can be adjusted with this parameter.
Best Regards, Thorsten.
Hi,
which note_offset did you specify?
The first note can be adjusted with this parameter.
Best Regards, Thorsten.
thanks for your answer.
pressing the C note, I feel the G #.

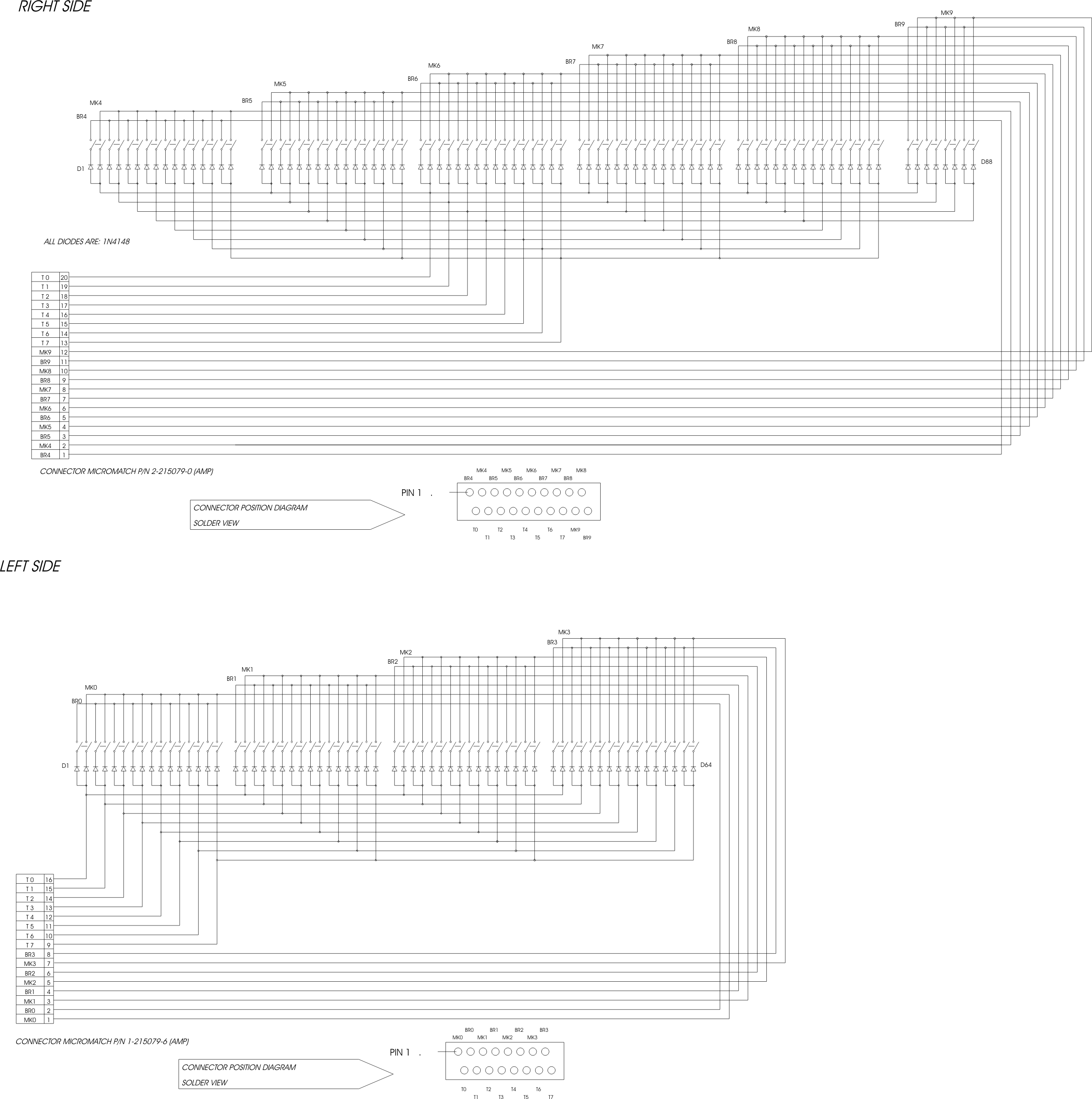

the last 4 notes right, do not play. MK9 is BR9 not know where to connect them on MBHP_DIO MATRIX. of your schematics are in the air.
Best Regards, Silviu.
Could you please enter “kb 1” in MIOS terminal, and copy&paste the output to this thread?
MK9/BK9: I would expect this only for the 88 key type… however, this schematic shows the required connections:
http://www.ucapps.de/midibox_kb/midibox_kb_fatar_df_88_interconnections.pdf
Best Regards, Thorsten.
Could you please enter “kb 1” in MIOS terminal, and copy&paste the output to this thread?
MK9/BK9: I would expect this only for the 88 key type… however, this schematic shows the required connections:
http://www.ucapps.de/midibox_kb/midibox_kb_fatar_df_88_interconnections.pdf
Best Regards, Thorsten.
hi!
[46844.806] kb 1 debug off
[46844.806] kb 1 midi_ports 0x1011
[46844.806] kb 1 midi_chn 1
[46844.806] kb 1 note_offset 36
[46844.806] kb 1 rows 8
[46844.806] kb 1 velocity on
[46844.806] kb 1 optimized off
[46844.806] kb 1 dout_sr1 1
[46844.807] kb 1 dout_sr2 2
[46844.807] kb 1 din_sr1 1
[46844.807] kb 1 din_sr2 2
[46844.807] kb 1 din_key_offset 32
[46844.807] kb 1 din_inverted off
[46844.807] kb 1 break_inverted off
[46844.807] kb 1 delay_fastest 100
[46844.809] kb 1 delay_slowest 2000
[46844.809] kb 1 ain_pitchwheel off
[46844.809] kb 1 ctrl_pitchwheel 128 (PitchBend)
[46844.809] kb 1 ain_modwheel off
[46844.809] kb 1 ctrl_modwheel 1 (CC)
NB. my keyboard it FATAR 76 KEY.
THANK!
HI!
I solved this way:
[56797.983] kb 1
[56797.984] kb 1 debug off
[56797.984] kb 1 midi_ports 0x1011
[56797.984] kb 1 midi_chn 1
[56797.984] kb 1 note_offset 28
[56797.984] kb 1 rows 16
[56797.985] kb 1 velocity on
[56797.985] kb 1 optimized off
[56797.985] kb 1 dout_sr1 1
[56797.985] kb 1 dout_sr2 2
[56797.986] kb 1 din_sr1 1
[56797.986] kb 1 din_sr2 2
[56797.986] kb 1 din_key_offset 32
[56797.986] kb 1 din_inverted off
[56797.986] kb 1 break_inverted off
[56797.986] kb 1 delay_fastest 100
[56797.986] kb 1 delay_slowest 2000
[56797.988] kb 1 ain_pitchwheel off
[56797.988] kb 1 ctrl_pitchwheel 128 (PitchBend)
[56797.988] kb 1 ain_modwheel off
[56797.988] kb 1 ctrl_modwheel 1 (CC)
for the last 4 notes E-6 F-6 F # 6 G-6 i solved by welding 2 wires. view photos attachments.
Thank you for this beautiful project, congratulations!
look aftertouch option for the future!
thank!
Thank you very much for the input!
I updated the schematic: http://www.ucapps.de/midibox_kb/midibox_kb_fatar_df_76_interconnections.pdf
And I changed the specification for the recommended parameters at http://www.ucapps.de/midibox_kb.html
Could you please check if following changes are working ok at your side:
set kb 1 rows 12
set kb 1 optimized on
[/code]
Best Regards, Thorsten.
Dear Thorsten,
Thank you very much for the input!
I updated the schematic: http://www.ucapps.de…connections.pdf
Could you please also check/correct the:Fatar DF88 interconnections
The interconnections between left & right side 20-Pin MicroMatch connectors seem to be incorrect.
Imho it should be:
Green lines (MKx):
J3,O7 -> MK0 -> MK5
J3,O5 -> MK1 -> MK6
J3,O3 -> MK2 -> MK7
J3,O1 -> MK3 -> MK8
J4,O7 -> MK4 -> MK9 (already correct)
J4,O5 --------> MK10 (already correct)
Red lines (BKx):
J3,O6 -> BK0 -> BK5
J3,O4 -> BK1 -> BK6
J3,O2 -> BK2 -> BK7
J3,O0 -> BK3 -> BK8
J4,O6 -> BK4 -> BK9 (already correct)
J4,O4 --------> BK10 (already correct)
Thanks for the fantastic KB project!
Best Regards
Jo
HI!I need to connect an encoder dialer on MIDIBOX kb. how do you?
THANK!!
