Edit : dont take the time to read this thread, no solution has been found. Sorry !
I can’t find where it has been installed and I don’t know which program to use to see if it works
You can see it in the device manager, and test it with MIOS Studio
Hi Killerfrog,
While I was trying to find back some eval package on the Cypress website, I indeed read that they do not advice the AN2131 for new designs. So it’s just a question of time before it’s completely phased-out…
Best regards,
Lall
that’s cool. Here on this forum people really take time to read !!
If I go foward in my idea, I would ask if anyone would have try to put the midinator code in a PIC18f2455 (or another that may be compatible ?) who may confirm it works or not ?
How can I get the version of my Pic ? Is it by using the pickit starter 2 ?

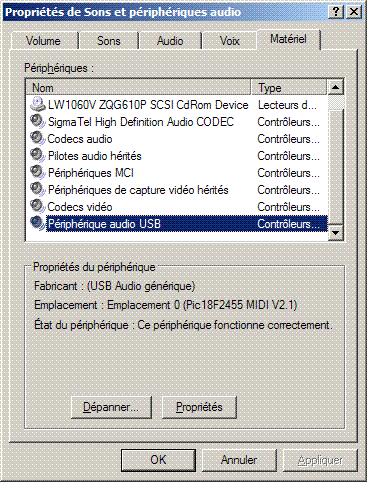

You were right about the device in Windows. Its appear when plugged under name (or in audio of windows under section hardware) : “périphérique audio USB”
Fabricant : USB Audio Générique
Emplacement : Emplacement 0 (Pic18F2455 MIDI V2.1)
État du périphérique : Ce périphérique fonctionne correctement
If I translate a little bit, it would say that everything works fine!

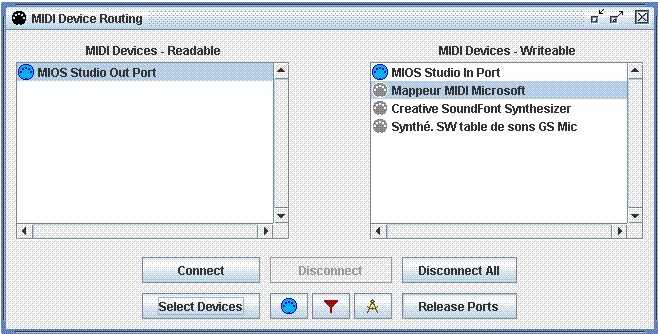

I join 3 pictures to show what I have, but I’m not sure it is detected by MIOS studio, is it ?
Thank up to know for fast answers and handfull help !
I join 3 pictures to show what I have, but I’m not sure it is detected by MIOS studio, is it ?
It’s installed, but apparently not as a midi device
I’ve always avoided USB MIDI, so I don’t think I can help much here
I see…
Do you think this could have something to do with the silicon bug, or that’s a bug with code itself ?
Thank you
P.S. Mabye someone has tried it so may have more information ?
I’m not really a pro of the USB MIDI but normally the MIDI is a kind of sub-part of the USB audio class. Maybe if something goes wrong at some stage, Windows gets stuck thinking it’s an audio interface…
Do you see this audio interface in the list of your second window (i.e. where you show that there’s no MIDI selection possible)? If Windows thinks it’s an audio interface, logically you should see it in the possible audio devices.
Best regards,
Lall
the only places where I found it I’ve have put in in those printscreens. It is no where else (at least that I think of).
Other idea ?
Funny I was thinking that too Lall.

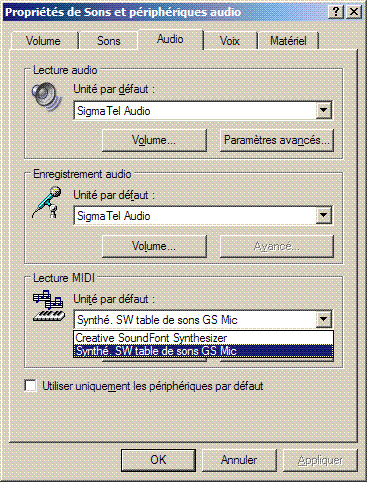

killerfrog: In the second screenshot, there are three drop-down list boxes. The top one says ‘Lecture Audio’, and the item selected is currently ‘SigmaTel Audio’.
What other items are available in that list?
What version of Windows are you running?
I know for sure that Windows98 does not support USB MIDI and that XP supports it.
But I’m wondering if for example Windows2000 supports it or not. M$ website is not that clear on the subject but it gives me the impression that it does not support it. Maybe someone who has used the MBHP USB MIDI module with Windows 2000 can comment on this one…
Best regards,
Lall
they do not advice the AN2131 for new designs. So it’s just a question of time before it’s completely phased-out…
FWIW, I inquired about that chip to Digikey a while back and they listed a “replacement” as being a:
CY7C64713-56LFXC (Digikey part# 428-1680-nd, I think)
I remember looking at it and it was a totally different package or something, but maybe someone more knowledgeable here would know if it’s useful for anything.
George
Hi Jidis,
They look pretty similar in a way at least only after 2 minutes read-through the application note an to EZ-USB FX1
The good point is that it contains more internal RAM. The EZ-USB was pretty limited to that respect if you want to do something a bit more complex without spending ages on optimization.
An inbetween point is the reduction of the number of endpoints. If I understand correctly, one need more endpoints when creating a composite device (e.g. a device that behaves at the same time as a mouse and as the same time as a MIDI interface). On the other hand, as long as you make only a MIDI interface with it, it does not really matter…
A bad point I see is the new packages they are using. They are less DIY-oriented than before. The EZ-USB was already a bit small but the new EZ-USB FX1 are even smaller.
One thing to really watch out is to avoid the CY7C64713-56LFXC that Digikey mentioned as it’s apparently a QFN package. That’s even worse than the small TQFP they propose as in QFN the pins are more or less under the chip!
On the other hand, I believe almost all new chips we can find will have the same issue of using TQFP like pacakges.
For the code, it looks like if you were not using too many specific things of the EZ-USB, converting to the EZ-USB FX1 should be doable in a reasonable amount of time even though a more detailed look should be taken to confirm that statement…
Best regards,
Lall
Funny I was thinking that too Lall.
killerfrog: In the second screenshot, there are three drop-down list boxes. The top one says ‘Lecture Audio’, and the item selected is currently ‘SigmaTel Audio’.
What other items are available in that list?
Maybe I have not expressed myself clearly (probably because of language barrier). There is nothig else than “SigmaTel Audio” that appears there. In fact, SigmaTel Audio is my supposed Sound Blaster chip I’ve paid for when I have ordered my Inspiron 9400…
I ask again a question I’ve have asked before; what is the way to know wich version of PIC18F2455 I have ?
At least it seems there is another solution comming out as “EZ-USB FX1” proposed by Lall, but the PIC version seems to be so more simple to build and to use! (at least if it can work at all !)
The PIC looks indeed simpler but here’s a post from TK I found back on the EUSART bug issue:
http://www.midibox.org/forum/index.php?topic=3628.msg27266#msg27266
I’m not enough into PICs to know if it applies to the one you’re using or not.
Concerning your problem, what version of Windows are you using? 2000 or XP?
Best regards,
Lall
The PIC looks indeed simpler but here’s a post from TK I found back on the EUSART bug issue:
http://www.midibox.org/forum/index.php?topic=3628.msg27266#msg27266
I’m not enough into PICs to know if it applies to the one you’re using or not.
Concerning your problem, what version of Windows are you using? 2000 or XP?
Best regards,
Lall
Yes, I’M aware of that bug (I’ve called this bug the Silicon bug in 2 or 3 other posts in this topic by using the same name the owner of this website has given to it !). Thank you. That’s the reason why I ask How I can get the revision version of my pic.
My Windows is Win XP.
Hi,
OK, sorry for repeating what you already knew, indeed you were using the same terms as used here :-[
Actually, I was a bit under the impression that the bug was supposed to have disappeared at some point but then was back again a bit later. But honestly I’m no pro in the PICs so I may well be confusing different PICs, there are so many variants that I’m getting a bit lost…
Best regards,
Lall
So am I !!
In fac, I never has used PIC before this week. So I don’t know a lot about them. I just wanted to do this for fun, but I found it is much more harder than a plug and play device…
At least, according to what I think of that bug that apply to transmition, this should have nothing to do with the detection or not in Windows XP : I mean that even if data would not pass (with this revision of the PIC, but not with the A0, A1 or A2 (mabye A4 ?)), there shouldn’t be any reason for the device to not beeing detected by Windows… or at least to not be completely on hands for the user…
I think you’re right, that bug should not affect the way Windows recognizes the device.
It should only affect the MIDI data you would send out using the UART.
The strange thing is that Windows recognizes your device and gives its name from the descriptors so the transmission must happen in a way or another but at the same time something must be missing or must be wrongly interpreted to allow Windows to know that it’s a MIDI interface and not only a generic USB audio thing.
That’s smelling the hours of debug I fear…
Best regards,
Lall
i’m going to see a friend for the next hours wish is more skill in pics, Midi and have more Hadware to test than I have. I’ll put some more infos in if we find something during this time.
If someone else would have infos of any sort, that would be nice to share !
Thank you.
I can offer a bit of information. I wrote a USB driver for class compatible interfaces, though not for Windows.
To qualify as “Class Compatible”, and be recognized by the built-in USB MIDI drivers, a device must identify itself as
CLASS 0x01 (meaning Audio) and
SUBCLASS 0x03 (meaning MIDISTREAMING)
Unless both of these match, it will not be handled with the builtin USB MIDI device driver.
I don’t know much about windows, I avoid it as much as i can, but any decent USB sniffer should be able to give you the class and subclass of any device.
Good Luck,
LyleHaze
