Hi everybody.
Long time ago we started the Clockbox project discussed in this forum. Now the hardware is nearly ready and we want to show you some pics:
I hope we find the time to get it done very soon.
bye braintu
Wow this looks great! Nice work!
Luke
Looks nice!
Hope you don’t mind, I edited your post to make the images fit in the window.
Hi everybody.
Long time ago we started the Clockbox project discussed in this forum. Now the hardware is nearly ready and we want to show you some pics:
front:

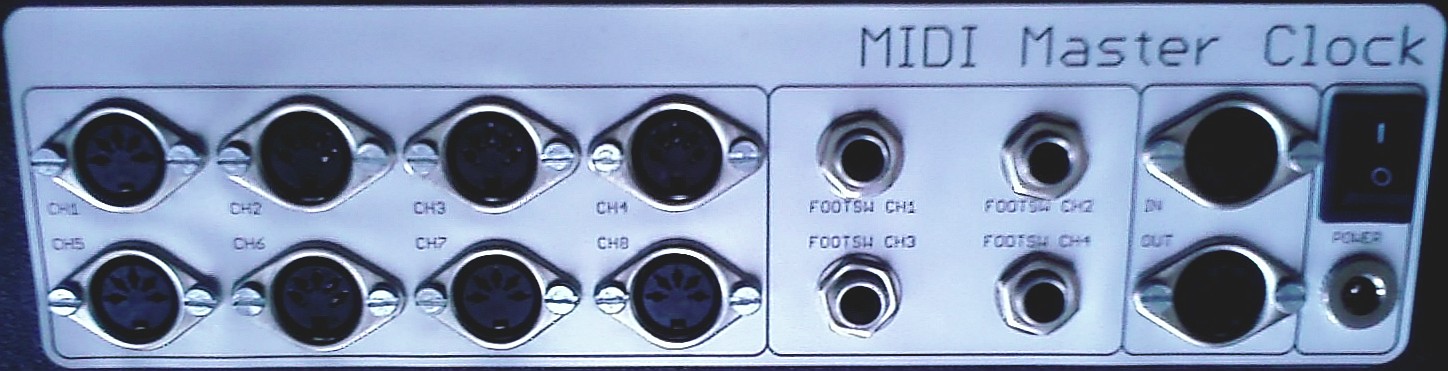

backpanel:
I hope we find the time to get it done very soon.
bye braintu
I’m just about to start building a Midi Master Clock myself, and I love your design.
Where did you get the case? Any chance on more details so that others can follow your design? This will be my first Midibox project…
The numbered channel buttons are from a Macintosh ADB keyboard, right? God I’m such a nerd
Your Stekgreif Project is also pretty awesome!
Word!
Hi again.
Thanks for the praise ;D
The case is an old one I bought from conrad electronic. I use a acryglas as a frontpanel because it is more easy to modify (drill…). Then I used printable foil to make it look good.
The design concept can be found here: http://www.midibox.org/dokuwiki/midimasterclock
There is a source code from TK. For this box we have to modify it a bit (witch is not done jet).
@stryd_one: Thanks for editing - I did not find the way to do it.
…and yas! the buttons are from an old mac keyboard.
@TK: Hi Thorsten. As you can see we got a fader and a joystick on our clockbox. But on the AINs there are all the MIDIOUTs. So my question is: what is the best pin to put two of the midiout to? - So that we can use the twi pins for analogue in?
Everyone a good time.
Greetings
I like the case as well!
@TK: Hi Thorsten. As you can see we got a fader and a joystick on our clockbox. But on the AINs there are all the MIDIOUTs. So my question is: what is the best pin to put two of the midiout to? - So that we can use the twi pins for analogue in?
RC4 and RC5 would be the first choice
Best Regards, Thorsten.
Ahh alright - then I will do it like this.
Btw. can you post the link to the source code again? I can not find it anymore. May be ad it to the wiki than it will be more easy for other users to rebuild it.
What about putting the pic of the clockbox in the wiki too? (As a sample it could look like)
Greetz brain
Btw. can you post the link to the source code again? I can not find it anymore. May be ad it to the wiki than it will be more easy for other users to rebuild it.
That’s what SVN is for. I’ll be happy to upload it there if you like, braintu? (But… Isn’t it there already?)
Yeah would be gread. If its there - can you post the link…? I am sorry I not sure which one it is.. ???
bye
http://svnmios.midibox.org/listing.php?repname=svn.mios&path=%2Ftrunk%2Fapps%2Fclockbox%2F
Isn’t it one of those? The one with 8 output support?
Yeah - thank you. Theres an other one at the mios code page :
Will see when i will find the time to finish this device…
braintu
pics are gone :
i know, i know…
the server crashed and all datas are gone…
will be back as soon as possible…
More good reasons not to use offsite doco </broken record>
i did not find an up load link on this page - is there any one…
i did not find an up load link on this page - is there any one…
It’s hidden in plain sight. When you’re posting, just below the body of your message, click “Additional Options…”
I’d like to see the pics too
Jej - pics are back.
@TK: Can you please upload this file http://www.ucapps.de/mios/clockbox_multi.pdf as an eagle file so I can edit it like we have done it an post it too.
braintu
