MBSEQ Meets Modular

Rowan · September 19, 2015, 2:03pm

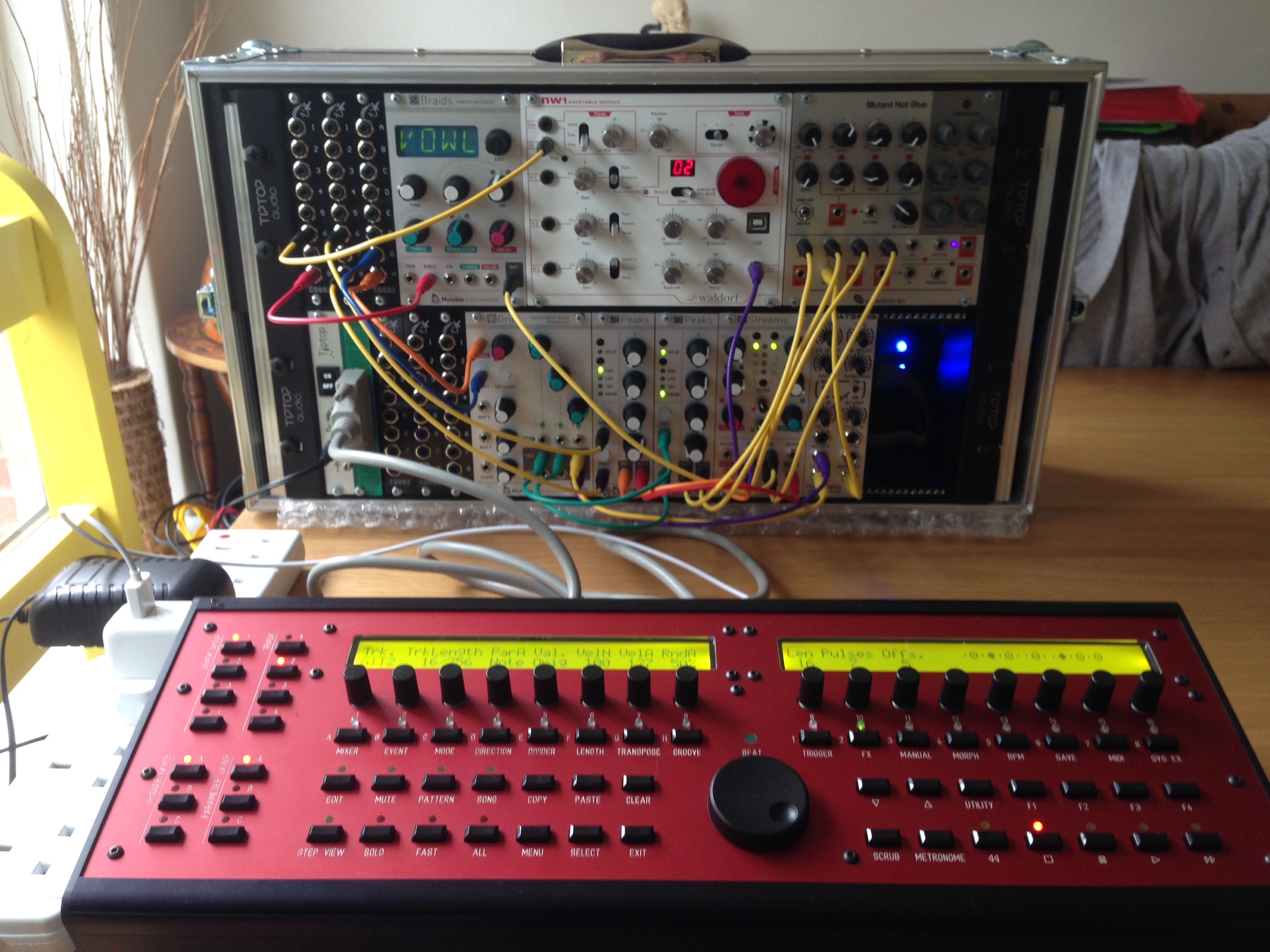

Today I mounted an AOUT_NG and DOUTX4 into the back of my Eurorack case. These are connected to a MB Line Driver (receiver) module. All the connections are broken out on o the front panel with 3 X Cat Girl Synth CGS-93 Trunk modules.

Now I’ve got a single cable connection between my MBSEQ and modular system and its working really well.

This setup is giving me 8 channels of CVs, 8 gates and 8 Clocks. I still have the ability to add a further 16 gates easily if I need to in the future.

slo · September 19, 2015, 5:23pm

Thanks for posting this, it’s what I had in mind. The CGS93 trunk line modules certainly is going to make it easier. Where did you get the CGS Panels?

The SEQV4 in red looks awesome btw

Rowan · September 19, 2015, 5:56pm

You can buy the PCB and panel directly from CGS, it’s only $10 a set and the only other parts you need to buy are the 16 way headers and mini jack sockets. Each module cost me about $15 to build, I really can recommend them highly enough. They can also be used as mulits which adds to their versiltlity.

latigid_on · September 20, 2015, 9:36am

Just needs a BLM

slo · September 20, 2015, 2:02pm

I just need a DOUTx4 PCB, I see SmashTV is sold out, hope he gets some more. I see your DOUTx4 has 8 IC’s, the photo at SmashTV shows 4 IC’s so he must be displaying an older version. Thanks for the post again, very helpful

George

T.K · September 20, 2015, 6:08pm

Thanks for the inspiration; interesting, what can be hidden into an Eurorack case!

I see your DOUTx4 has 8 IC’s, the photo at SmashTV shows 4 IC’s so he must be displaying an older version.

The “ICs” in the yellow package are actually 8x220 Ohm resistor arrays

Best Regards, Thorsten.
