MB6582 - LCD issue

MIDIbox SID
1

Hi !

I am almost done bulding the MB-6582 but i am stuck on LCD wiring and connection.

I followed the LCD wiring guide from here: http://www.midibox.org/users/jim_henry/building_a_midibox_lcd_cable.pdf

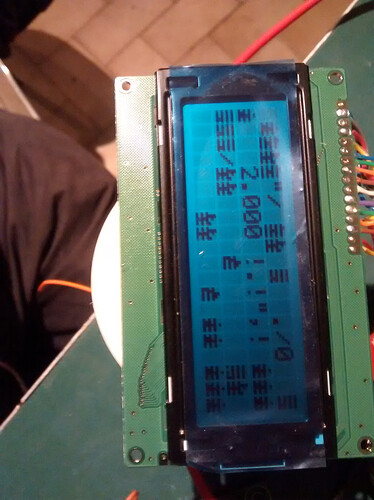

I had a first problem with my initial LCD: the Backlight wiring was not classic and i think i bricked the LCD. So i started with another one, i double-ckecked the pinouts but it still doesn’t work: i have weird characters appearing on screen (see attached picture)..

Any clue to help me troubleshoot this ?

I am trying to resurect an old CORE8 Module to test the LCD, but without success (i posted another thread about this issue). So for now i don’t have other to check if it is an LCD issue or MB-6582 issue…

Thanks !

Best Regards,

Thomas

IMG20160117192504476.jpg.ac4bca7bc1c1761a1ef14d7a9f52e577.jpg800×1067 287 KB

2

Hola!

Which LCD model is it? Do you have a link to the datasheet?

Imho, it might be an accidentally swapped data wire… you could try rebuilding a new cable, following these instructions: (they are not better than Jin Henrys, just a different approach, maybe it will work like this?)





< base_url >/topic/14564-building-the-mb-6582-control-surface-photo-tutorial/?do=embed&embedComment=129696&embedDo=findComment

Many greets!

Peter



3

Hi!

I bought a new one (a cheap one from Aliexpress, waited loooong time to receive it but it was 2$ + free shipping…)

And following your attached guide, i finally worked it thru !
I will replace with a better looking one later, but i am really thrilled it finally display something !

Last step now: link front and back boards.. never been so close :wink:

Thanks for pointing out the wiring guide !

Best,

Thomas
