I try to get all the parts of the control surface for the MB6582 together. I have got the PCB’s from SmashTV. Initially I was looking for the same red display used by Wilba but I can’t find it. I found the following ones:
Will these work in the MB6502 ? I wanted to make sure not to buy the wrong one..
Your help is much appreciated.
Cheers
Matt
Those displays look OK. You need to compare the dimensions with the “standard” one, see here: http://www.midibox.org/dokuwiki/doku.php?id=wilba_mb_6582_control_surface_parts_list
You should look at the spacing of the corner mount holes and the size of the bezel (check it will fit in the hole). At first glance, it looks OK.
The red/black one I used is here: http://character-lcd-lcds.shopeio.com/inventory/details.asp?id=1287&cat=Lcds&sub=Character%20Lcd
Thanks Wilba,
I think I will order the one you bought as well. That makes sense to me
Cheers
Matt
Hi,
I am currently preparing myself to assemble the MB6582 control surface pcb when I came across the following knowledge gap

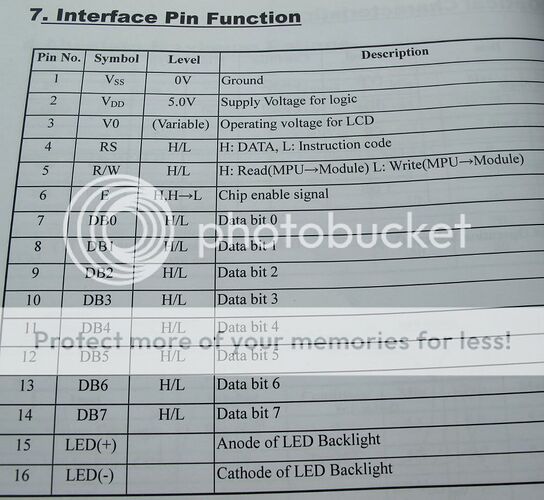

I bought the display mentioned by Wilba in this thread. Attached you will find the pin specification:
So far so good, but where can I find the specification of the pins on the base pcb ?
I wonder which pin of the display has to be connected to a pin on the pcb ? Is there somewhere a table with an explanation what the purpose of each pin on the pcb is ?
Cheers
orange
Hi,
I found the following information on ucapps:
http://ucapps.de/mbhp_lcd.html
I wonder if this applies to the display I bought ?

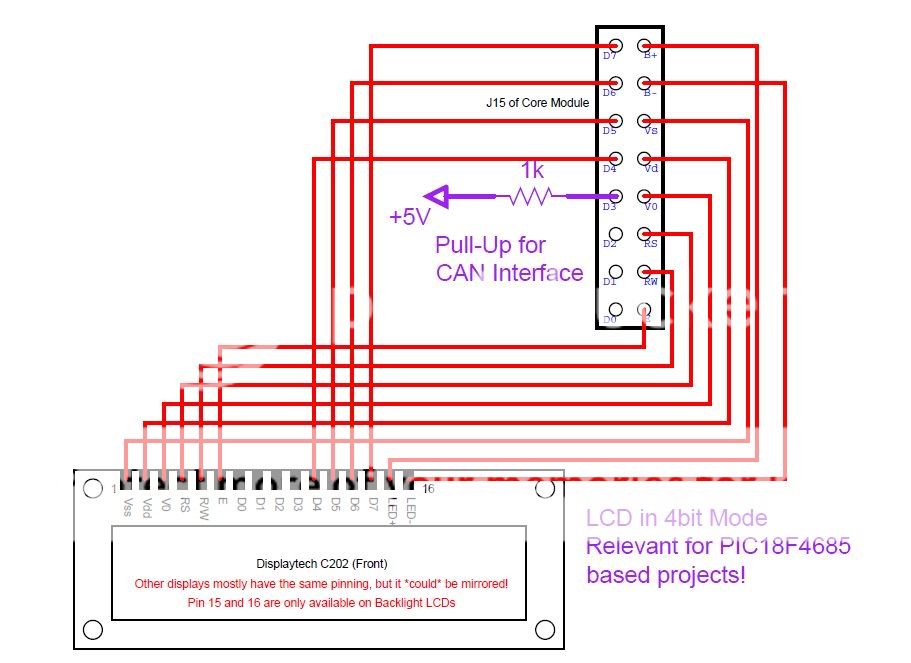

I ask because there is also the 8 bit mode which would look like this:
So which one would be the right wiring for my display ? I assume that I have to go with the 4 bit version as I am using the PIC 18F4685, but what do I have to do with the pullup resistor. Is this resistor really necessary ?
Thanks
orange
Hi,
Hmm, Chapter 7 - looks like my CrystalFonts pdf
Since the pins match mine here we go.
Please also be aware that assuming a standard 16-pin flat cable the pinning from right (Sids higher up than the cores of the baseboard) will be thus:
1,9,2,10,3,11,4,12,… up to 8, 16.
Therefore we also denote cable strands like so:
J15_Core1 pins to display pin:
1[1]: D7 - Dpin 14
9[2]: B+ - Dpin 15 (Led+, A, Anode)
2[3]: D6 - Dpin 13
10[4]: B- - Dpin 16 (Led-, K, Cathode)
3[5]: D5 - Dpin 12
11[6]: Vb - Dpin 1 (Gnd)
4[7]: D4 - Dpin 11
12[8]: Vd - Dpin 2 (+5V)
5[9]: D3 - Dpin 10
13[10]: VO - Dpin 3 (VLDD, variable)
6[11]: D2 - Dpin 9
14[12]: RS - Dpin 4
7[13]: D1 - Dpin 8
15[14]: RW - Dpin 5
8[15]: DO - Dpin 7
16[16]: E - Dpin 6
Don’t be bothered by the 4-bit mode unless your display does something really weird. Also, remember to turn the P2CoreN trimmer so that you can see something else than a blank display for Core1 and possibly the other cores if you’re testing those.
Good luck!
It will ´prolly work… the MB6582 default firmware uses the 4bit mode, so you can refer to that wiring diagram.
Also, the 6582 baseboard PCB supports the 8-bit mode, but it needs to be modded a little bit for that, I learned that from Wilba today. If he is asked nicely, he can provide details.
Hi jojjelito,

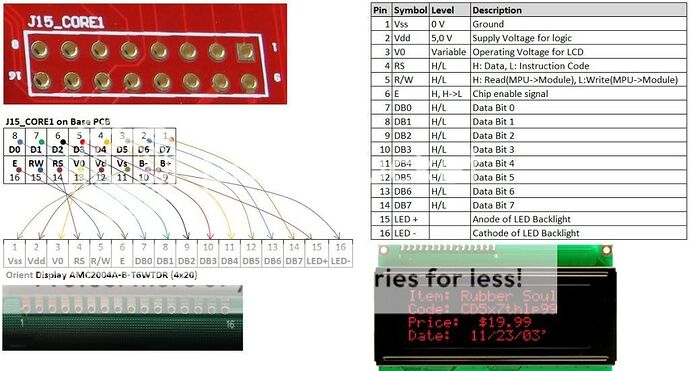

thanks for the quick reply. I have summarized it in the following overview which will help me later to build the cable:
So you mean that I can connect D0 to D3 without a problem ? Only if there is a problem with the display I should remove the connection for D0 to D3 ?
Thanks
orange
You can connect db0 to db3 or just leave them unconnected, it should not matter, since 4-bit mode is used nevertheless.
I connected db0-db3 in the photo tutorial -> there is also a description there how the soldering order was derived, but yours looks pretty good in my eyes.
Nice summary by the way… if all works out, as I expect, please tell me later on - i would then link to it from the photo tutorial, if I may.
Bye,
Hawkeye
Hiya,
Well, I connected all the data lines. So far there hasn’t been any problems but since my CS has been in flux, and not really completed I haven’t really ran my MB6582 for any long sessions yet. I’m about to finish the CS (must add LEDs around the encoders, plus detachable cabling) so that I can finally take her out to sea. My CS so far has been something I veroboarded for kicks. Then we shall see about that OLED thingy… And that external filter/VCA box with a beefy PSU.
Great picture BTW! You should add this to the Wiki. You have to be retarded or very very very tired not to succeed following this :logik:
Cheers!
Hi Hawkeye,
sure, I am still struggling to find the right cable and connector. I would like to have a proper 2x8 socket on the base pcb, but I need to check out Reichelt and Mouser to find the right thing …

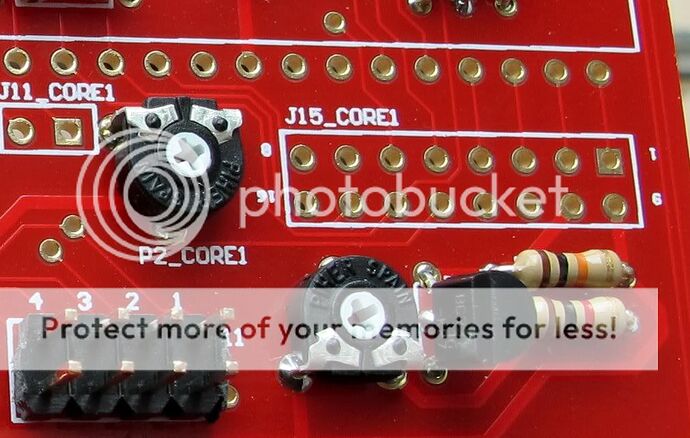

At the moment my base PCB is looking like this (started 5 days ago):
There is still a big piece of work left
Cheers
orange
looks already nice! a proper socket with polarity is a good thing
Looking good!
http://discourse.midibox.org/t/topic/14924
The LCD got connected with normal dual pin header like those for your other cores, no special IDC socket in my case. But, try it and let us know. It won’t hurt if you can fit it.
:frantics:
Hi Guys,
thanks so far for your help, I will report as soon as I have completed the wiring of the LCD display. In the meantime I had a short night session with my TR 808:
I am always surprised of the tight timing of my 808
Cheers
orange
