A SEQ V4 in a 3u 19" rack case of hard plastic. Wilba frontpanel, with built-in DREAM SAM2195 soundboard.
MBSEQ V4 rack version

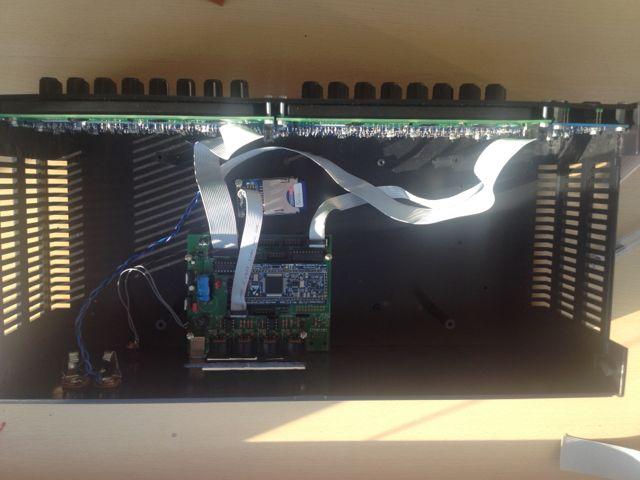

gut shot with core pcb revealed
MBSEQ V4 Rack version

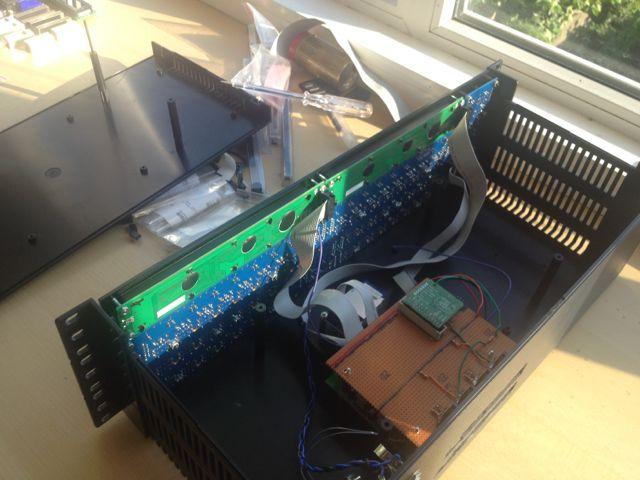

back end of the front panel
MBSEQ V4 Rack version

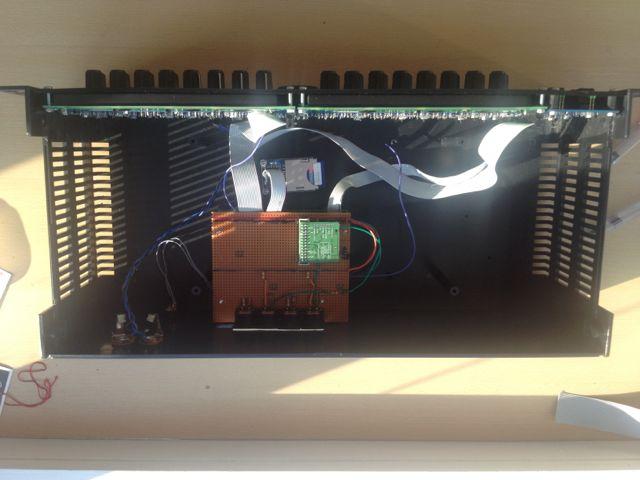

gut shot with midi 3/4 & soundboard breakout vero
MBSEQ V4 Rack version

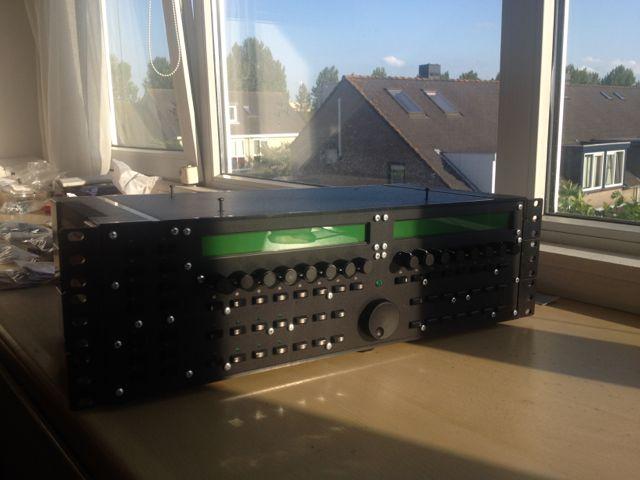

Front face
MBSEQ V4 Rack version
front face, another pic
MBSEQ V4 Rack version

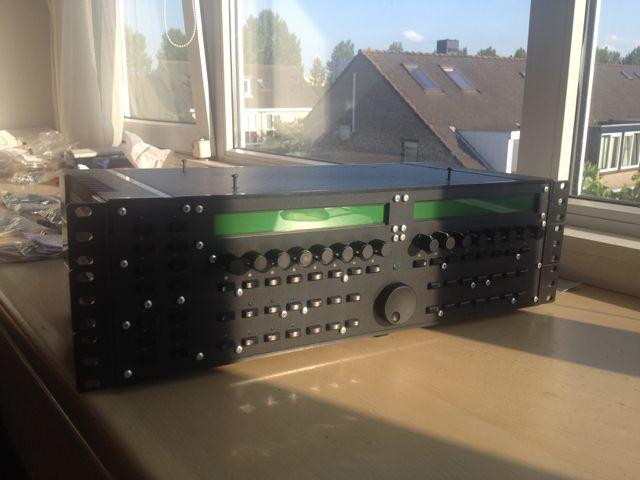

Front face, yet another
MBSEQ V4 Rack version
Back panel, midi 1-4 in / out, power connector and audio out
MBSEQ V4 Rack version

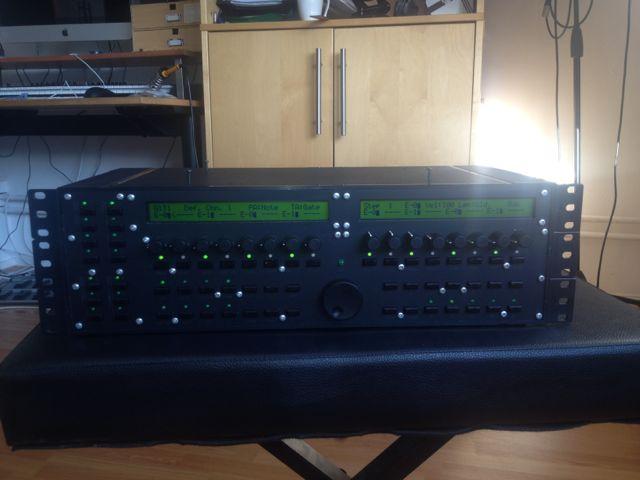

it is alive!
