Our translucent white silicon rubber keypads have 64 buttons plus 2 function buttons on the bottom. Each button has a hole on the bottom to allow for LED illumination. The buttons have a conductive backing for creating a contact to a circuit board. The button pad can be easily separated with a razor blade (at your own risk of course) to create a different layout.
These are the same buttons we use on our Ohm64 and block controllers and do not have any printing on them

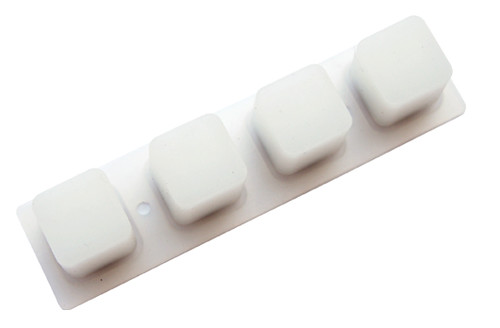

Our 4x1 translucent white silicon rubber keypads have 4 buttons . Each button has a hole on the bottom to allow for LED illumination. The buttons have a conductive backing for creating a contact to a circuit board. The button pad can be easily separated with a razor blade (at your own risk of course) to create a different layout.
These are the same buttons we use on our Ohm64 and block controllers and do not have any printing on them
The Contact space is a closed circle, that meens, you have to make a double sided board…on the upper side is then the BUTTON contact routing, on the lower the LED circuit… that meens, it will be harder to do that DIY ???
On personal experience, this type of contacts against bare cooper tend have duplicated triggering or fail to make contact sometimes so you need way to improve the contact, there’s this material to do the work, haven’t tested myself but I’ve seen it used with good results it seems:
You could cut away some of the contact circle, just enough to avoid touching the led traces, would be wise to protect those traces too (nail polish comes to mind).
Another thing to consider, with a top layer only diy pcb you’ll have to use surface mount components only.
Also, seeing the photo again is not clear if there’s actually a hole on the pads to be able to use regular leds, if not, maybe holes could be drilled.
