LED Digits Problem

MIDIbox NG
1

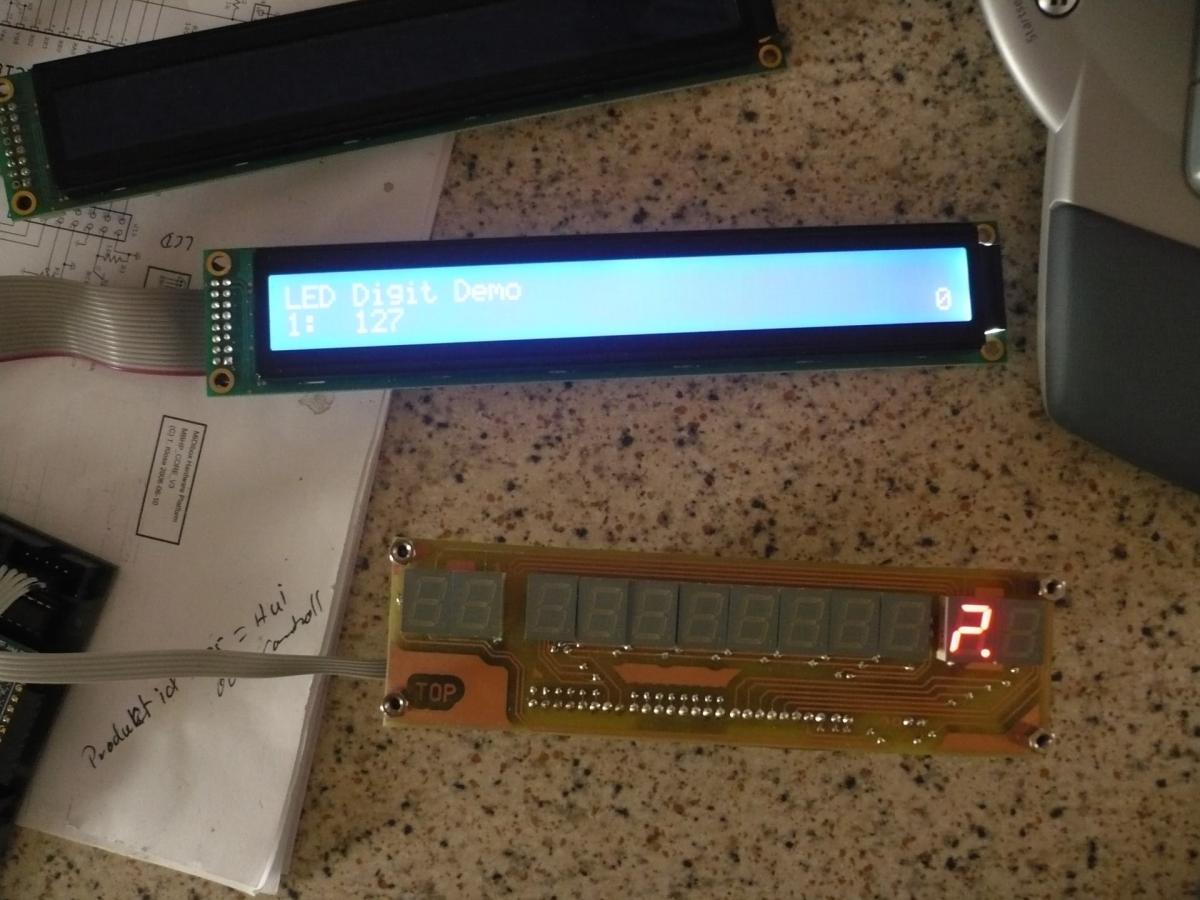

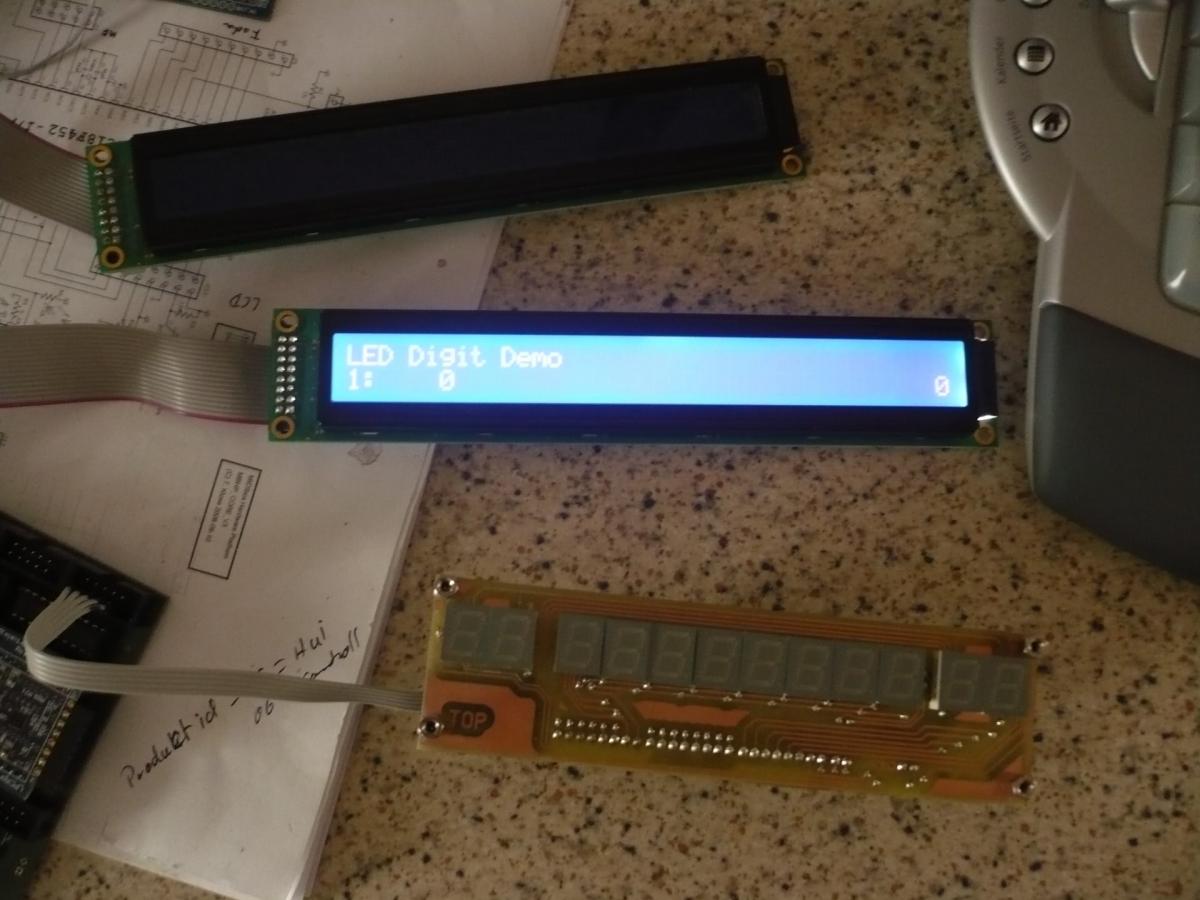

In Der Midibox LC läuft das LED Digits.

post-5218-0-47653900-1390665986.jpg1200×900 98.5 KB

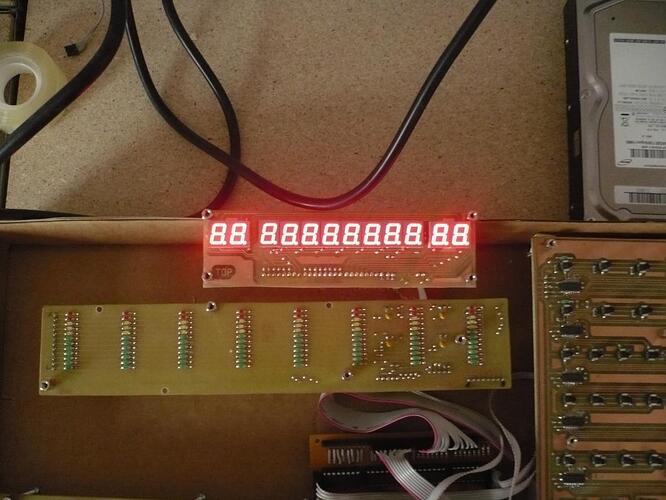

und im NG Leuchten all als 8+Dot

post-5218-0-20253200-1390666015.jpg1200×900 117 KB

Confi der NGC



**################################################################################

Reset the setup to default settings

This command ensures, that previous hardware definitions will be overwritten

by a new setup without the need to set defintions for all components

################################################################################
RESET_HW**

LCD “%C@(1:1:1  Lc test LED Ring Meter”

**################################################################################

SysEx communication

################################################################################**

# Device ID selects the device:
#   0x10 : Logic Control
#   0x11 : Logic Control XT
#   0x14 : Mackie Control
#   0x15 : Mackie Control XT
SYSEX_VAR dev=0x14

# Receive Device Query -> send Host Connection Query
EVENT_RECEIVER id=  1  fwd_id=SENDER:1 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x00 0xf7”
EVENT_SENDER   id=  1 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x01 0x4d 0x42 0x4e 0x47 0x56 0x31 0x00 0x00 0x00 0x00 0xf7”

# Receive Host Connection Reply -> send Host Connection Confirmation
EVENT_RECEIVER id=  2  fwd_id=SENDER:2 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x02 0xf7”
EVENT_SENDER   id=  2 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x03 0x4d 0x42 0x4e 0x47 0x56 0x31 0xf7”

# Firmware version request
EVENT_RECEIVER id=  3  fwd_id=SENDER:3 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x13 00 0xf7”
EVENT_SENDER   id=  3 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x14 0x56 0x31 0x2e 0x34 0x32 0xf7”

# Special Query for Mackie Control
EVENT_RECEIVER id=  4  fwd_id=SENDER:4 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x1a 0xf7”
EVENT_SENDER   id=  4 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x1b 0x42 0xf7”



**# this generic receiver (without controller assignment) receives the MTC digits

and notifies all events which select syxdump_pos=10:<pos-in-dump>**

EVENT_RECEIVER id=10  type=SysEx  stream=“0xf0 0x00 0x00 0x66 ^dev 0x10 ^dump”



**# this generic receiver (without controller assignment) receives the status digits

and notifies all events which select syxdump_pos=11:<pos-in-dump>**

EVENT_RECEIVER id=11  type=SysEx  stream=“0xf0 0x00 0x00 0x66 ^dev 0x11 ^dump”



**# LCD Messages

Note: we use ^txt56 instead of ^txt, so that the cursor will jump

#       to the next line after the 56th character has been reached
#       Use map=1 to map the cursor positions over a 2x80 LCD
EVENT_RECEIVER id=  5 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x12 ^cursor ^txt56” \
        range=map1**

**# X cursor positions are defined in MAP1

spread message over two 2x40 LCDs

MAP1   2  3  4  5  6  7  8 \
      12 13 14 15 16 17 18 \
      22 23 24 25 26 27 28 \
      32 33 34 35 36 37 38 \
      42 43 44 45 46 47 48 \
      52 53 54 55 56 57 58 \
      62 63 64 65 66 67 68 \
      72 73 74 75 76 77 78**

**# use this definition instead of the one above to print on a GLCD with small font (will work with a 240x64 LCD)

if multiple GLCDs are used, you could also use the normal font (&n)

not shown here: of course, it’s possible to map to different cursor positions as well.

event_receiver id= 5 \
#               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x12 ^cursor ^txt56” \
#        lcd_pos=1:3:1 label=“&s”**

**################################################################################

Rec/Ready 1-8 (Note Key: 0x00..0x07)

################################################################################
EVENT_BUTTON id=  1  type=NoteOn chn= 1 key=0x00
EVENT_BUTTON id=  2  type=NoteOn chn= 1 key=0x01
EVENT_BUTTON id=  3  type=NoteOn chn= 1 key=0x02
EVENT_BUTTON id=  4  type=NoteOn chn= 1 key=0x03
EVENT_BUTTON id=  5  type=NoteOn chn= 1 key=0x04
EVENT_BUTTON id=  6  type=NoteOn chn= 1 key=0x05
EVENT_BUTTON id=  7  type=NoteOn chn= 1 key=0x06
EVENT_BUTTON id=  8  type=NoteOn chn= 1 key=0x07**

EVENT_LED    id= 1   type=NoteOn chn= 1 key=0x07
EVENT_LED    id= 2   type=NoteOn chn= 1 key=0x06
EVENT_LED    id= 3   type=NoteOn chn= 1 key=0x05
EVENT_LED    id= 4   type=NoteOn chn= 1 key=0x04
EVENT_LED    id= 5   type=NoteOn chn= 1 key=0x03
EVENT_LED    id= 6   type=NoteOn chn= 1 key=0x02
EVENT_LED    id= 7   type=NoteOn chn= 1 key=0x01
EVENT_LED    id= 8   type=NoteOn chn= 1 key=0x00

**################################################################################

Mute 1-8 (Note Key: 0x10..0x17)

################################################################################
EVENT_BUTTON id= 9   type=NoteOn chn= 1 key=0x10
EVENT_BUTTON id= 10   type=NoteOn chn= 1 key=0x11
EVENT_BUTTON id= 11   type=NoteOn chn= 1 key=0x12
EVENT_BUTTON id= 12   type=NoteOn chn= 1 key=0x13
EVENT_BUTTON id= 13   type=NoteOn chn= 1 key=0x14
EVENT_BUTTON id= 14   type=NoteOn chn= 1 key=0x15
EVENT_BUTTON id= 15   type=NoteOn chn= 1 key=0x16
EVENT_BUTTON id= 16   type=NoteOn chn= 1 key=0x17**

EVENT_LED    id= 9    type=NoteOn chn= 1 key=0x17
EVENT_LED    id= 10   type=NoteOn chn= 1 key=0x16
EVENT_LED    id= 11   type=NoteOn chn= 1 key=0x15
EVENT_LED    id= 12   type=NoteOn chn= 1 key=0x14
EVENT_LED    id= 13   type=NoteOn chn= 1 key=0x13
EVENT_LED    id= 14   type=NoteOn chn= 1 key=0x12
EVENT_LED    id= 15   type=NoteOn chn= 1 key=0x11
EVENT_LED    id= 16   type=NoteOn chn= 1 key=0x10

**################################################################################

Solo 1-8 (Note Key: 0x08..0x0f)

################################################################################
EVENT_BUTTON id= 17   type=NoteOn chn= 1 key=0x08
EVENT_BUTTON id= 18   type=NoteOn chn= 1 key=0x09
EVENT_BUTTON id= 19   type=NoteOn chn= 1 key=0x0a
EVENT_BUTTON id= 20   type=NoteOn chn= 1 key=0x0b
EVENT_BUTTON id= 21   type=NoteOn chn= 1 key=0x0c
EVENT_BUTTON id= 22   type=NoteOn chn= 1 key=0x0d
EVENT_BUTTON id= 23   type=NoteOn chn= 1 key=0x0e
EVENT_BUTTON id= 24   type=NoteOn chn= 1 key=0x0f**

EVENT_LED    id= 17  type=NoteOn chn= 1 key=0x0f
EVENT_LED    id= 18  type=NoteOn chn= 1 key=0x0e
EVENT_LED    id= 19  type=NoteOn chn= 1 key=0x0d
EVENT_LED    id= 20  type=NoteOn chn= 1 key=0x0c
EVENT_LED    id= 21  type=NoteOn chn= 1 key=0x0b
EVENT_LED    id= 22  type=NoteOn chn= 1 key=0x0a
EVENT_LED    id= 23  type=NoteOn chn= 1 key=0x09
EVENT_LED    id= 24  type=NoteOn chn= 1 key=0x08

**################################################################################

Select 1-8 (Note Key: 0x18..0x1f)

################################################################################
EVENT_BUTTON id= 25   type=NoteOn chn= 1 key=0x18
EVENT_BUTTON id= 26   type=NoteOn chn= 1 key=0x19
EVENT_BUTTON id= 27   type=NoteOn chn= 1 key=0x1a
EVENT_BUTTON id= 28   type=NoteOn chn= 1 key=0x1b
EVENT_BUTTON id= 29   type=NoteOn chn= 1 key=0x1c
EVENT_BUTTON id= 30   type=NoteOn chn= 1 key=0x1d
EVENT_BUTTON id= 31   type=NoteOn chn= 1 key=0x1e
EVENT_BUTTON id= 32   type=NoteOn chn= 1 key=0x1f**

EVENT_LED    id= 25   type=NoteOn chn= 1 key=0x1f
EVENT_LED    id= 26   type=NoteOn chn= 1 key=0x1e
EVENT_LED    id= 27   type=NoteOn chn= 1 key=0x1d
EVENT_LED    id= 28   type=NoteOn chn= 1 key=0x1c
EVENT_LED    id= 29   type=NoteOn chn= 1 key=0x1b
EVENT_LED    id= 30   type=NoteOn chn= 1 key=0x1a
EVENT_LED    id= 31   type=NoteOn chn= 1 key=0x19
EVENT_LED    id= 32   type=NoteOn chn= 1 key=0x18

**################################################################################

SRegister 5

################################################################################
EVENT_BUTTON id= 33   type=NoteOn chn= 1 key=0x60

Cursor Up  0x60

EVENT_BUTTON id= 34   type=NoteOn chn= 1 key=0x5d

Stop    0x5d

EVENT_BUTTON id= 35   type=NoteOn chn= 1 key=0x5c

Fast Fwd  0x5c

EVENT_BUTTON id= 36   type=NoteOn chn= 1 key=0x5b

Rewind   0x5b

EVENT_BUTTON id= 37   type=NoteOn chn= 1 key=0x61

Cursor Down 0x61

EVENT_BUTTON id= 38   type=NoteOn chn= 1 key=0x62

Cursor Left  0x62

EVENT_BUTTON id= 39   type=NoteOn chn= 1 key=0x64

Zoom    0x64

EVENT_BUTTON id= 40   type=NoteOn chn= 1 key=0x63

Cursor Right 0x63**

**EVENT_LED       id= 33   type=NoteOn chn= 1 key=0x59

Add Marker 0x59

EVENT_LED       id= 34   type=NoteOn chn= 1 key=0x5a

Next Marker 0x5a

EVENT_LED       id= 35   type=NoteOn chn= 1 key=0x5b

Rewind   0x5b

EVENT_LED      id= 36   type=NoteOn chn= 1 key=0x5c

Fast Fwd  0x5c

EVENT_LED       id= 37   type=NoteOn chn= 1 key=0x5d

Stop    0x5d

EVENT_LED       id= 38  type=NoteOn chn= 1 key=0x5e

Play    0x5e

EVENT_LED       id= 39   type=NoteOn chn= 1 key=0x5f

Record   0x5f

EVENT_LED       id= 40   type=NoteOn chn= 1 key=0x64

Zoom    0x64**

**################################################################################

SRegister 6

################################################################################
EVENT_BUTTON id= 41   type=NoteOn chn= 1 key=0x58

Previous Marker 0x58

EVENT_BUTTON id= 42   type=NoteOn chn= 1 key=0x56

CYCLE    0x56

EVENT_BUTTON id= 43   type=NoteOn chn= 1 key=0x55

Right Marker  0x55

EVENT_BUTTON id= 44   type=NoteOn chn= 1 key=0x54

Left Marker   0x54

EVENT_BUTTON id= 45   type=NoteOn chn= 1 key=0x5f

Record    0x5f

EVENT_BUTTON id= 46   type=NoteOn chn= 1 key=0x5e

Play     0x5e

EVENT_BUTTON id= 47   type=NoteOn chn= 1 key=0x5a

Next Marker  0x5a

EVENT_BUTTON id= 48   type=NoteOn chn= 1 key=0x59

ADD Marker  0x59 **

**#EVENT_LED    id= 41   type=NoteOn chn= 1 key=0xff

no LED

EVENT_LED      id= 42   type=NoteOn chn= 1 key=0x33

(Chanal Win)  0x33

EVENT_LED      id= 43   type=NoteOn chn= 1 key=0x4e

(Mix Win)   0x4e

EVENT_LED      id= 44   type=NoteOn chn= 1 key=0x4d

(Projekt fenster ) 0x4d

EVENT_LED      id= 45   type=NoteOn chn= 1 key=0x54

Left Marker   0x54

EVENT_LED      id= 46   type=NoteOn chn= 1 key=0x55

Right Marker  0x55

EVENT_LED      id= 47   type=NoteOn chn= 1 key=0x56

CYCLE    0x56

EVENT_LED      id= 48   type=NoteOn chn= 1 key=0x58

Previous Marker 0x58**

**################################################################################

SRegister 7

################################################################################
EVENT_BUTTON id= 49   type=NoteOn chn= 1 key=0x33

(Chanal Win)  0x33

EVENT_BUTTON id= 50   type=NoteOn chn= 1 key=0x53

(Shift)     0x53

EVENT_BUTTON id= 51   type=NoteOn chn= 1 key=0x47

(Redo)    0x47

EVENT_BUTTON id= 52   type=NoteOn chn= 1 key=0x46

(Undo)    0x46

EVENT_BUTTON id= 53   type=NoteOn chn= 1 key=0x48

(SAVE)    0x48

EVENT_BUTTON id= 54   type=NoteOn chn= 1 key=0x49

(Revert)    0x49

EVENT_BUTTON id= 55   type=NoteOn chn= 1 key=0x4d

(Projekt fenster) 0x4d

EVENT_BUTTON id= 56   type=NoteOn chn= 1 key=0x4e

(Mix Win)   0x4e **

**#EVENT_LED    id= 49   type=NoteOn chn= 1 key=0xff

no LED

EVENT_LED      id= 50   type=NoteOn chn= 1 key=0x4b

Write      0x4b

EVENT_LED      id= 51   type=NoteOn chn= 1 key=0x4a

Read / off    0x4a

EVENT_LED      id= 52   type=NoteOn chn= 1 key=0x47

Redo        0x47

EVENT_LED      id= 53   type=NoteOn chn= 1 key=0x46

Undo      0x46

EVENT_LED      id= 54   type=NoteOn chn= 1 key=0x48

SAVE     0x48

EVENT_LED      id= 55   type=NoteOn chn= 1 key=0x49

Revert     0x49

EVENT_LED      id= 56   type=NoteOn chn= 1 key=0x4f

Motor      0x4f**

**################################################################################

SRegister 8

################################################################################
EVENT_BUTTON id= 57   type=NoteOn chn= 1 key=0x41

(Fadergroup 4)  0x41

EVENT_BUTTON id= 58   type=NoteOn chn= 1 key=0x40

(Fadergroup 3)  0x40

EVENT_BUTTON id= 59   type=NoteOn chn= 1 key=0x3f

(Fadergroup 2)  0x3f

EVENT_BUTTON id= 60   type=NoteOn chn= 1 key=0x3e

(Fadergroup 1)  0x3e

EVENT_BUTTON id= 61   type=NoteOn chn= 1 key=0x4a

(READ/OFF)   0x4a

EVENT_BUTTON id= 62   type=NoteOn chn= 1 key=0x4b

(WRITE)     0x4b

EVENT_BUTTON id= 63   type=NoteOn chn= 1 key=0x4f

(MotorFader on/off) 0x4f

#event_button id= 64   type=NoteOn chn= 1 key=0x98

(MIDIbox LC specific: 0x98 **

**EVENT_LED    id= 57   type=NoteOn chn= 1 key=0x2c

EQ     0x2c

EVENT_LED      id= 58   type=NoteOn chn= 1 key=0x51

FX Master   0x51

EVENT_LED      id= 59   type=NoteOn chn= 1 key=0x2d

Chn FX Sends  0x2d

EVENT_LED      id= 60   type=NoteOn chn= 1 key=0x50

VSTi     0x50

EVENT_LED      id= 61   type=NoteOn chn= 1 key=0x2a

Pan     0x2a

EVENT_LED      id= 62   type=NoteOn chn= 1 key=0x2b

Chn Inserts   0x2b

EVENT_LED      id= 63   type=NoteOn chn= 1 key=0x29

Page Up    0x29

EVENT_LED      id= 64   type=NoteOn chn= 1 key=0x28

Page Down   0x28**

**################################################################################

SRegister 9

################################################################################
EVENT_BUTTON id= 65   type=NoteOn chn= 1 key=0x39

(F-4)     0x39

EVENT_BUTTON id= 66   type=NoteOn chn= 1 key=0x38

(F-3)     0x38

EVENT_BUTTON id= 67   type=NoteOn chn= 1 key=0x37

(F-2)     0x37

EVENT_BUTTON id= 68   type=NoteOn chn= 1 key=0x36

(F-1)     0x36

EVENT_BUTTON id= 69   type=NoteOn chn= 1 key=0x42

(Fadergroup 5) 0x42

EVENT_BUTTON id= 70   type=NoteOn chn= 1 key=0x43

(Fadergroup 6) 0x43

EVENT_BUTTON id= 71   type=NoteOn chn= 1 key=0x44

(Fadergroup 7) 0x44

EVENT_BUTTON id= 72   type=NoteOn chn= 1 key=0x45

(Fadergroup 8) 0x45 **

**#EVENT_LED      id= 65   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 66   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 67   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 68   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 69   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 70   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 71   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff

#EVENT_LED      id= 72   type=NoteOn chn= 1 key=0xff

(no LED ) 0xff**

**################################################################################

SRegister 10

################################################################################
EVENT_BUTTON id= 73   type=NoteOn chn= 1 key=0x52

(SOLO Defeat) 0x52

EVENT_BUTTON id= 74   type=NoteOn chn= 1 key=0x4c

(Sends)    0x4c

EVENT_BUTTON id= 75   type=NoteOn chn= 1 key=0x65

SCRUB    0x65

#event_button id= 76   type=NoteOn chn= 1 key=0x84

MBLC_DISPLAY_NEXT   0x84

EVENT_BUTTON id= 77   type=NoteOn chn= 1 key=0x3a
#  (F-5)     0x3a
EVENT_BUTTON id= 78   type=NoteOn chn= 1 key=0x3b

(F-6)     0x3b

EVENT_BUTTON id= 79   type=NoteOn chn= 1 key=0x3c

(F-7)     0x3c

EVENT_BUTTON id= 80   type=NoteOn chn= 1 key=0x3d

(F-8)     0x3d **

**#EVENT_LED        id= 73   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 74   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 75   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 76   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 77   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 78   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 79   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 80   type=NoteOn chn= 1 key=0xff

(no LED)**

**################################################################################

SRegister 11

################################################################################
EVENT_BUTTON id= 81  type=NoteOn chn= 1 key=0x2b

(Channel Insets)  0x2b

EVENT_BUTTON id= 82   type=NoteOn chn= 1 key=0x2f

(Bank Right)    0x2f

EVENT_BUTTON id= 83   type=NoteOn chn= 1 key=0x2e

(Bank Left)    0x2e

EVENT_BUTTON id= 84   type=NoteOn chn= 1 key=0x28

(Page Up)    0x28

EVENT_BUTTON id= 85   type=NoteOn chn= 1 key=0x35

(SMPTE_BEATS)  0x35

EVENT_BUTTON id= 86   type=NoteOn chn= 1 key=0x32

(Flip)      0x32

#event_button id= 87   type=NoteOn chn= 1 key=0xa0

(Punch)     0xa0

#event_button id= 88   type=NoteOn chn= 1 key=0xa1

IGNORE     0xa1 **

**#EVENT_LED       id= 81   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 82   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 83   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 84   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 85   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 86   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 87   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 88   type=NoteOn chn= 1 key=0xff

(no LED)**

**################################################################################

SRegister 12

################################################################################
EVENT_BUTTON id= 89   type=NoteOn chn= 1 key=0x2a

(Pan)     0x2a

EVENT_BUTTON id= 90   type=NoteOn chn= 1 key=0x31

(BANK_CHANNEL_RIGHT )    0x31

EVENT_BUTTON id= 91   type=NoteOn chn= 1 key=0x30

(BANK_CHANNEL_LEFT)    0x30

EVENT_BUTTON id= 92   type=NoteOn chn= 1 key=0x29

(Page Down)   0x29

EVENT_BUTTON id= 93   type=NoteOn chn= 1 key=0x2d

(Channel FX Sends) 0x2d

EVENT_BUTTON id= 94   type=NoteOn chn= 1 key=0x51

(MASTER FX   0x51

EVENT_BUTTON id= 95   type=NoteOn chn= 1 key=0x2c

(EQ)      0x2c

EVENT_BUTTON id= 96   type=NoteOn chn= 1 key=0x50

(VSTi)     0x50 **

**#EVENT_LED    id= 89   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 90   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 91   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 92   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 93   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 94   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 95   type=NoteOn chn= 1 key=0xff

(no LED)

#EVENT_LED      id= 96   type=NoteOn chn= 1 key=0xff

(no LED)**

**################################################################################

VPots (Encoders with LED rings)

################################################################################**

# LED_MATRIX_PATTERNs
LED_MATRIX_PATTERN n= 1  pos= 0  pattern=0000000000000000
LED_MATRIX_PATTERN n= 1  pos= 1  pattern=1000000000000000
LED_MATRIX_PATTERN n= 1  pos= 2  pattern=0100000000000000
LED_MATRIX_PATTERN n= 1  pos= 3  pattern=0010000000000000
LED_MATRIX_PATTERN n= 1  pos= 4  pattern=0001000000000000
LED_MATRIX_PATTERN n= 1  pos= 5  pattern=0000100000000000
LED_MATRIX_PATTERN n= 1  pos= 6  pattern=0000010000000000
LED_MATRIX_PATTERN n= 1  pos= 7  pattern=0000001000000000
LED_MATRIX_PATTERN n= 1  pos= M  pattern=0000000100000000
LED_MATRIX_PATTERN n= 1  pos= 8  pattern=0000000100000000
LED_MATRIX_PATTERN n= 1  pos= 9  pattern=0000000010000000
LED_MATRIX_PATTERN n= 1  pos=10  pattern=0000000001000000
LED_MATRIX_PATTERN n= 1  pos=11  pattern=0000000000100000
LED_MATRIX_PATTERN n= 1  pos=12  pattern=0000000000100000
LED_MATRIX_PATTERN n= 1  pos=13  pattern=0000000000100000
LED_MATRIX_PATTERN n= 1  pos=14  pattern=0000000000100000
LED_MATRIX_PATTERN n= 1  pos=15  pattern=0000000000100000

LED_MATRIX_PATTERN n= 2  pos= 0  pattern=0000000000000000
LED_MATRIX_PATTERN n= 2  pos= 1  pattern=1111110000000000
LED_MATRIX_PATTERN n= 2  pos= 2  pattern=0111110000000000
LED_MATRIX_PATTERN n= 2  pos= 3  pattern=0011110000000000
LED_MATRIX_PATTERN n= 2  pos= 4  pattern=0001110000000000
LED_MATRIX_PATTERN n= 2  pos= 5  pattern=0000110000000000
LED_MATRIX_PATTERN n= 2  pos= 6  pattern=0000010000000000
LED_MATRIX_PATTERN n= 2  pos= 7  pattern=0000011000000000
LED_MATRIX_PATTERN n= 2  pos= M  pattern=0000011000000000
LED_MATRIX_PATTERN n= 2  pos= 8  pattern=0000011100000000
LED_MATRIX_PATTERN n= 2  pos= 9  pattern=0000011110000000
LED_MATRIX_PATTERN n= 2  pos=10  pattern=0000011111000000
LED_MATRIX_PATTERN n= 2  pos=11  pattern=0000011111100000
LED_MATRIX_PATTERN n= 2  pos=12  pattern=0000011111100000
LED_MATRIX_PATTERN n= 2  pos=13  pattern=0000011111100000
LED_MATRIX_PATTERN n= 2  pos=14  pattern=0000011111100000
LED_MATRIX_PATTERN n= 2  pos=15  pattern=0000011111100000

LED_MATRIX_PATTERN n= 3  pos= 0  pattern=0000000000000000
LED_MATRIX_PATTERN n= 3  pos= 1  pattern=1000000000000000
LED_MATRIX_PATTERN n= 3  pos= 2  pattern=1100000000000000
LED_MATRIX_PATTERN n= 3  pos= 3  pattern=1110000000000000
LED_MATRIX_PATTERN n= 3  pos= 4  pattern=1111000000000000
LED_MATRIX_PATTERN n= 3  pos= 5  pattern=1111100000000000
LED_MATRIX_PATTERN n= 3  pos= 6  pattern=1111110000000000
LED_MATRIX_PATTERN n= 3  pos= 7  pattern=1111111000000000
LED_MATRIX_PATTERN n= 3  pos= M  pattern=1111111000000000
LED_MATRIX_PATTERN n= 3  pos= 8  pattern=1111111100000000
LED_MATRIX_PATTERN n= 3  pos= 9  pattern=1111111110000000
LED_MATRIX_PATTERN n= 3  pos=10  pattern=1111111111000000
LED_MATRIX_PATTERN n= 3  pos=11  pattern=1111111111100000
LED_MATRIX_PATTERN n= 3  pos=12  pattern=1111111111100000
LED_MATRIX_PATTERN n= 3  pos=13  pattern=1111111111100000
LED_MATRIX_PATTERN n= 3  pos=14  pattern=1111111111100000
LED_MATRIX_PATTERN n= 3  pos=15  pattern=1111111111100000

LED_MATRIX_PATTERN n= 4  pos= 0  pattern=0000000000000000
LED_MATRIX_PATTERN n= 4  pos= 1  pattern=0000010000000000
LED_MATRIX_PATTERN n= 4  pos= 2  pattern=0000111000000000
LED_MATRIX_PATTERN n= 4  pos= 3  pattern=0001111100000000
LED_MATRIX_PATTERN n= 4  pos= 4  pattern=0011111110000000
LED_MATRIX_PATTERN n= 4  pos= 5  pattern=0111111111000000
LED_MATRIX_PATTERN n= 4  pos= 6  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos= 7  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos= M  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos= 8  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos= 9  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=10  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=11  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=12  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=13  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=14  pattern=1111111111100000
LED_MATRIX_PATTERN n= 4  pos=15  pattern=1111111111100000

ENC n=  1   sr=13 pins=0:1   type=non_detented
ENC n=  2   sr=13 pins=2:3   type=non_detented
ENC n=  3   sr=13 pins=4:5   type=non_detented
ENC n=  4   sr=13 pins=6:7   type=non_detented
ENC n=  5   sr=14 pins=0:1   type=non_detented
ENC n=  6   sr=14 pins=2:3   type=non_detented
ENC n=  7   sr=14 pins=4:5   type=non_detented
ENC n=  8   sr=14 pins=6:7   type=non_detented

EVENT_ENC    id= 1  type=CC  chn= 1 cc=0x10  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 2  type=CC  chn= 1 cc=0x11  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 3  type=CC  chn= 1 cc=0x12  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 4  type=CC  chn= 1 cc=0x13  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 5  type=CC  chn= 1 cc=0x14  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 6  type=CC  chn= 1 cc=0x15  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 7  type=CC  chn= 1 cc=0x16  enc_mode=Inc00Speed_Dec40Speed
EVENT_ENC    id= 8  type=CC  chn= 1 cc=0x17  enc_mode=Inc00Speed_Dec40Speed

**################################################################################

Jogwheel (Encoder)

################################################################################**

# Jogwheel
ENC n=  9   sr= 15 pins=0:1   type=non_detented

EVENT_ENC    id= 9  type=CC  chn= 1 cc=0x3c  enc_mode=Inc00Speed_Dec40Speed
################################################################################

DOUT_MATRIX n= 1   rows=16 inverted=0  sr_dout_sel1= 10  sr_dout_r1=11 sr_dout_r2=12

EVENT_LED_MATRIX   id= 1  type=CC  chn= 1 cc=0x30  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 2  type=CC  chn= 1 cc=0x31  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 3  type=CC  chn= 1 cc=0x32  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 4  type=CC  chn= 1 cc=0x33  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 5  type=CC  chn= 1 cc=0x34  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 6  type=CC  chn= 1 cc=0x35  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 7  type=CC  chn= 1 cc=0x36  led_matrix_pattern=LcAuto
EVENT_LED_MATRIX   id= 8  type=CC  chn= 1 cc=0x37  led_matrix_pattern=LcAuto

**################################################################################

Meters

Assign to lc_meter_port=USB1 (incoming Channel Pressure events will be

converted into meter pattern)

################################################################################
DOUT_MATRIX n= 4   rows=16 inverted=0  sr_dout_sel1=14 sr_dout_r1=15 sr_dout_r2=16 \
                   lc_meter_port=USB1**

LC_METER_PATTERN pos= 0  pattern=0000000000000000
LC_METER_PATTERN pos= 1  pattern=1000000000000000
LC_METER_PATTERN pos= 2  pattern=1100000000000000
LC_METER_PATTERN pos= 3  pattern=1110000000000000
LC_METER_PATTERN pos= 4  pattern=1110000000000000
LC_METER_PATTERN pos= 5  pattern=1111000000000000
LC_METER_PATTERN pos= 6  pattern=1111100000000000
LC_METER_PATTERN pos= 7  pattern=1111110000000000
LC_METER_PATTERN pos= 8  pattern=1111111000000000
LC_METER_PATTERN pos= 9  pattern=1111111100000000
LC_METER_PATTERN pos=10  pattern=1111111100000000
LC_METER_PATTERN pos=11  pattern=1111111110000000
LC_METER_PATTERN pos=12  pattern=1111111110000000
LC_METER_PATTERN pos=13  pattern=1111111111000000
LC_METER_PATTERN pos=14  pattern=1111111111000000
LC_METER_PATTERN pos=15  pattern=1111111111100000

# where is the overload LED located?
#LC_METER_PATTERN pos= O  pattern=0000000000010000

# Reset all meters if the “global meter mode” message is received
EVENT_RECEIVER id=  20  fwd_id=SENDER:20 \
               type=SysEx stream=“0xf0 0x00 0x00 0x66 ^dev 0x21”

EVENT_SENDER   id=  20 \
               type=Meta  meta=ResetMeters

**################################################################################

Motorfaders

################################################################################**

**# we’ve a single MBHP_MF_NG module with 8 motorfaders

It has to be configured for Motormix protocol!

MF n=1  enabled=1  midi_in_port=IN3  midi_out_port=OUT3  chn=1  ts_first_button_id=2001  config_port=USB3**

# on motorfader movements
EVENT_MF  id= 1  type=PitchBend  chn= 1  range=0:16383
EVENT_MF  id= 2  type=PitchBend  chn= 2  range=0:16383
EVENT_MF  id= 3  type=PitchBend  chn= 3  range=0:16383
EVENT_MF  id= 4  type=PitchBend  chn= 4  range=0:16383
EVENT_MF  id= 5  type=PitchBend  chn= 5  range=0:16383
EVENT_MF  id= 6  type=PitchBend  chn= 6  range=0:16383
EVENT_MF  id= 7  type=PitchBend  chn= 7  range=0:16383
EVENT_MF  id= 8  type=PitchBend  chn= 8  range=0:16383

# on touchsensor event (first id has been specified in the MF configuration above)
EVENT_BUTTON  id= 2001  type=NoteOn chn= 1 key=0x68  range=0:127
EVENT_BUTTON  id= 2002  type=NoteOn chn= 1 key=0x69  range=0:127
EVENT_BUTTON  id= 2003  type=NoteOn chn= 1 key=0x70  range=0:127
EVENT_BUTTON  id= 2004  type=NoteOn chn= 1 key=0x71  range=0:127
EVENT_BUTTON  id= 2005  type=NoteOn chn= 1 key=0x72  range=0:127
EVENT_BUTTON  id= 2006  type=NoteOn chn= 1 key=0x73  range=0:127
EVENT_BUTTON  id= 2007  type=NoteOn chn= 1 key=0x74  range=0:127
EVENT_BUTTON  id= 2008  type=NoteOn chn= 1 key=0x75  range=0:127

**################################################################################

MTC and Status LED Digits

################################################################################**

**# HW definitions for “Common Cathode” Digits

see also http://www.ucapps.de/midibox_ng/mbng_led_digits_mtc.pdf

 DOUT_MATRIX n=2   rows=8   sr_dout_r1=17 inverted_row=0  mirrored_row=1  sr_dout_sel1=18  inverted_sel=0
 DOUT_MATRIX n=3   rows=8   sr_dout_r2=19 inverted_row=0  mirrored_row=1  sr_dout_sel2=20  inverted_sel=0**

**# for “Common Anode” set inverted_row=1 and inverted_sel=1

if the segment connections are mirrored, set mirrored_row=1**

# the digits are accessible with:
 second matrix (n=2): LED_MATRIX:17 … LED_MATRIX:24
 third matrix  (n=3): LED_MATRIX:33 … LED_MATRIX:40

# direct access to the digits via CC#64..CC#73
EVENT_LED_MATRIX id=33 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 64  syxdump_pos=10:0
EVENT_LED_MATRIX id=34 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 65  syxdump_pos=10:1
EVENT_LED_MATRIX id=17 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 66  syxdump_pos=10:2
EVENT_LED_MATRIX id=18 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 67  syxdump_pos=10:3
EVENT_LED_MATRIX id=19 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 68  syxdump_pos=10:4
EVENT_LED_MATRIX id=20 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 69  syxdump_pos=10:5
EVENT_LED_MATRIX id=21 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 70  syxdump_pos=10:6
EVENT_LED_MATRIX id=22 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 71  syxdump_pos=10:7
EVENT_LED_MATRIX id=23 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 72  syxdump_pos=10:8
EVENT_LED_MATRIX id=24 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 73  syxdump_pos=10:9

# status digits
EVENT_LED_MATRIX id=39 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 75  syxdump_pos=11:1
EVENT_LED_MATRIX id=40 led_matrix_pattern=LcDigit  type=CC chn= 1 cc= 74  syxdump_pos=11:0

2

# for “Common Anode” set inverted_row=1 and inverted_sel=1



Gruss, Thorsten.

3

Dann ist es Aus und Zeigt nichts.

4

Sendest du die richtigen MIDI-Daten an den Core?

5

Im Cubase Mackie Protokol

Im NG  0x14 Mackie Control

6

War meine Annahme denn richtig, dass Du LED Digits mit einer gemeinsamen Anode verwendest?

Dass Du die Shift-Register Positionen ebenfalls anpassen musst ist klar, oder?



Falls Du nicht weiterkommst, wuerde ich Dir empfehlen, die DOUTs mit den LED Digits erstmal direkt an das Core Modul anzuschliessen, und die Digits bspw. mit diesem .NGC File zu ueberpruefen: http://svnmios.midibox.org/filedetails.php?repname=svn.mios32&path=%2Ftrunk%2Fapps%2Fcontrollers%2Fmidibox_ng_v1%2Fcfg%2Ftests%2Fleddig1.ngc



So kannst Du mit verringerter Komplexitaet die passende DOUT_MATRIX Konfiguration herausfinden.



Gruss, Thorsten.

7

Also Ich habe es so Ausporbiert

EVENT_LED_MATRIX id=1 LcDigit  eingestellt und gibt mir ein (A) aus. Wenn auf gestellt(0) dann ganz Aus

EVENT_LED_MATRIX id=3  Digit1   eingestellt und gibt mir ein (1) aus  (0) =0

vieleicht ein Problem beim Dumpen ???



Control five LED Digits to output 7bit values

RESET_HW

LCD “%CLED Digit Demo 2”

HW definitions for “Common Cathode” Digits

see also http://www.ucapps.de/midibox_ng/mbng_led_digits_5x7bit.pdf

DOUT_MATRIX n=1 rows=8 sr_dout_r1=1 inverted_row=1 mirrored_row=1 sr_dout_sel1=2 inverted_sel=1
DOUT_MATRIX n=2 rows=8 sr_dout_r1=3 inverted_row=1 mirrored_row=1 sr_dout_sel1=4 inverted_sel=1

for “Common Anode” set inverted_row=1 and inverted_sel=1

if the segment connections are mirrored, set mirrored_row=1

the digits are accessible with:

first matrix: LED_MATRIX:1 … LED_MATRIX:8

second matrix: LED_MATRIX:17 .. LED_MATRIX:24

First Value (3 digits) received via CC#16

EVENT_LED_MATRIX id=1 fwd_id=LED_MATRIX:2 led_matrix_pattern=LcDigit  fwd_to_lcd=1 type=CC chn= 1 cc= 16 lcd_pos=1:1:2 label=“1:%3d%B”
EVENT_LED_MATRIX id=2 fwd_id=LED_MATRIX:3 led_matrix_pattern=Digit2
EVENT_LED_MATRIX id=3                                      led_matrix_pattern=Digit1

8

Ich habe es so versuch

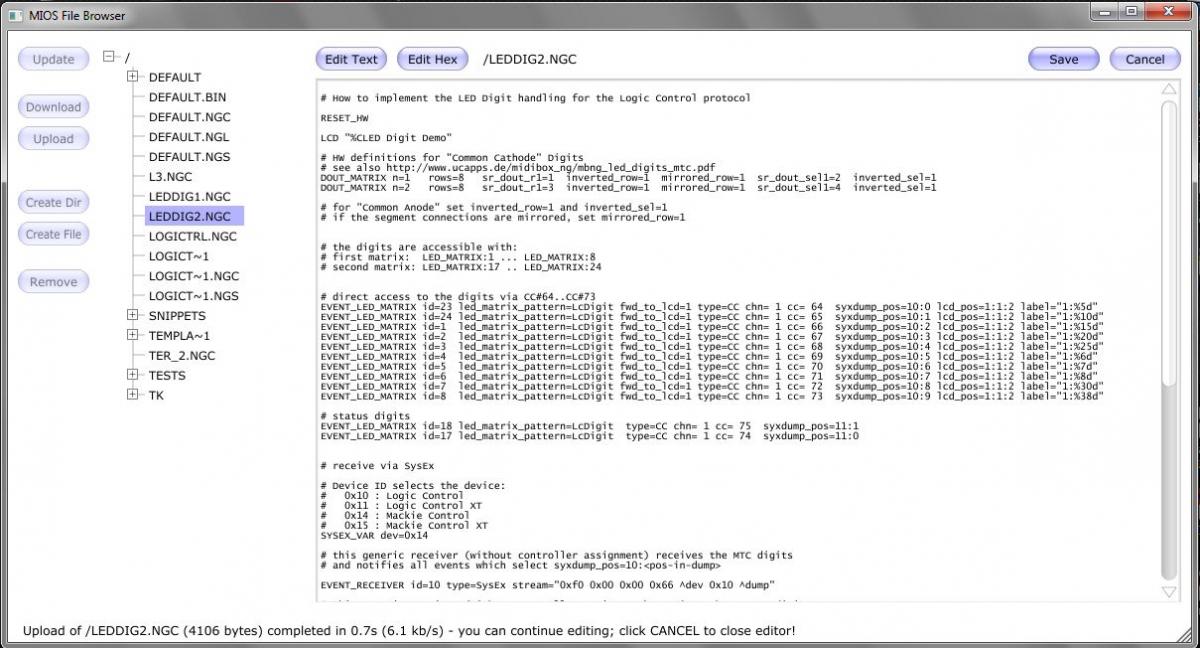

post-5218-0-57781100-1391265706.jpg1200×648 109 KB

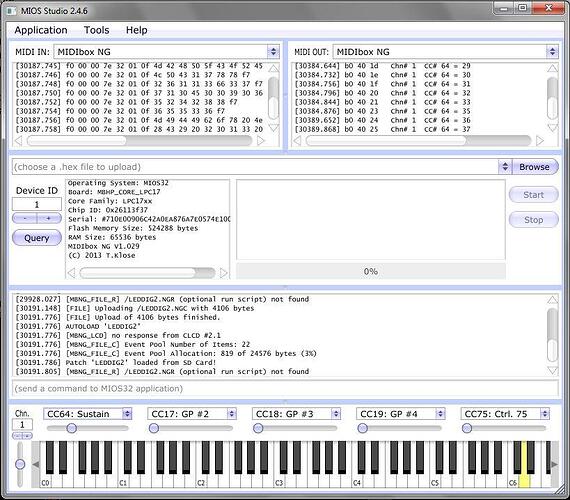

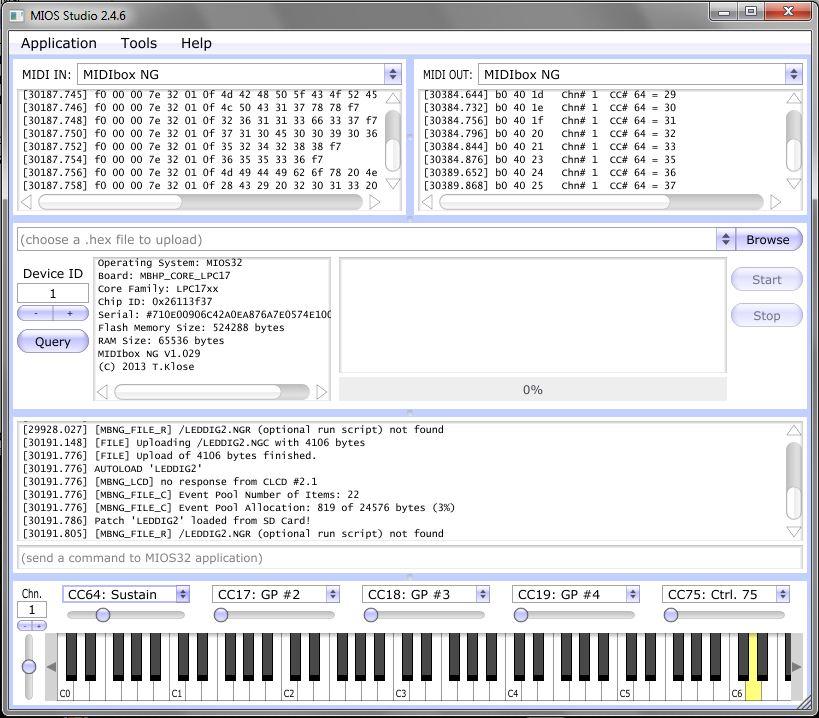

Wenn ich CC64 mit hand verstelle Funstes

post-5218-0-38783900-1391266088.jpg819×718 120 KB
post-5218-0-39526000-1391266112.jpg1200×900 108 KB





Ãœber cubase scheint nichts zu kommen

post-5218-0-19599900-1391266204.jpg1200×900 95.2 KB

9

Es fehlt noch der SysEx string fuer die MTC digits:

# this generic receiver (without controller assignment) receives the MTC digits
# and notifies all events which select syxdump_pos=10:<pos-in-dump>
EVENT_RECEIVER id=10 type=SysEx stream="0xf0 0x00 0x00 0x66 ^dev 0x10 ^dump"

Gruss, Thorsten.

10

Ich habe es mir schon gedacht das Du das sagst.  :happy:

 Aber er ist drin

post-5218-0-25273900-1391285254.jpg1200×960 139 KB

So wie im Ersten Post

11

Hast Du schonmal versucht, den SysEx string direkt von MIOS Studio aus zu senden (mit dem SysEx Tool)?

Damit kannst Du sicherstellen, dass er richtig verarbeitet wird.



Falls das klappt, weisst Du, dass Cubase den String offenbar nicht sendet…



Gruss, Thorsten.

12

Ich hoffe das ist richtig

Gesendet:  f0 00 00 66 14 10 00



Receive: f0 00 00 7e 32 01 0d 40 5b 4d 49 4f 53 33 32 5f 4d 49 44 49 5f 52 65 63 65 69 76 65 5f 48 61 6e 64 6c 65 72 5d 20 54 69 6d 65 6f 75 74 20 6f 6e 20 70 6f 72 74 20 30 78 31 30 0a 00 f7

post-5218-0-81062600-1391318850.jpg1200×900 114 KB



13

Es fehlt u.A. die abschliessende F7, probiere mal:

f0 00 00 66 14 10 70 71 72 73 74 75 76 77 f7

Gruss, Thorsten.

14

Hups  :whistle: .

Jetzt habe ich mal zahlen stehen.

post-5218-0-70531400-1391344249.jpg1200×900 109 KB

Frage:

im Sysex 70 71 usw ist das jetzt vom Cubase ?



15

Du hast also die richtige Konfiguration fuer die LED Digits gefunden.

Der naechste Schritt ist nun, diese in das logictrl.ngc template zu uebertragen, sowie die shift register nummern (sr_dout_r1 und sr_dout_sel1) an Deine Hardware anzupassen.



Danach kannst Du nochmal den SysEx-Befehl senden, um sicherzustellen, dass die Anpassung richtig war.



Und dann sollte es auch mit Cubase funktionieren.



Gruss, Thorsten.
