Various odd bits

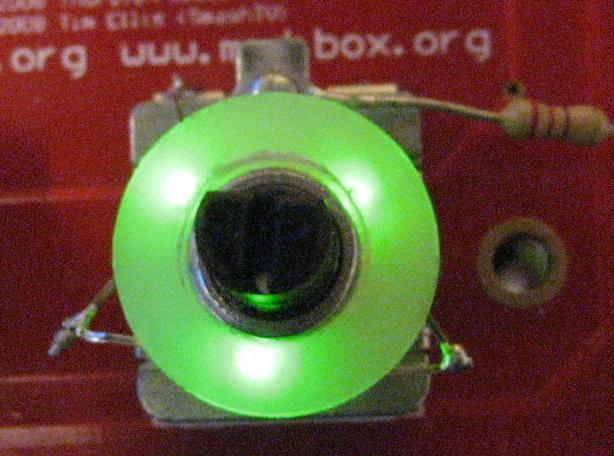

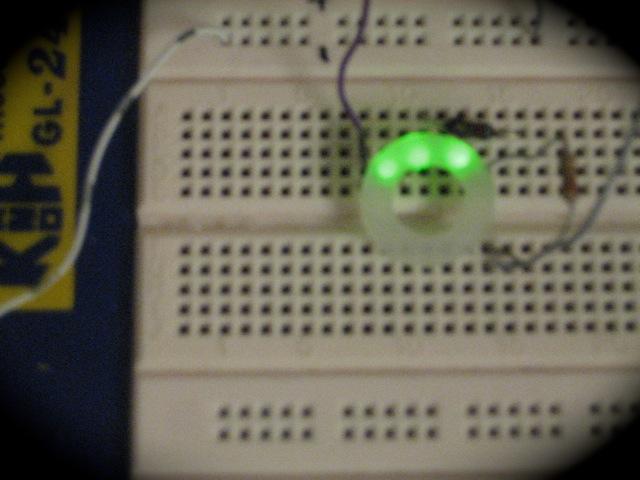

Testing encoder LEDs through the opal washers.

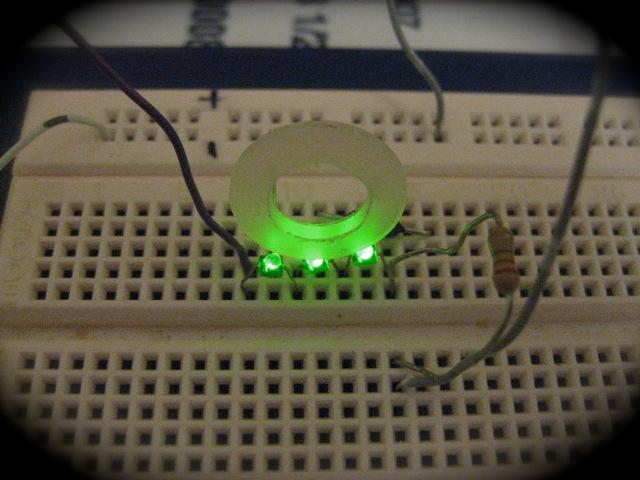

Washer LED bleedthrough?

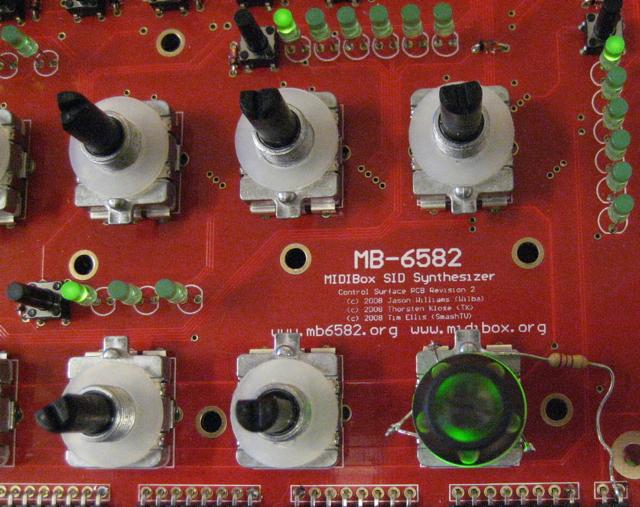

Now smeared using the washer as a diffusor
End result with smearing…
9HE Panel

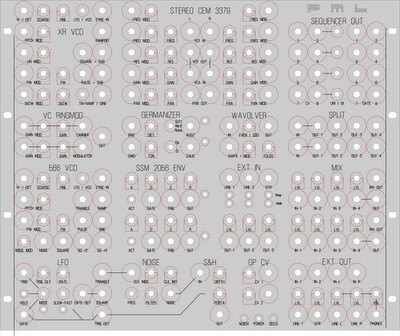

Getting close to sendoff. Outlines of components are shown. This mockup got printed and real knobs were put in place to check finger clearance.
The component outlines are the round circles around the holes. This way we can ensure that everything fits even on the backside.

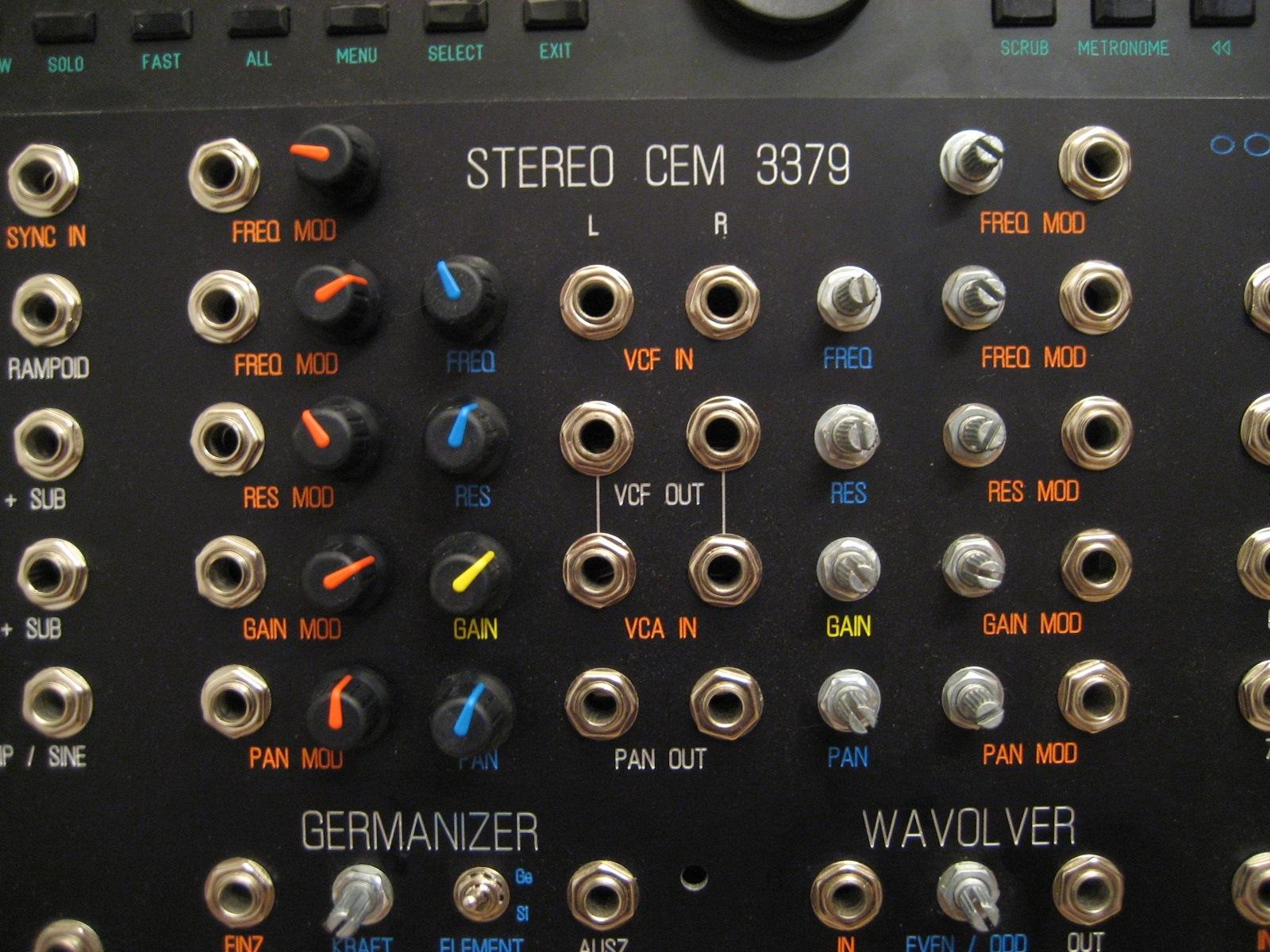

The Germanizer (stereo Germanium distortion) was recently completed and tested. Now the fun of checking that all controls are working as intended begins…
2011-09-13 - 1.jpeg

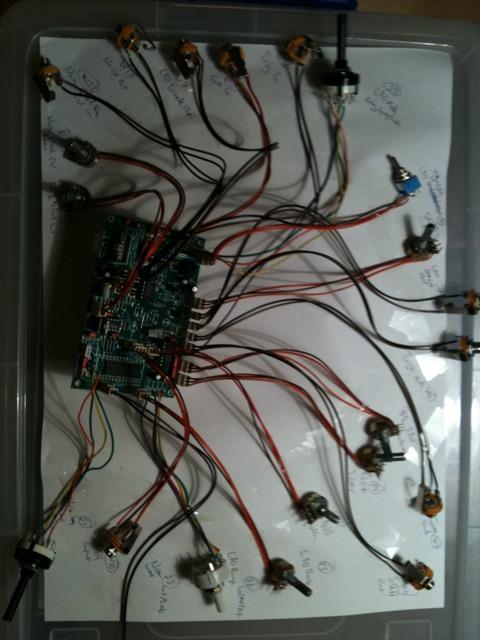

Thomas Henry/Fonik Super Controller PCB and parafernalia for the modular. The FSM (Flying Spaghetti Monster) likeness was unintentional. His noodly ways manifest themselves in the strangest ways…
This and much more will be slaved to the AoutNG and under control by the MB-SEQv4 that sits on top of the 9U of analog mayhem.
The SCM did work sans too many hitches, no animal cruelty was used during the testing. Fully vegan this stuff (this time around).
This is also the reason why my experiments with the 6582OLED are on hiatus.

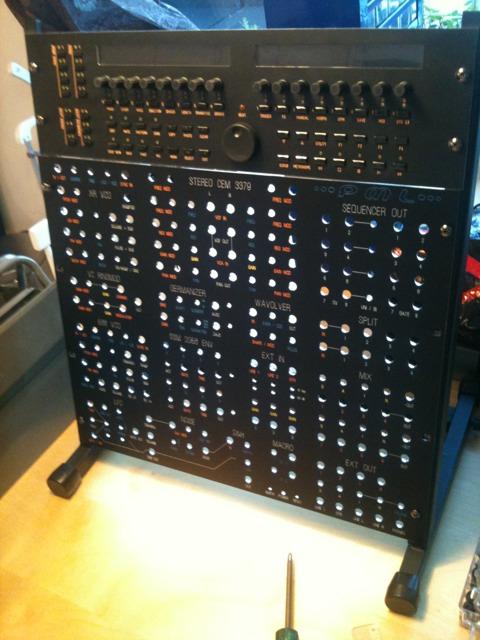

Dummy mounting of modular synth panel and MB-SEQ

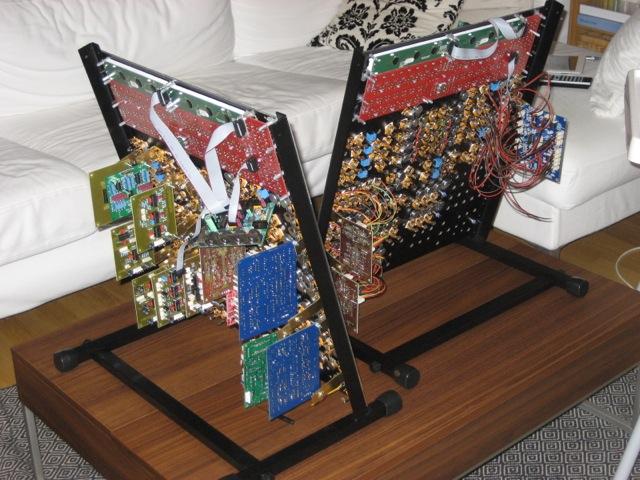

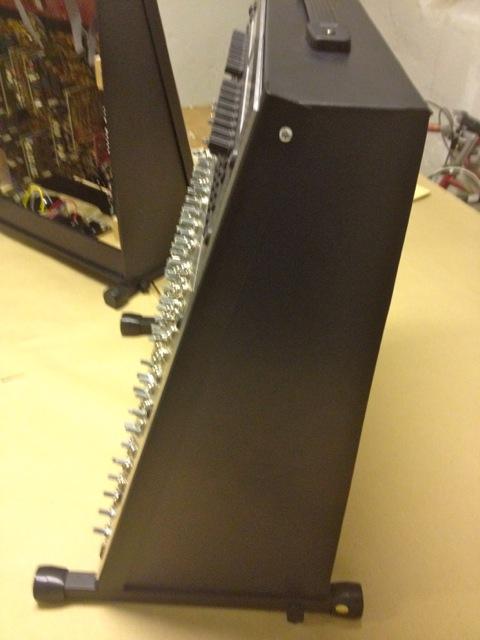

Just testing racking the monster.
Science! :sorcerer:

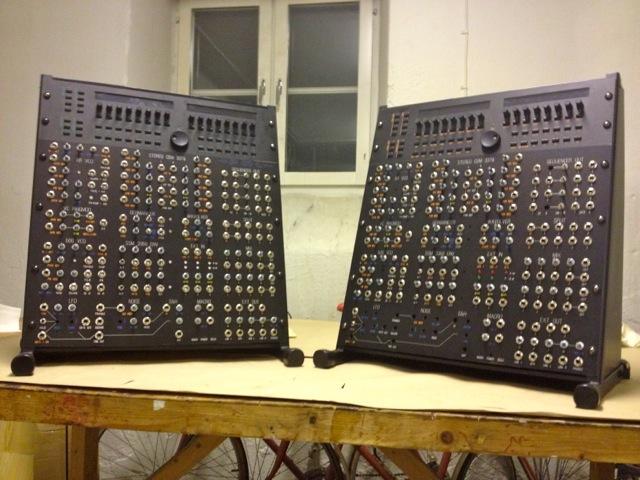

Twice the fun / double the trouble

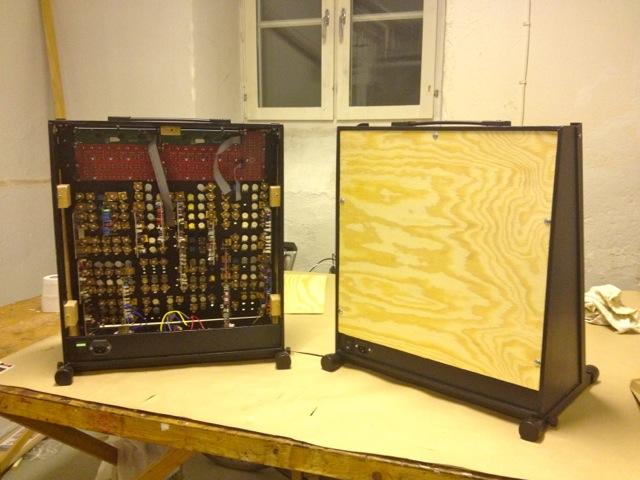

Building two modulars, one for me. All the electronics mounted on one of them. The other has most of the front panel wiring soldered. Add bottom plate w/ PSU plus the cabinet holding the Core32, SD-card and ETH PCB (not pictured).
More work on the cabinet to follow later.
Watch your bass-bins!
The woodwork part of the case is done. After getting clad with black foil the new working name was temporarily set to Black Satan. Darth Vader stopped by for a cup of tea and wanted one.
Monolith
OMG: Also Sprach Zarathustra started playing and we taught ourselves to use our screwdrivers as weapons. The apemen were confused.
Take a peek, why doncha?
Ph’nglui mglw’nafh Cthulhu R’lyeh wgah’nagl fhtagn

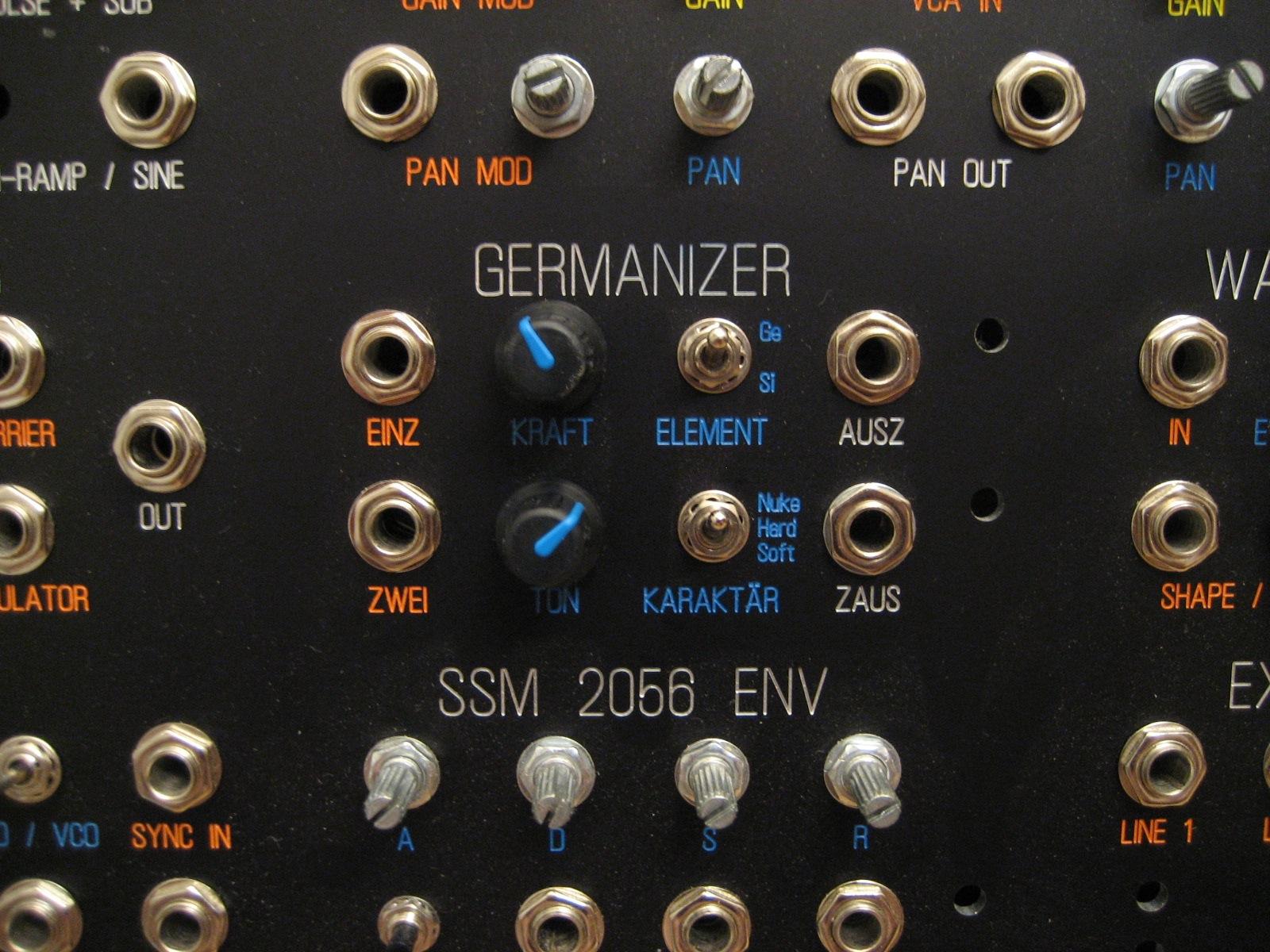

Technodistortionsgerät
This is part of the story. It’s an homage to Deutschland and the Hardfloor-stylee sound. Happy skronking!
But, will it blend?

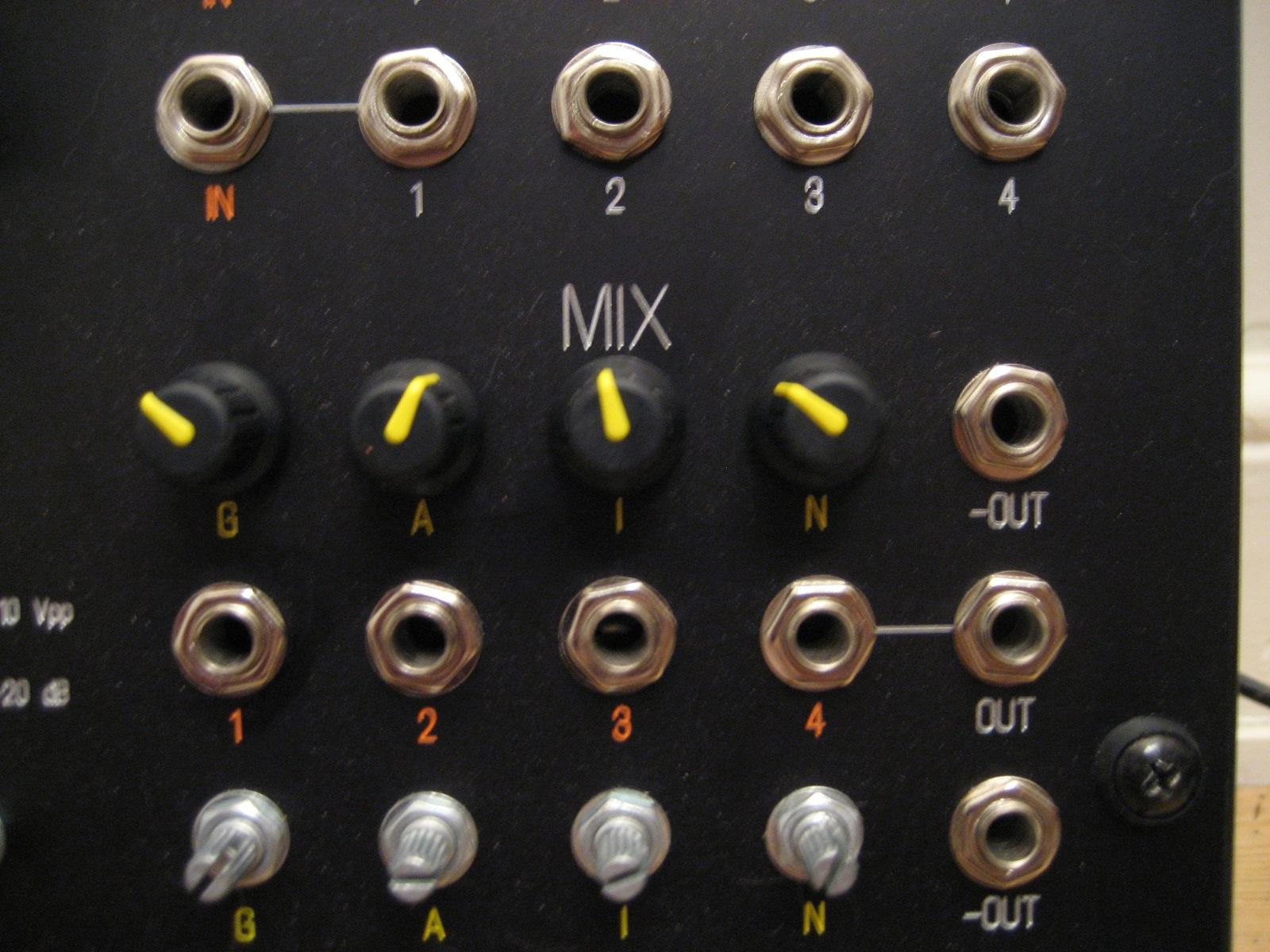

Part of the mixer section. I bet we saved 5 cents on the engraving by writing G A I N but it looks cool in a strange way.
You can haz filter!
You don’t obtain the correct French filter disco feeling without a big whopping filter.
Affinity

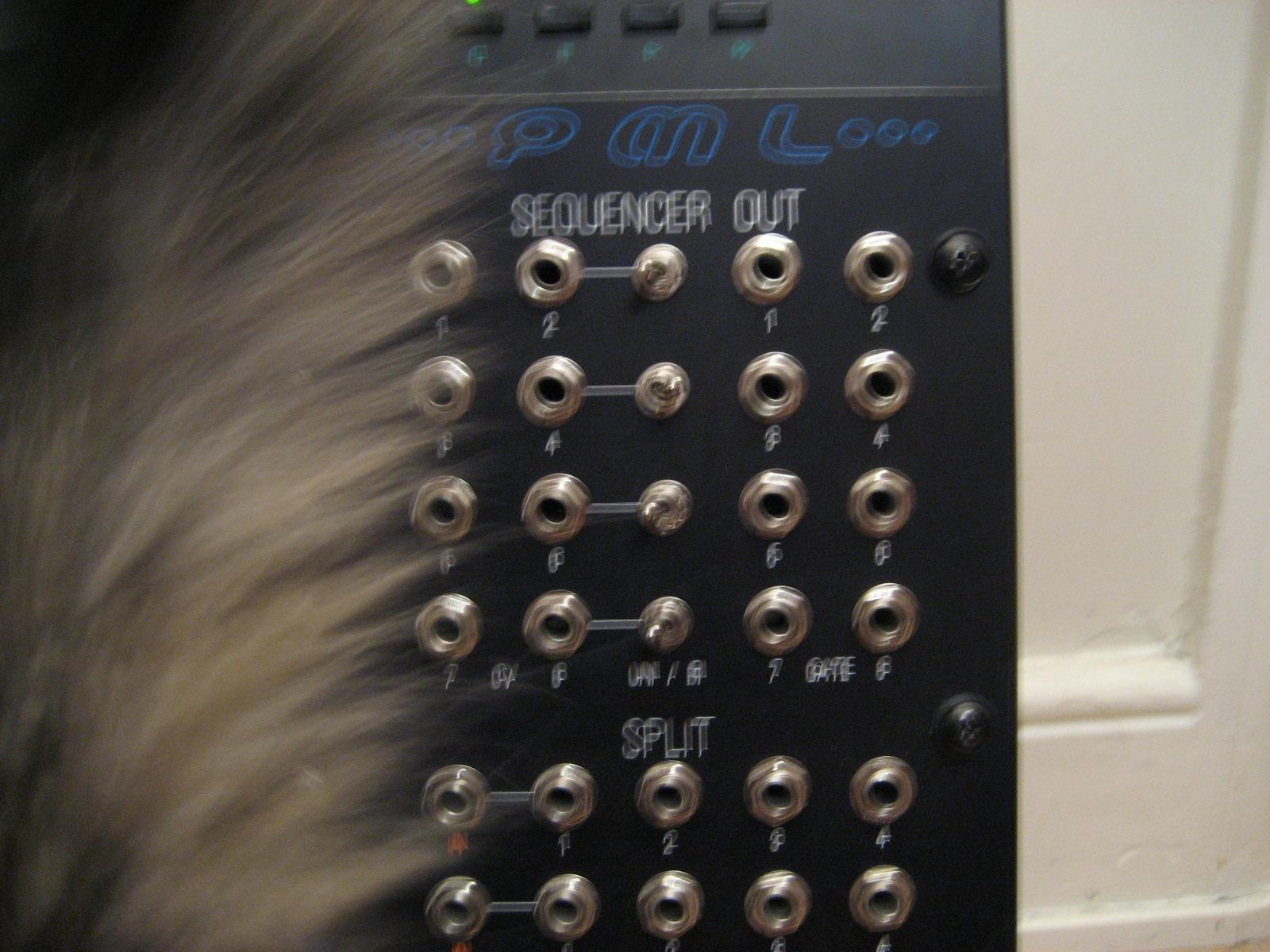

My cat had some affinity to the box while I was trying and failing to take some pics. CV/Gate out section.
Who me, I’m hiding!
In the darkness no one will notice you forgot your tripod… Note to Darth Vader, turn off your breathing mask while hiding in the dark. You don’t fool anyone :getlost:
