Album by johnmx
Gallery category: members-gallery
This is my first MIDIbox project.
Breadboard
First test to check if everything is working OK.
Bottom
The various modules assembled on a single prototype board.
All resistors and capacitors are SMD 0805.
Still missing the audio amplifier section.
Main Board
The main board includes the CORE, DIN, DOUT & AY. Here we can see the pin headers to connect the buttons and LEDs.
All together now
Side view of the assembled setup.

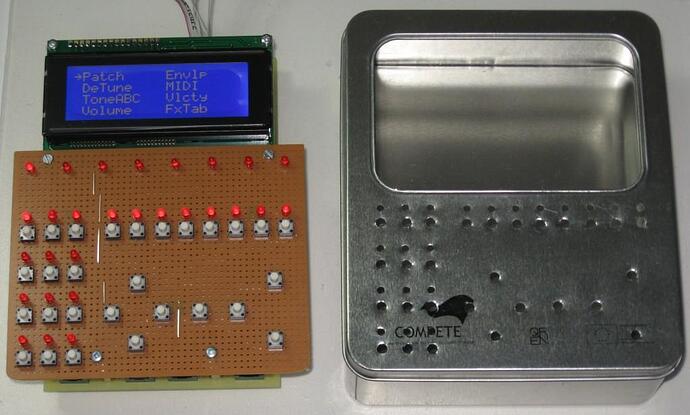

Box
Drilled cover.

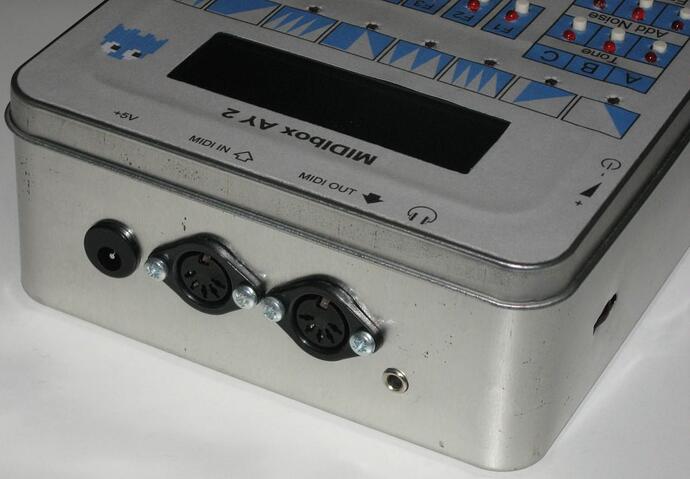

Connectors

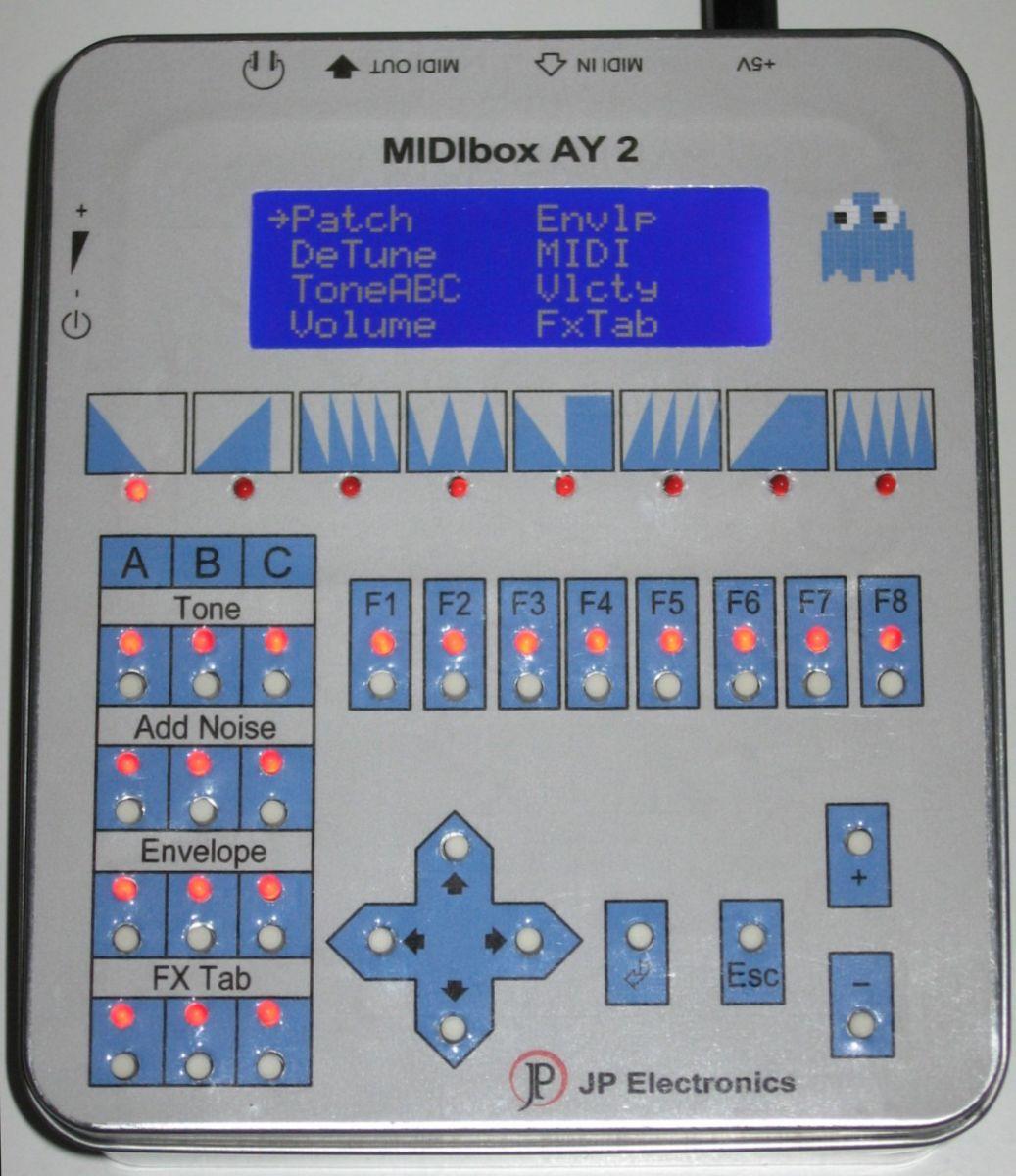

Front panel
Finished product
MBAY V2
Finished product
