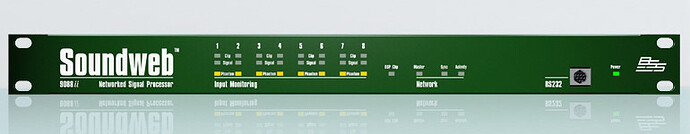

inside BSS - SOUNDWEB 9088 digital crossover/sound management

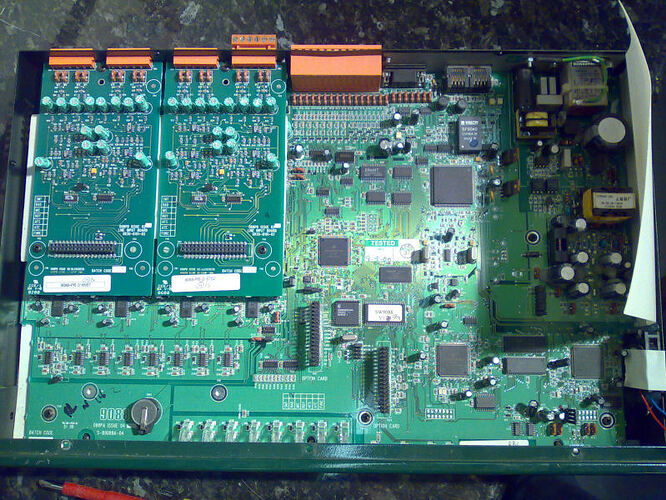

Heres a hastily captured rundown on the hardware of a bss soundweb digital sound management & crossover unit.

not on the usual high quality camera unfortunately, only had phone on me.

chips on the conversion side are pretty nice tbh :slight_smile:

then again id be pretty pissed if they cut corners at that price; mind i dont use these personally.

chips are:

* AKM - AK5392

http://www.asahi-kasei.co.jp/akm/en/product/ak5392/ak5392_f01e.pdf

Enhanced Dual Bit 24-Bit ADC

Sampling Rate: 1kHz to 54kHz

Full Differential Inputs

S/(N + D): 105dB

Dynamic range: 116dB

S/N: 116dB

* CRYSTAL - CS4390

http://www.cirrus.com/en/products/pro/detail/P32.html

24-Bit, 48 kHz Stereo D/A Converter

Sampling Rate: 1 KHz to 50 kHz

Dynamic range: 106dB

S/N: 115dB

* CRYSTAL - CS3310

http://www.cirrus.com/en/pubs/proDatasheet/CS3310_F1.pdf

Stereo Digital (analog domain) Volume Control

Dynamic range: 116dB

thd/n: 0.001%

0.5db step size

127db total trim range

* ANALOG DEVICES - OPA275

http://www.analog.com/static/imported-files/data_sheets/OP275.pdf

Dual Bipolar/JFET, Audio Operational Amplifier

Low Noise: 6 nV/Hz

Low Distortion: 0.0006%

High Slew Rate: 22 V/s

Wide Bandwidth: 9 MHz

* ANALOG DEVICES - ADG411

http://www.analog.com/static/imported-files/data_sheets/ADG411_412_413.pdf

Precision Quad analog SPST Switches

* 2X MOTOROLA - XC56303PV80

http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=DSP56303&fsrch=1

24 BIT DSP, NOW DISTRIBUTED BY FREESCALE; PART DISCONTINUED BUT RELATED CHIPS HERE:

assumed to be:

80 mhz

24bit with 56bit capable barrel shifter.

* CUSTOM ASIC - SOUNDWEB

* and other support chips i couldnt be asked to document.

Artesia what phone do you use for those nice pictures?

nokia e90 communicator (pda, phone, web device) ..it can take photos of fine newspaper print whilst remaining perfectly readable; its excellent for a phone.. but ive got a canon 20d which im comparing it to.. which is a little unfair on it i suppose :wink:

Just saw some Asahi ADC/DAC in a synth I took apart and stumbled upon this thread…

http://www.asahi-kasei.co.jp/akm/en/product/ak4384/ak4384.html

http://www.akm.com/prodfolder-adc.asp?p=AK5358A
