How Do You Read The Chart on Ucapps (order and capacitor trouble)

Parts Questions
1

Hi. I’m not an engineer, so I was wondering if someone could help me…

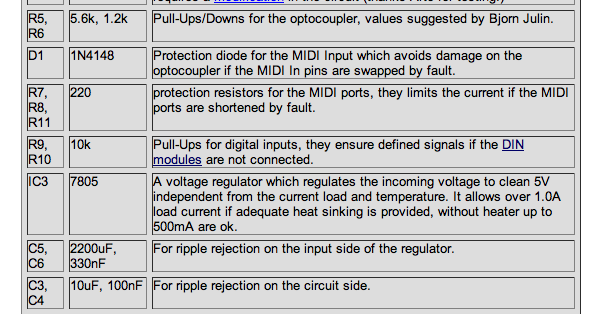

I’m looking at the section of the CORE module components chart on ucapps main page that I’ve attached a pic of here, and I’m a little confused where in the right two columns there are two values separated by comma.

In the “C3, C4” line for example, it says “10uF, 100uF”. This seems to suggest:

C3 is where you put -> 10uF

C4 is where you put -> 100uF

However, on my board (from the kit from Smash TV) C4 has a circle around it that perfectly suggests that green capacitor that says 10uF. Other pairings make more sense the way I’d read it like C5/C6. The shapes line up with that one.

Is this way of reading the chart correct? or does it not go like that? I’d especially love to know which is which for R5/R6 because I really have no intuitive sense for that!  :stuck_out_tongue:

Thank you VERY much!!!

4451ucappschartsnapshotpng92bd0e3d75bac25070ee283c1d2df580
4451ucappschartsnapshotpng92bd0e3d75bac25070ee283c1d2df580594×314 26.8 KB

4451ucappschartsnapshotpng92bd0e3d75bac25070ee283c1d2df580
4451ucappschartsnapshotpng92bd0e3d75bac25070ee283c1d2df580594×314 26.8 KB

2

I’d just follow Smash’s site… well, thats what I did anyway for construction of his boards / kits.

http://www.avishowtech.com/mbhp/mbhp_coreR4d.html

Regards

Mike

3

In the “C3, C4” line for example, it says “10uF, 100uF”. This seems to suggest:

C3 is where you put -> 10uF

C4 is where you put -> 100uF

It doesn’t quite :wink: It says 10uF and 100 n F. That’s a pretty big difference as the 100nF cap is not one of those big, round electrolytic capactitors.
