hackthor's Eurobox SID

MIDIbox Gallery
1

Album by Michael D.
Gallery category: members-gallery

Just taken “do it yourself” literarly :slight_smile: Stuffed a minimal MIDIbox Sid into a “Eurobox”. Not 100% perfect (drilled free-hand), but not bad for the first try.

Includes

  • MIDIbox Core V3
  • MIDIbox SID V2
  • 2x24 LCD (no backlight to safe power from 7805)
  • 9 buttons, 1 rotary encoder
  • MIDI IN and OUT
  • audio out
  • bank stick connector

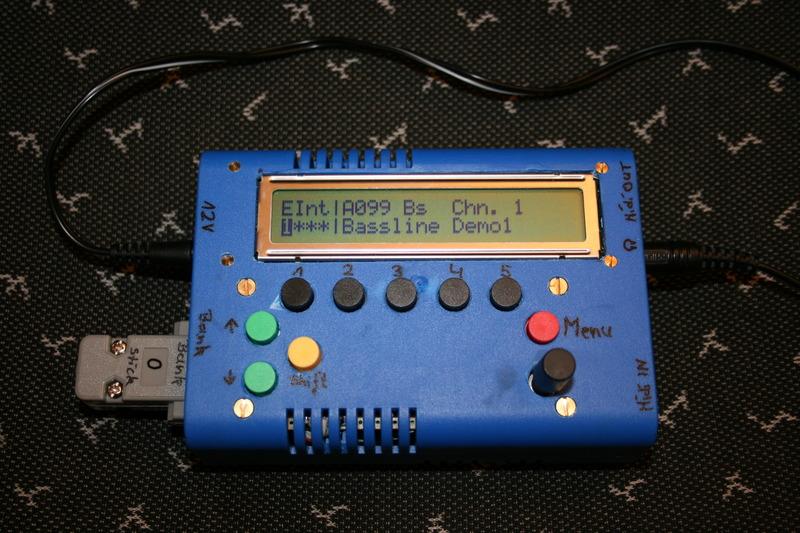

final box

final box
final box800×533 76.8 KB

This is the final box, powered on and playing a sound from the bank stick.

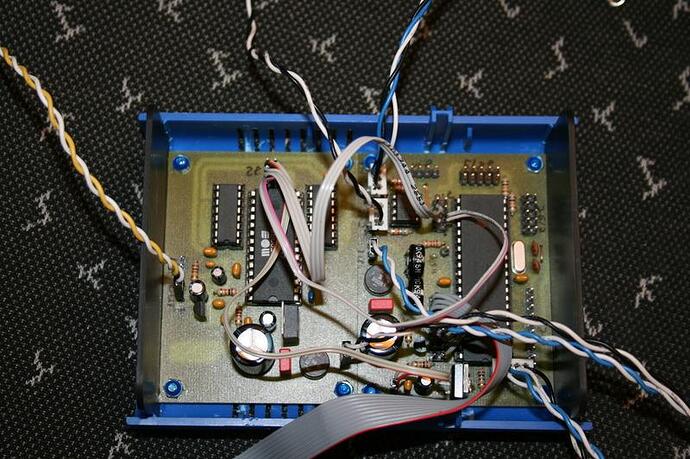

inside the box

inside the box
inside the box800×533 90.3 KB

The 2 boards (Core and SID) mounted on the bottom half.

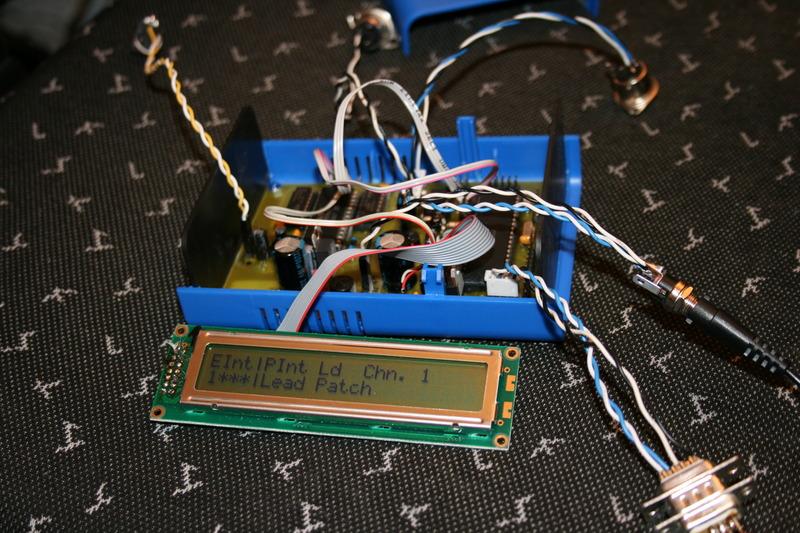

inside the box, powered on

inside the box, powered on
inside the box, powered on800×533 91.1 KB

Yes, it still works after putting it into the box :slight_smile:

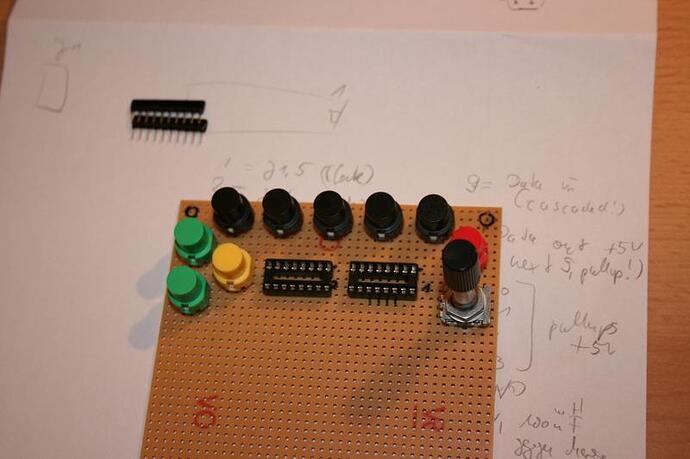

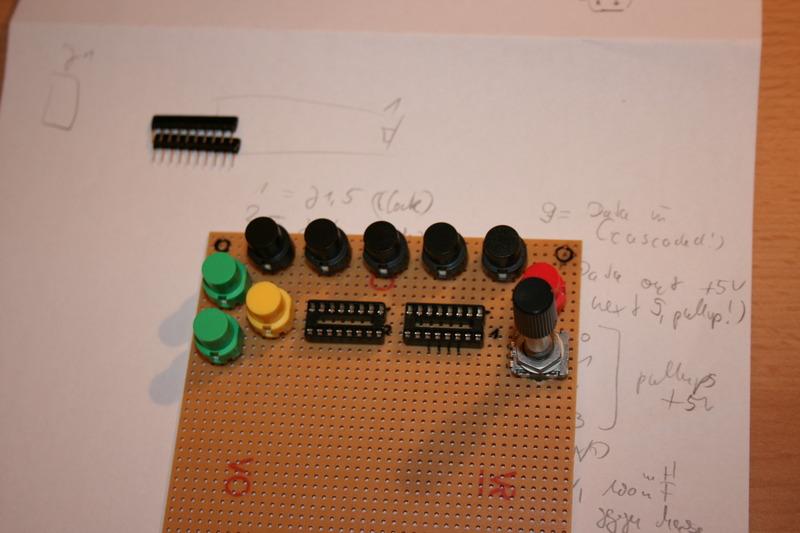

knob layout

knob layout
knob layout800×533 41.5 KB

Layout of the control surface buttons and the encoder.

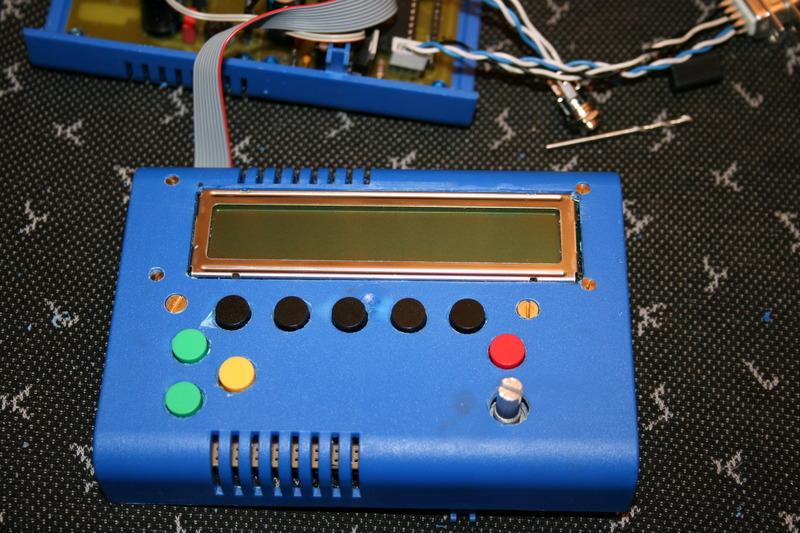

control surface assembled

control surface assembled
control surface assembled800×533 80.5 KB

Yep, fits.

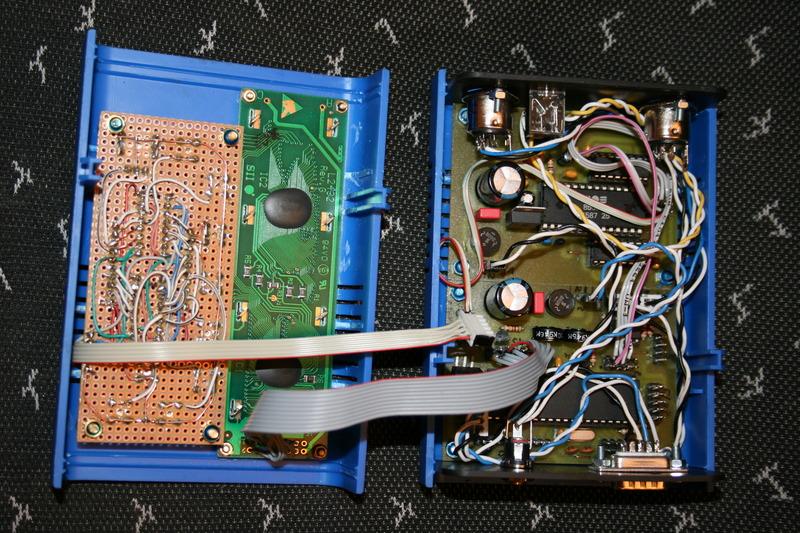

final assembly

final assembly
final assembly800×533 111 KB

All things are on its place, just needed to connect the control plate to the core and close the box.

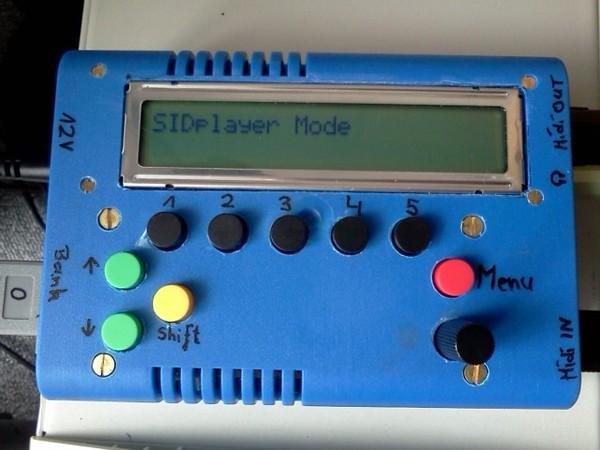

new life

new life
new life600×450 31.8 KB

Yeah! This is what I wanted to have :smiley:

2

Re: final box

Nice work man :smiley:

Where do you get this box?

Regards

Antix

3

Re: new life

nice package :thumbsup:

4

Re: final box

Nice work man :smiley:

Where do you get this box?

Regards

Antix

Thanks :slight_smile:

The box is available in different colors, I got mine from Reichelt (“EUROBOX BL”) and a spare one from Conrad (523117) - just for the case I break anything during the whole drilling and cutting. Other shops may have it too, there seem to be nothing special with it.

ciao

Michael

5

Re: new life

The case looks just like the one i bought from Reichelt for my Arduino Stuff :sorcerer:

6

Re: new life

Yes!!! Looks cool.

7

Re: new life

Nicely done!
