gslug's Midiboxes

MIDIbox Gallery
1

Album by gslug
Gallery category: members-gallery

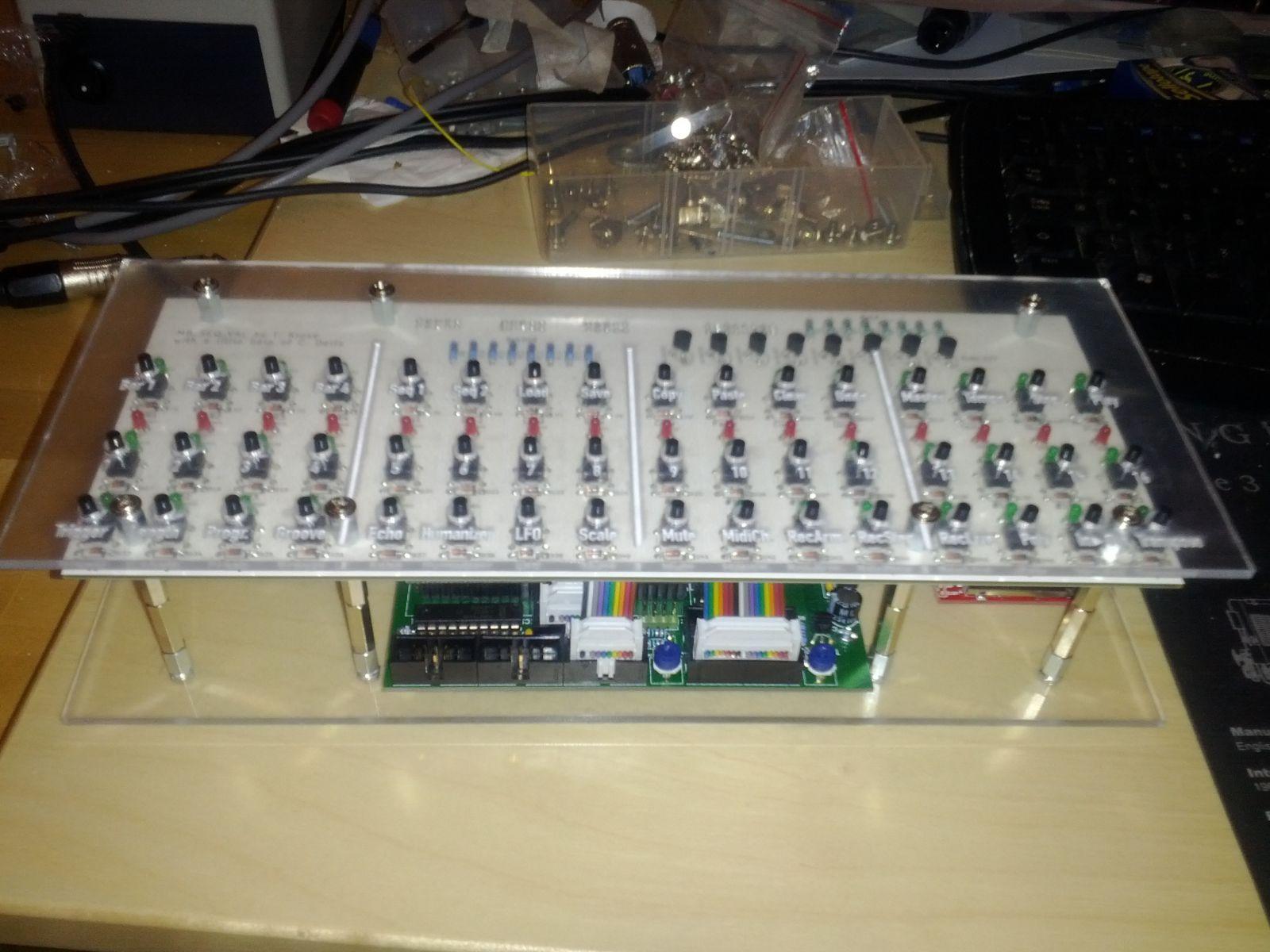

Seq V4L

Seq V4L
Seq V4L1600×1200 172 KB

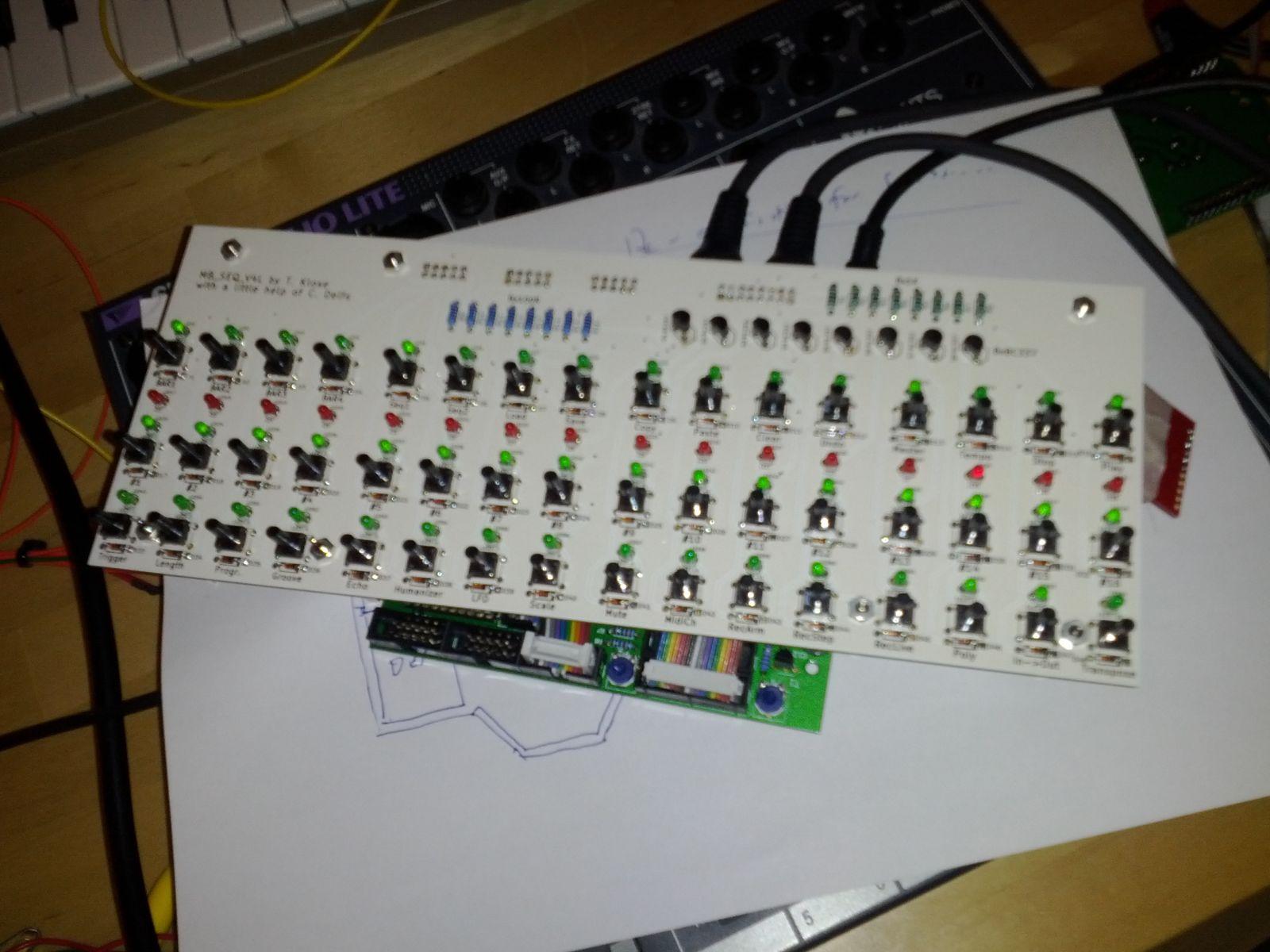

Naked V4L

Naked V4L
Naked V4L1600×1200 161 KB

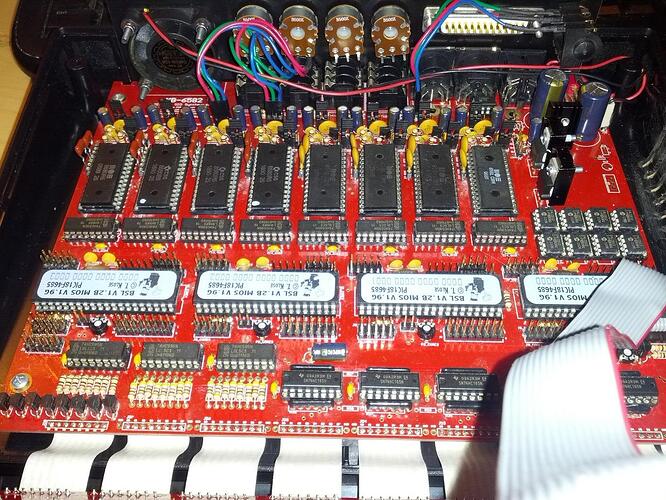

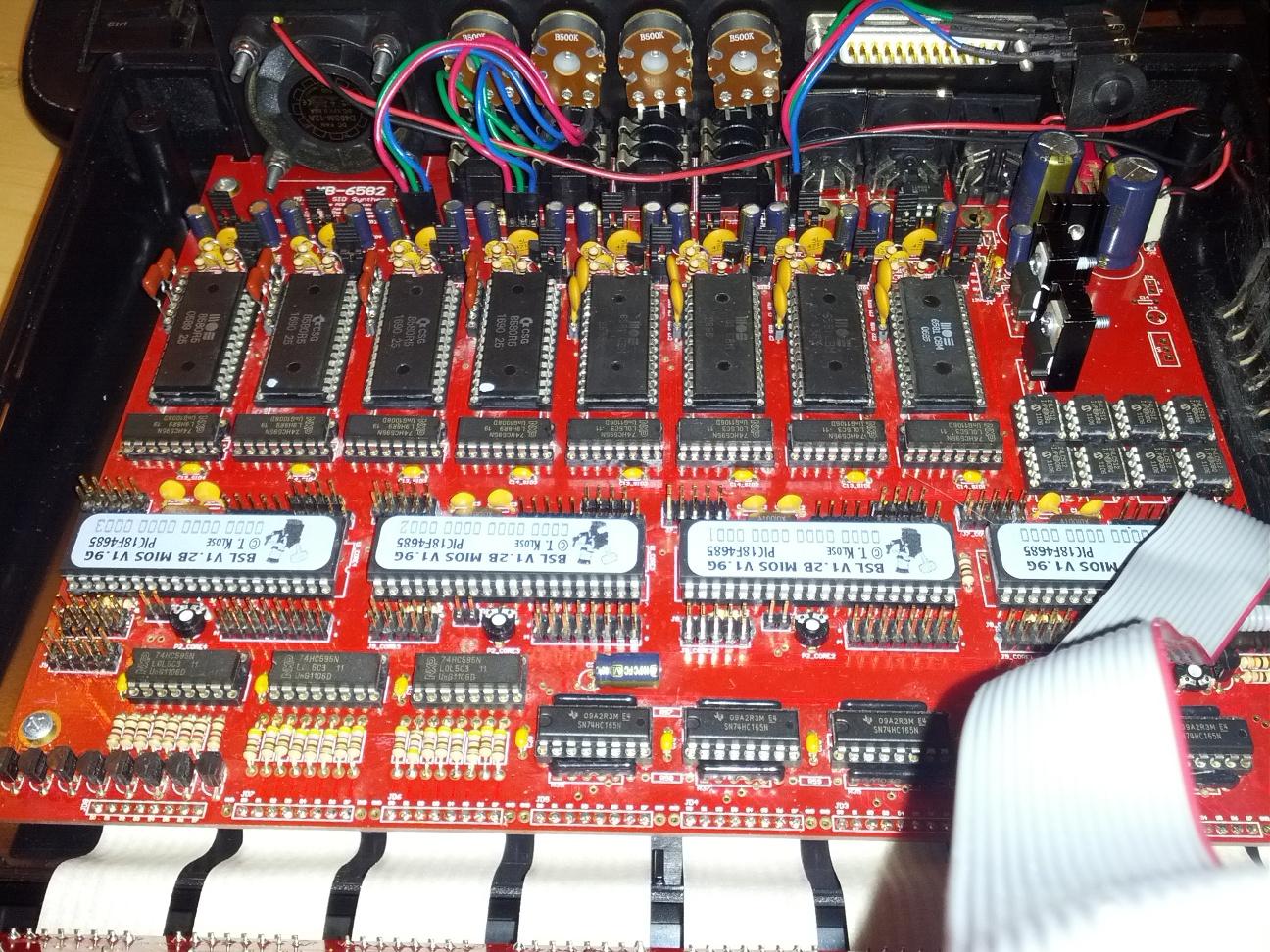

Finally 8 SIDs

Finally 8 SIDs
Finally 8 SIDs1296×972 286 KB

The best part of a year after building my MB-6582 and I have finally installed the last of the SIDs. It has 4x 8580s and 4x 6581s. At some point in the future I plan to build a second one and have one all 8580 and the other all 6581.

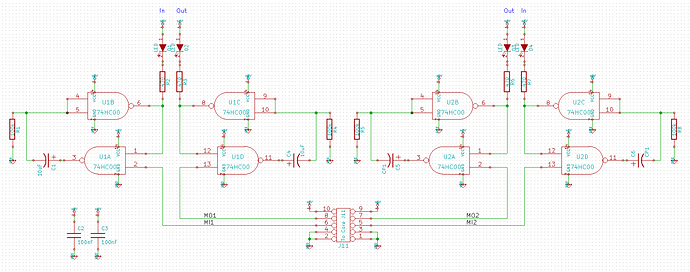

LED Driver

LED Driver
LED Driver1600×631 323 KB

A circuit based on the LTC module, with the sole purpose of providing TX/RX leds.

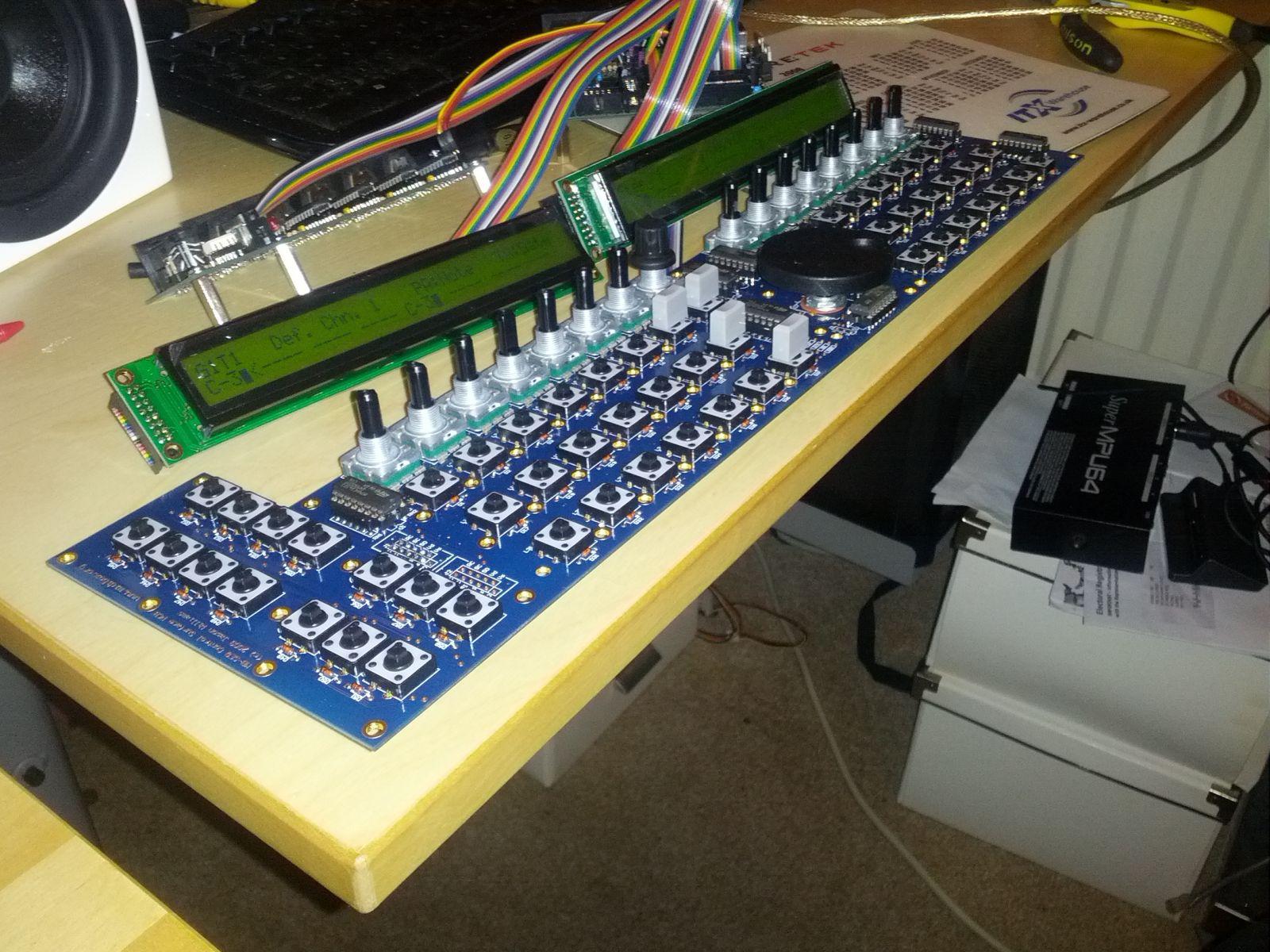

Seq V4

Seq V4
Seq V41600×1200 298 KB

The result of today’s soldering. No LEDs as I haven’t yet got a panel.

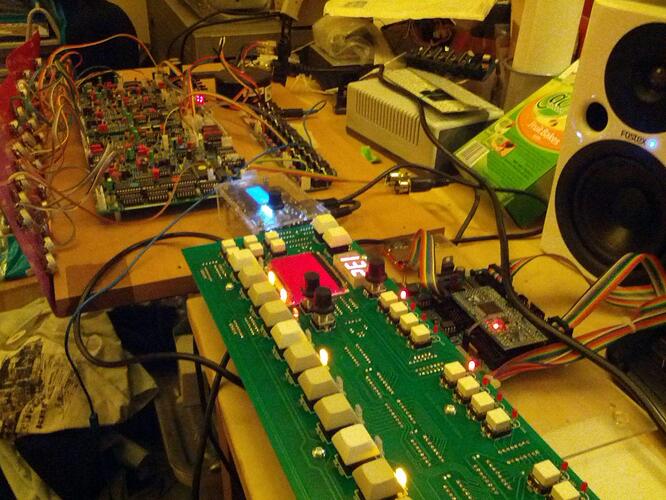

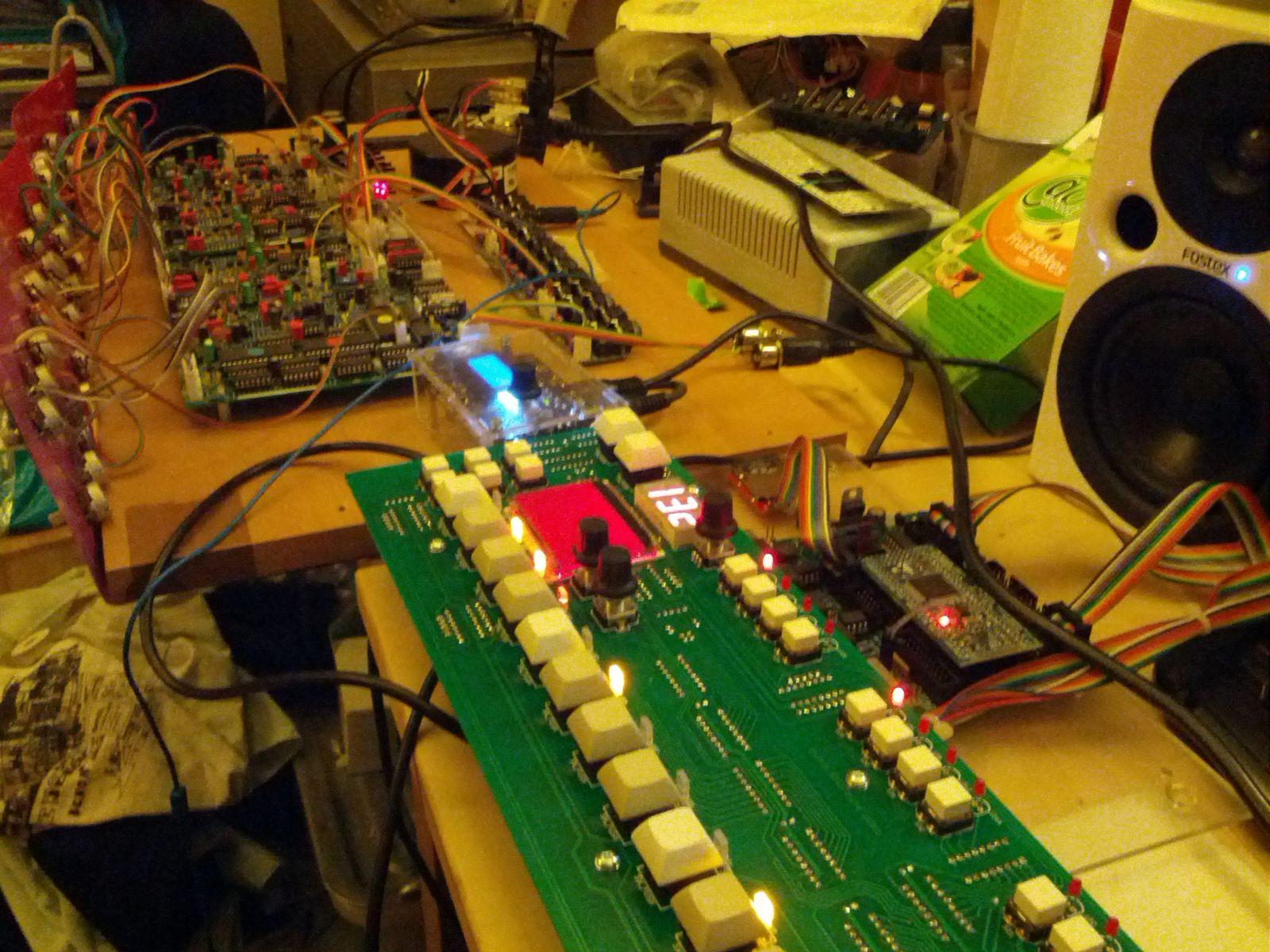

MB909 1

MB909 1
MB909 11600×1200 281 KB

New LCD fitted and it works!

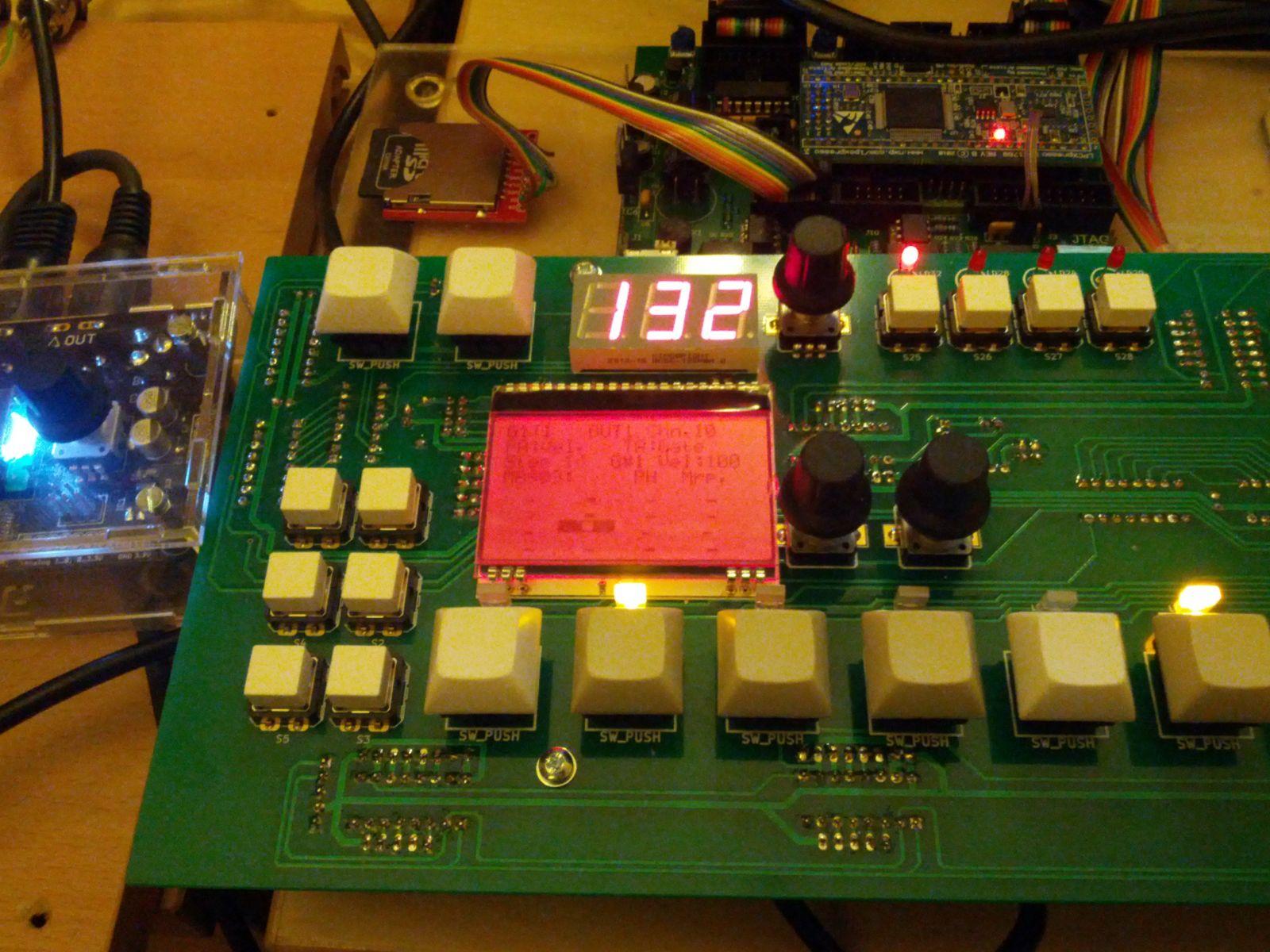

MB909 2

MB909 2
MB909 21600×1200 248 KB

New LCD fitted and it works!

2

Re: Seq V4L

Finished Seq V4L in case.

3

Re: Seq V4L

yeeeeeppppaaaaa !!!

4

Re: Seq V4L

I like!

:thumbsup:

5

Re: Seq V4L

cd_reloaded: Thanks for designing it!

6

Re: Finally 8 SIDs

Congrats! It is always nice to see a fully populated MB6582 :slight_smile:

7

Re: Finally 8 SIDs

Thanks Hawkeye

8

Re: LED Driver

This circuit will operate the NAND gates outside of the input voltage range.Each of the 4 gates on the top half of the drawing will be driven with a negative voltage spike each time the LED is turned OFF.How long it lasts will be a matter of chance and luck.

9

Re: LED Driver

Thanks lylehaze. I need to think about this…:frantics:

10

Re: Seq V4

Looks promising /public/style_emoticons/default/thumbsup.png" alt=“thumbsup.png”> You’ll have tons of fun building and using this I hope.

11

Re: Finally 8 SIDs

If the 6582 had it’s own hash tag it would be #awesomebox /public/style_emoticons/default/sorcerer.png" alt=“sorcerer.png”>

12

Re: Seq V4

Sexy :smile:

13

Re: Seq V4

waiting for your live performances . looks great !

14

Re: Seq V4

Nice one :smiley:

15

Re: Seq V4

Thanks guys!

16

Re: Finally 8 SIDs

Jojjelito: I agree. Thinking about building a second one now so that I can have one MB-6582(well 8580) and one filthy MB-6581.

17

Re: Seq V4

is the circuit board from smash-tv?

18

Re: Seq V4

is the circuit board from smash-tv?

It is indeed.
