FrontPanel for C64 / Display of 40x2 and 8x8 LED matrix?

alchemist · May 7, 2014, 8:36pm

Hello,

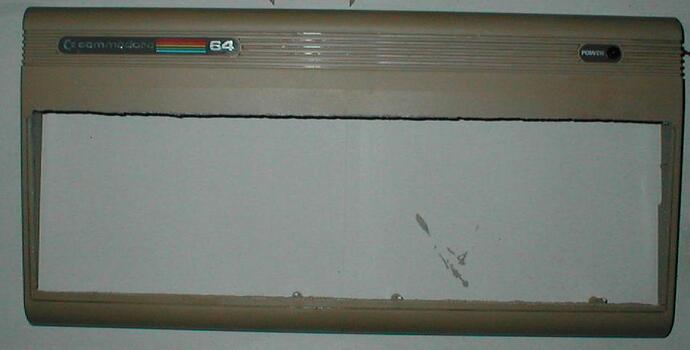

I would like create a Control Surface based on a C64 like this:

I have a 40x2 display in place of the 20x2, and I would like to have a 8x8 matrix, as the latest SID application supports them.

Is there a modified frontpanel template with that setup?

If not, I will edit the original one and provide the modification.

alchemist · May 21, 2014, 1:09pm

I will try something this evening.

alchemist · May 21, 2014, 7:56pm

Hello,

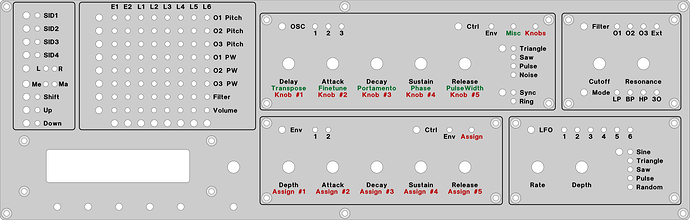

I have tried this:

I will use a single plate for the 2 upper left panels.

What do you think?

alchemist · May 30, 2014, 7:33pm

Hello,

Can the surface be a little bit higher, so that I add 1 row of LEDs?

Looking at the detailed photos, I think I can take more place:

T.K · June 1, 2014, 5:16pm

Yes, this should be possible.

Best Regards, Thorsten.

alchemist · June 1, 2014, 7:16pm

Great! I will thus sighty raise the height of the control panel, so that the borders of the “function groups” will be again more aestethic

:rolleyes:
