Figure 8, C7 , shotgun socket wanted.

Parts Questions
1

Hey all,

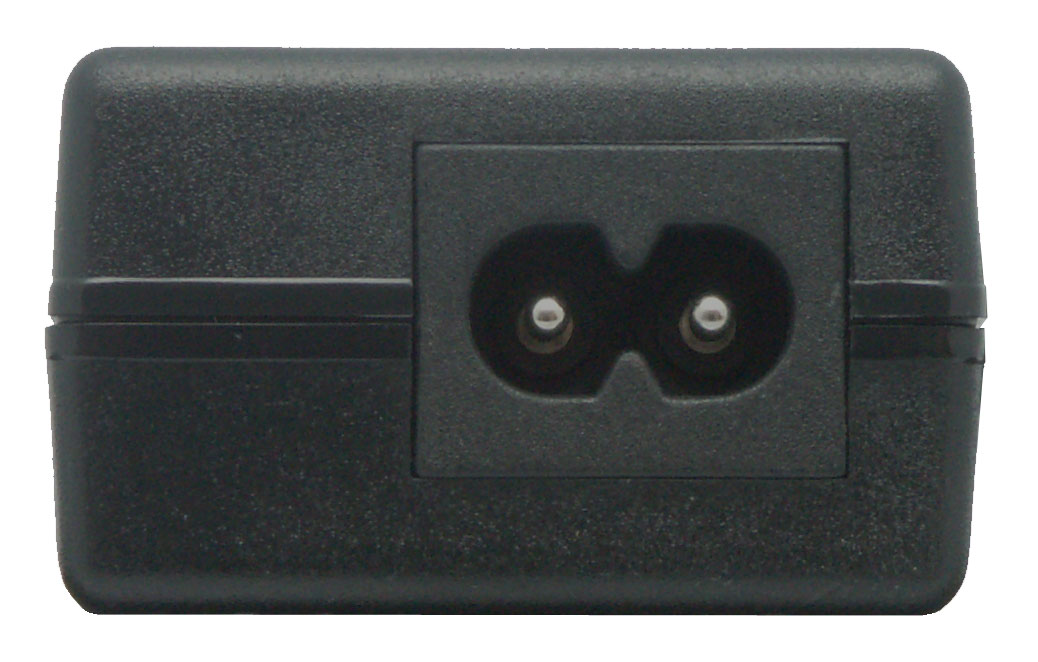

I’m trying to see if such a part exists.. I want a panel mount IEC C7 socket.. I know them as Figure 8 connectors.

I was hoping for something local (Australia) but I’m prob gonna have to broaden my search.

Actually, I’m now thinking that something like this would not be in panel mount? It for supplying power to a plastic enclosure / old keyboard.

Kind regards.

5305Figure8jpg4a78839827910346c458d0af5655dc64
5305Figure8jpg4a78839827910346c458d0af5655dc641038×662 91 KB

5305Figure8jpg4a78839827910346c458d0af5655dc64
5305Figure8jpg4a78839827910346c458d0af5655dc641038×662 91 KB

2

bah…

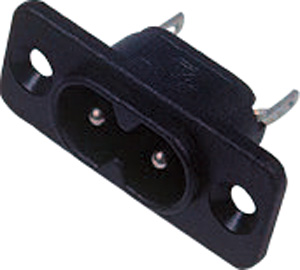

found em, not locally.. but they exist.

http://www.maplin.co.uk/searchtemplate.asp?criteria=POWER%20CONNECTOR%20FIGURE%208

5307Figure8jpg4a78839827910346c458d0af5655dc64
5307Figure8jpg4a78839827910346c458d0af5655dc64300×270 18.7 KB

5307Figure8jpg4a78839827910346c458d0af5655dc64
5307Figure8jpg4a78839827910346c458d0af5655dc64300×270 18.7 KB

3

If you find it at Mouser or Digikey, I’ll import it for you when I make my next order from them :wink:

4

woo hoo!

Friends in high places.

http://au.mouser.com/Search/ProductDetail.aspx?qs=sGAEpiMZZMv1TUPJeFpwbubHkr%2fbe%252b7anxWzDZ%252bNXe4%3d

6160.0004

Regards

Mike

5

Pft… I’m not in a high place at all… I just worked out the best way for me to get all those cool parts from Mouser is for them to hitch a ride on some bulk orders.

You got lucky - I was able to add it to the Mouser order I did at 3 AM this morning. You might get even luckier and have it in your hand next week.
