Midibox stuff by daemonik

---

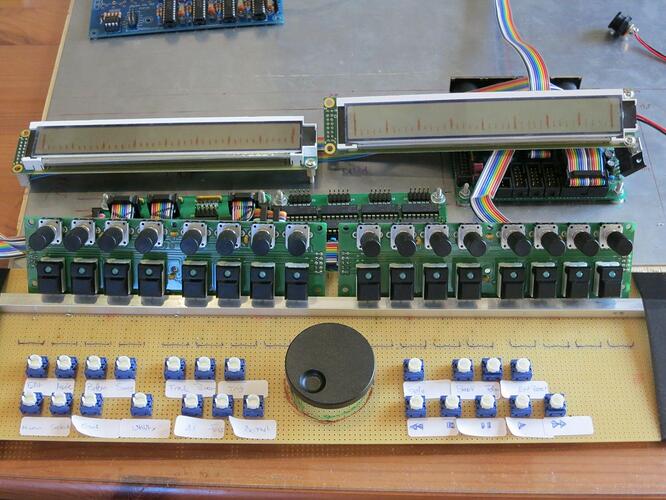

daemonik MIDIBOX SEQV4 1

Encoders and Step-Buttons on custom PCB,

• MEC Buttons on Veroboard

daemonik MIDIBOX SEQV4 2

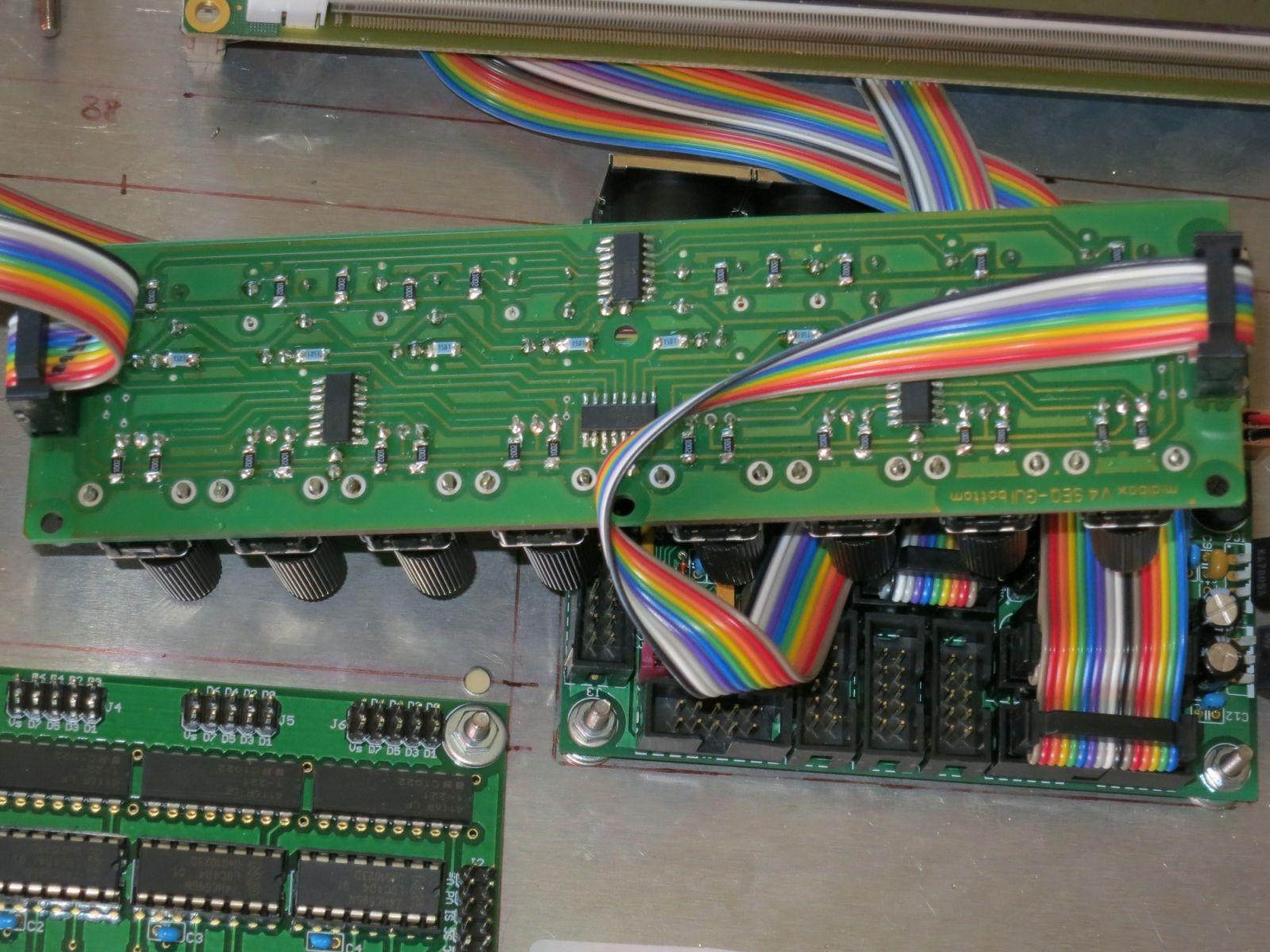

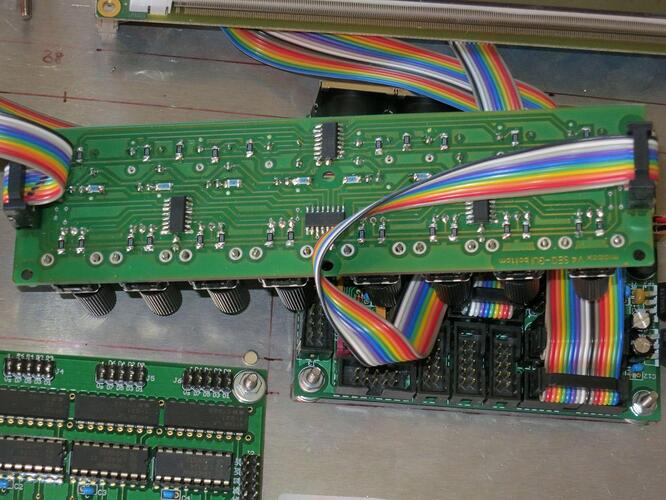

custom Encoder and Step-Button PCB, rear-side

daemonik MIDIBOX SEQV4 3

daemonik MIDIBOX SEQV4 4

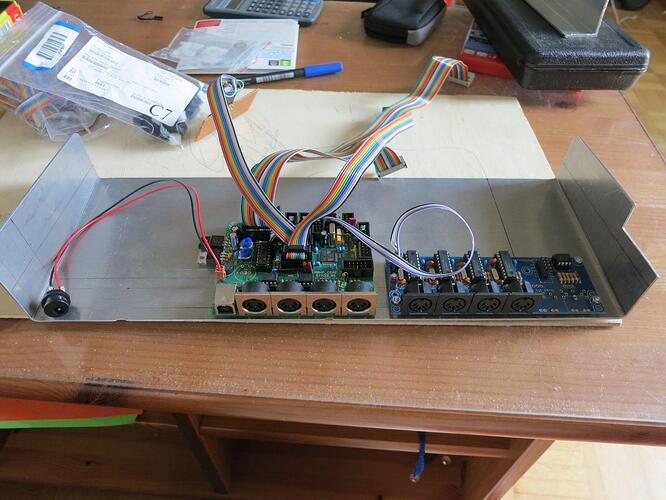

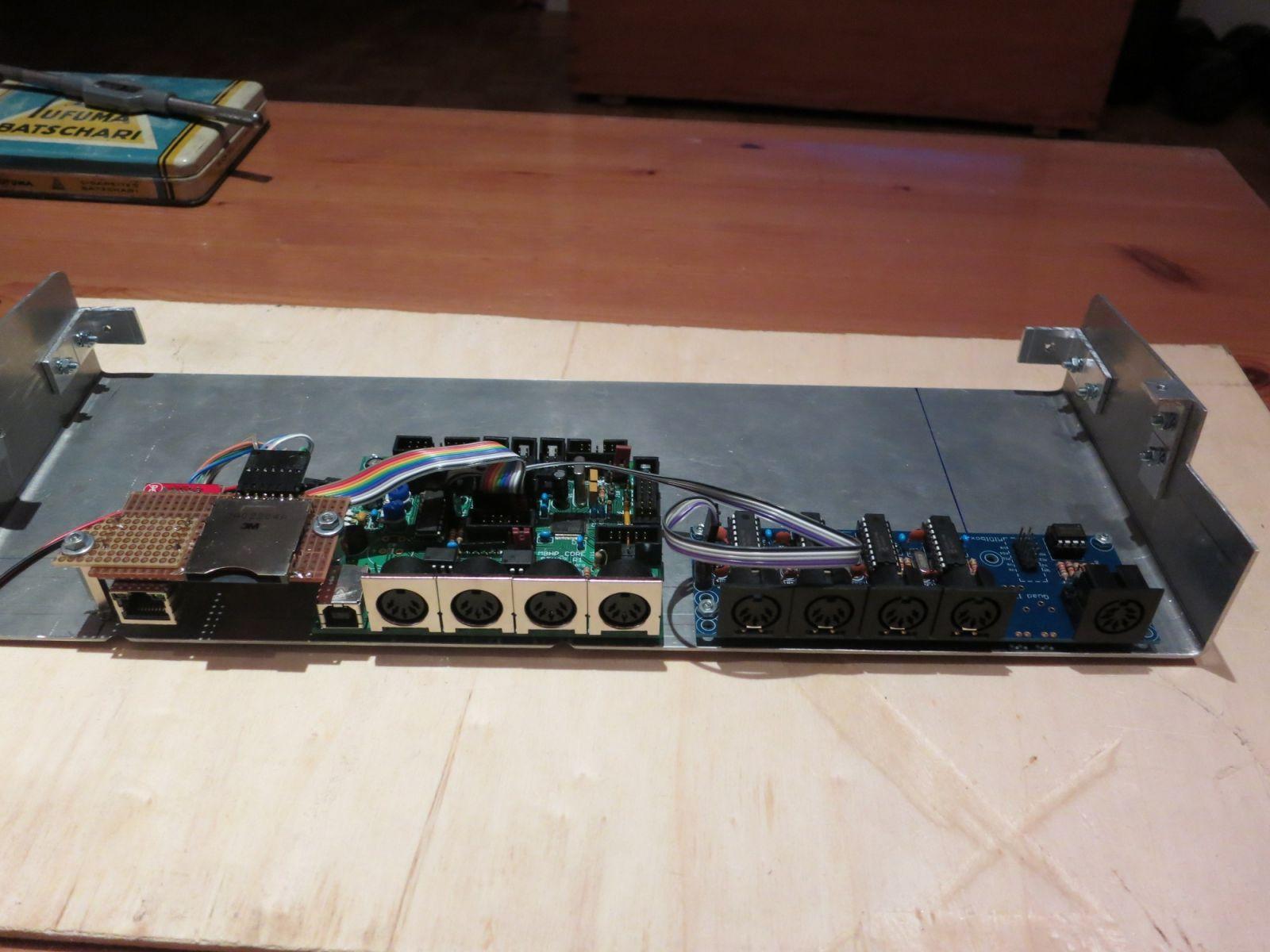

housing bottom with Core_STM32, Quad IIC_MIDI, SD_Slot, Olimex MOD-ENC28J60

daemonik MIDIBOX SEQV4 5

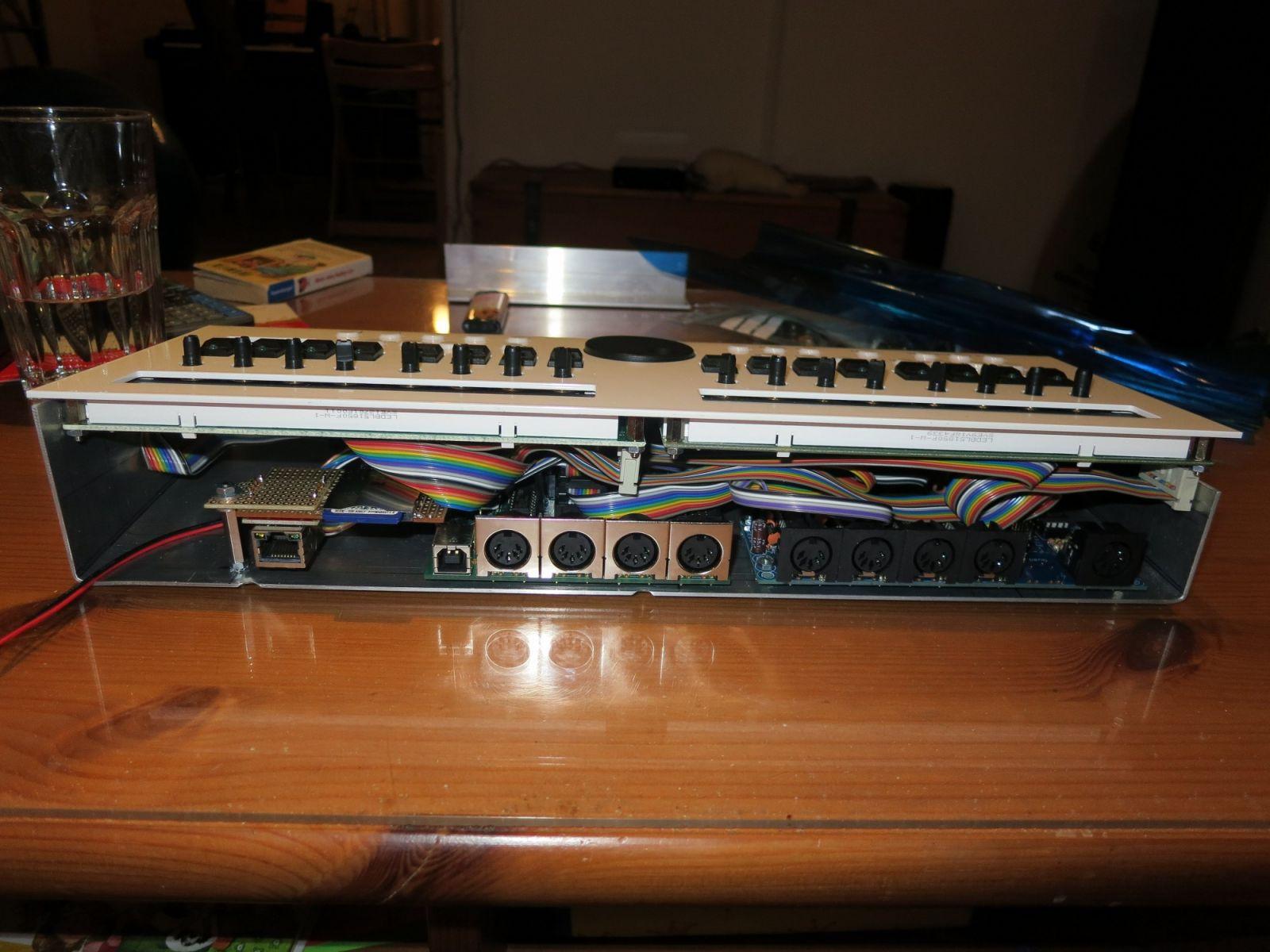

housing bottom, rear-view

with Core_STM32, Quad IIC_MIDI, SD_Slot, Olimex MOD-ENC28J60

daemonik MIDIBOX SEQV4 6

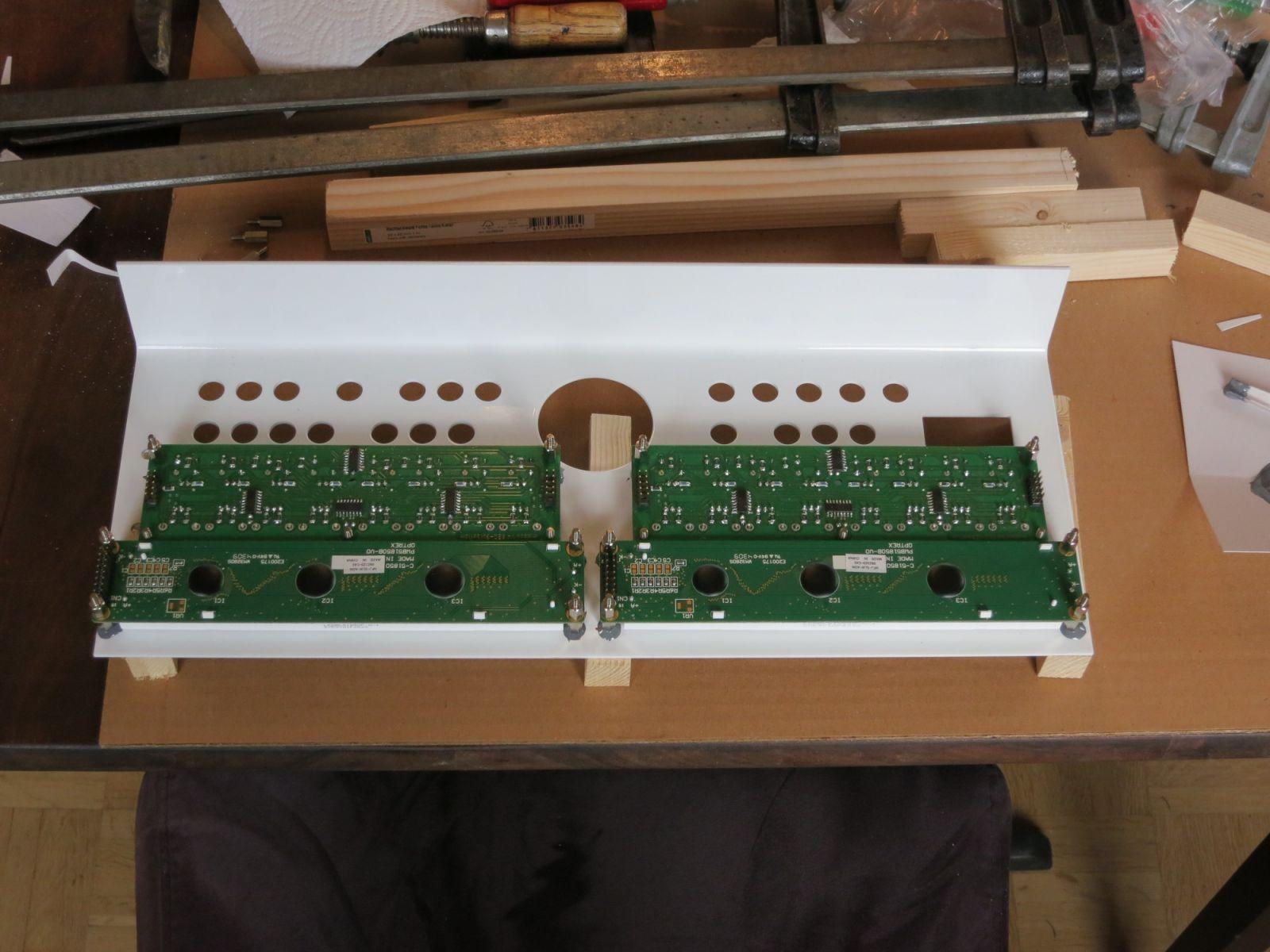

Glueing bolts for LCD’s and custom Encoder/Step-Button PCB’s to frontplate

frontplate manufactured by Schaeffer

daemonik MIDIBOX SEQV4 7

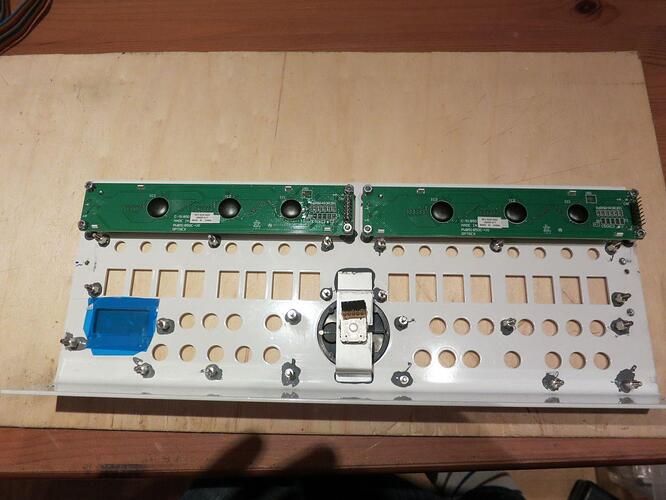

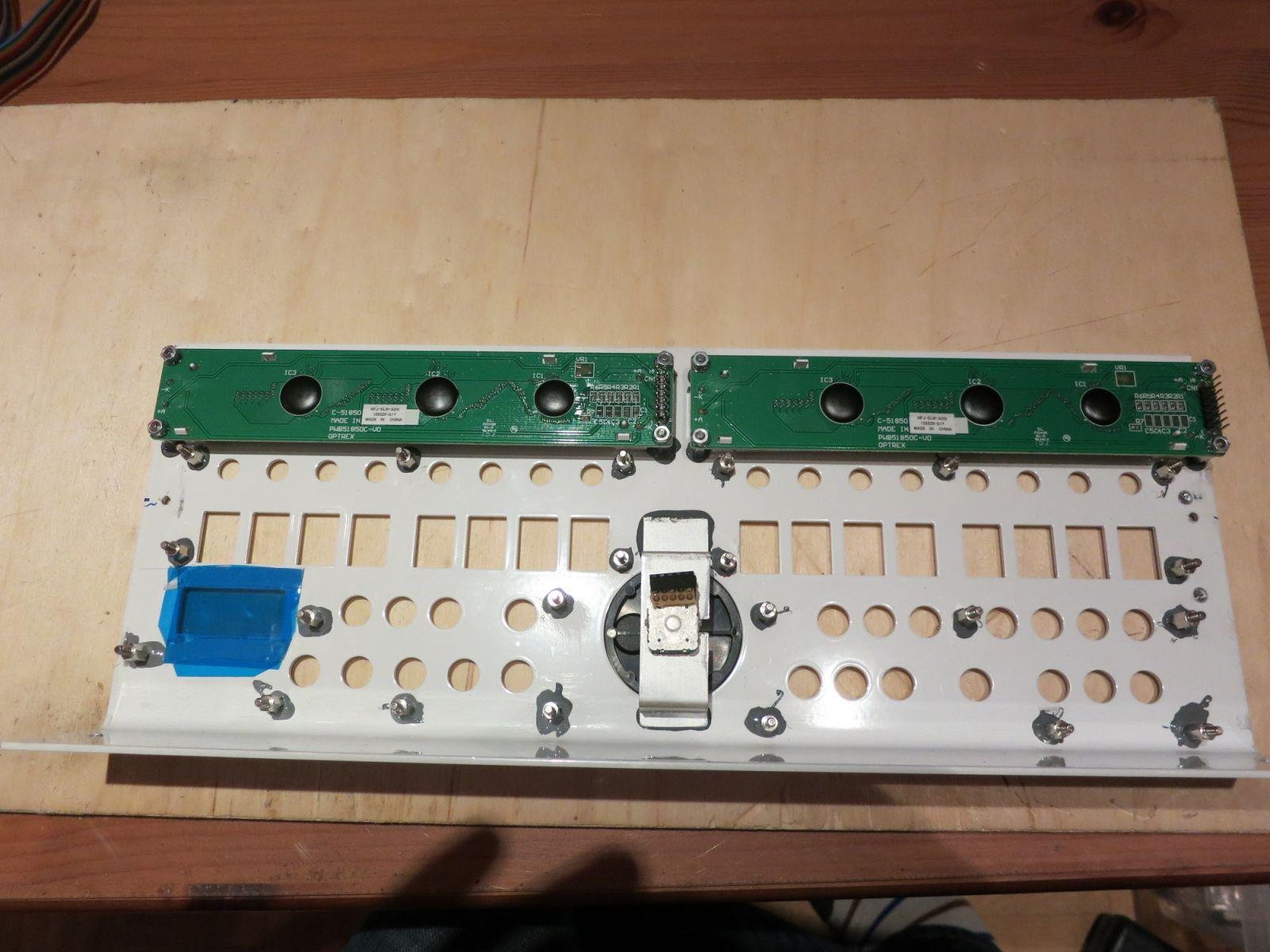

Glueing bolts for button-veroboards and data-encoder to frontplate

frontplate manufactured by Schaeffer

daemonik MIDIBOX SEQV4 8

first assemly… getting excited

daemonik MIDIBOX SEQV4 9

first assembly rear-view

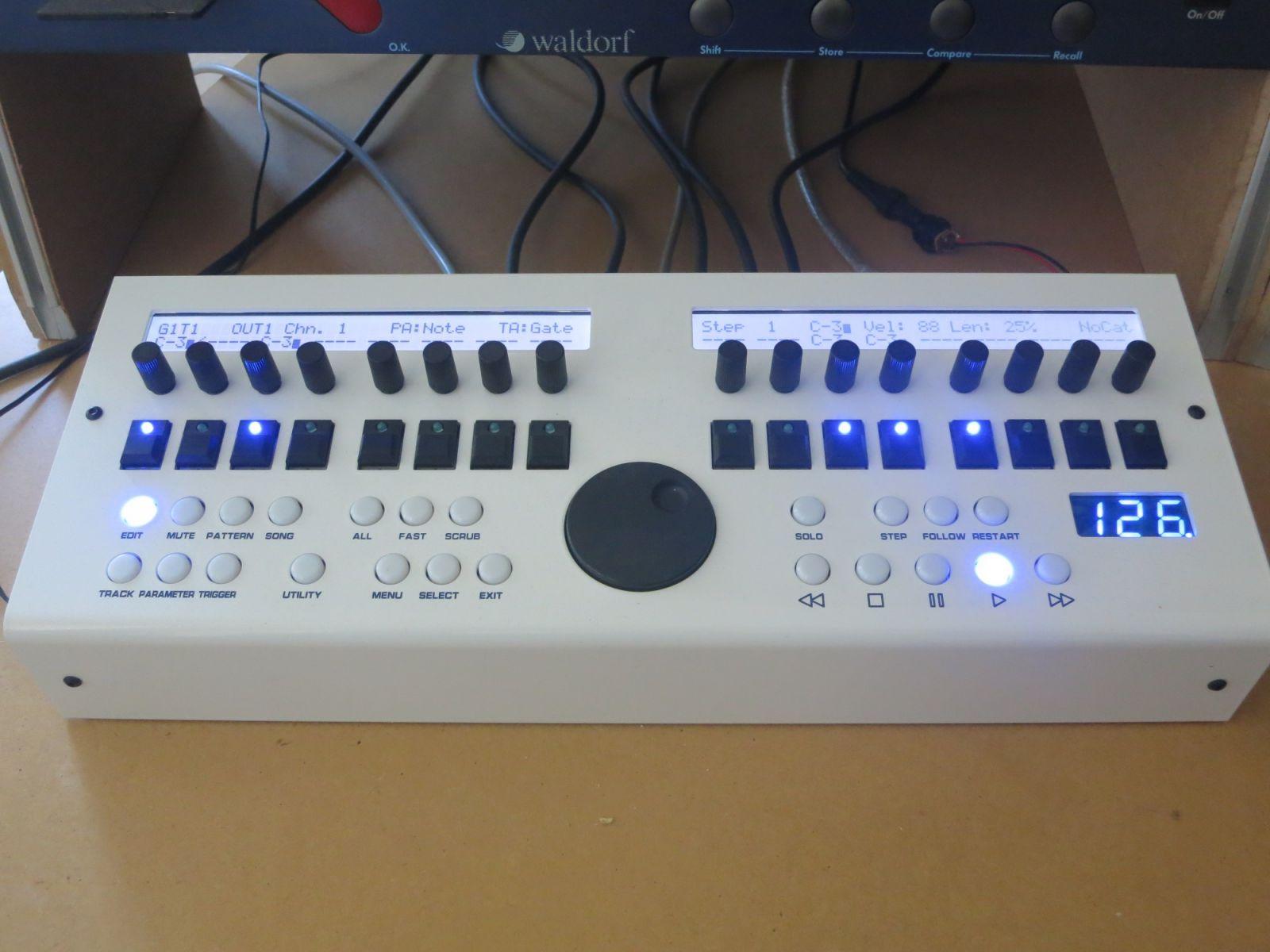

daemonik MIDIBOX SEQV4 finish

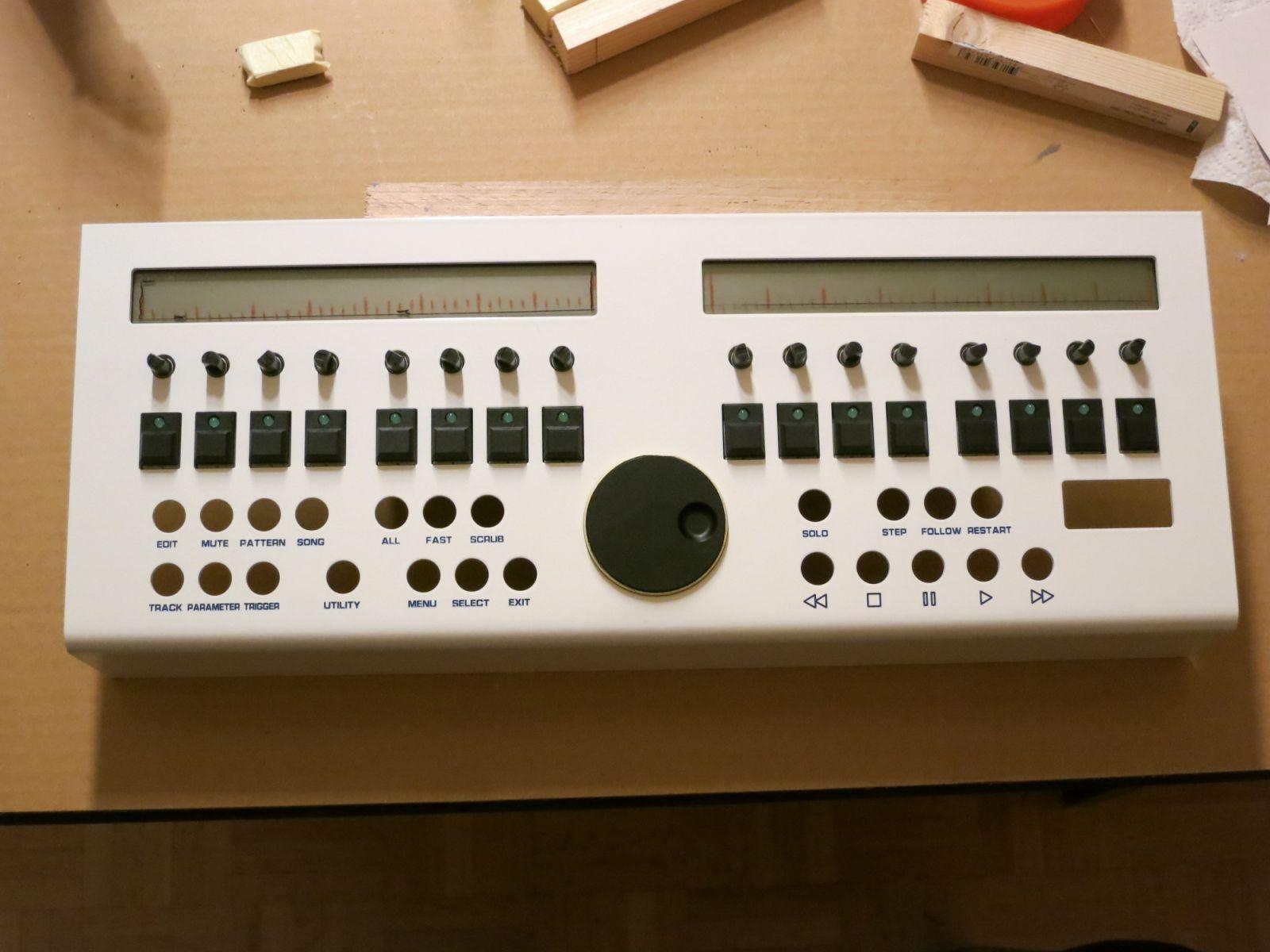

Finished!!!

well… actually a rear-plate and sied-plates are still missing
