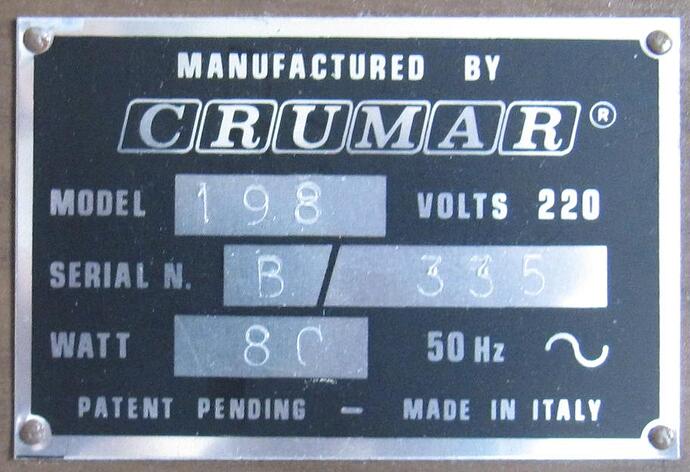

Midificate the ORGAN CRUMAR 198
add my Software “Triggermatrix” > to have some Playhelp with beats…
a “Fingerhut” to protect from heated parts… (orginally needet for to protect from neadle stings)
8xOrganGates (which hold), and
8xPianoGates (which fade out)

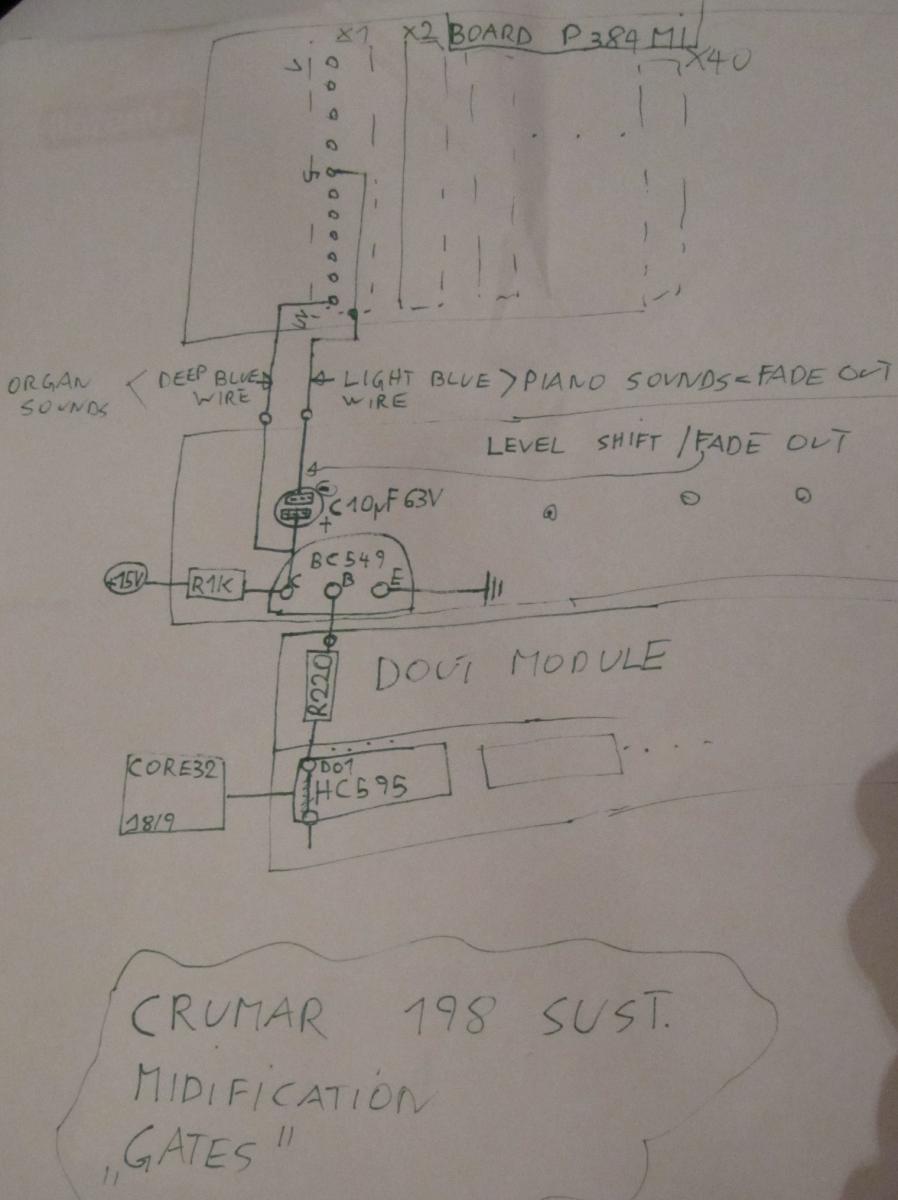

a hc595 Drives this circuit to +15V
Project - Midifie a CRUMAR 198

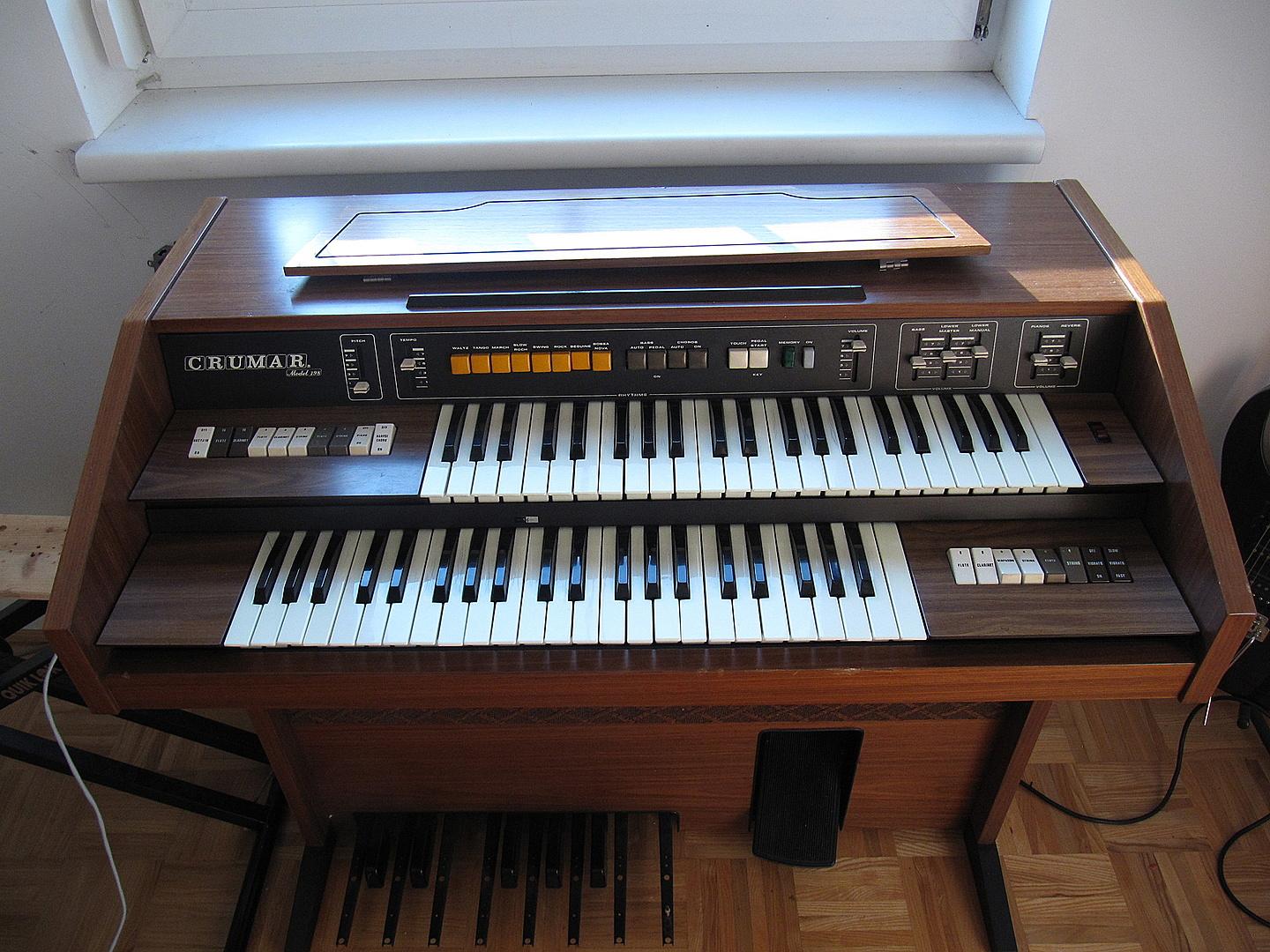

2 manuals… where the lower has this cheesy rythm automatic - i will replace it with my own rythm automatic called “Trigger-Matrix”

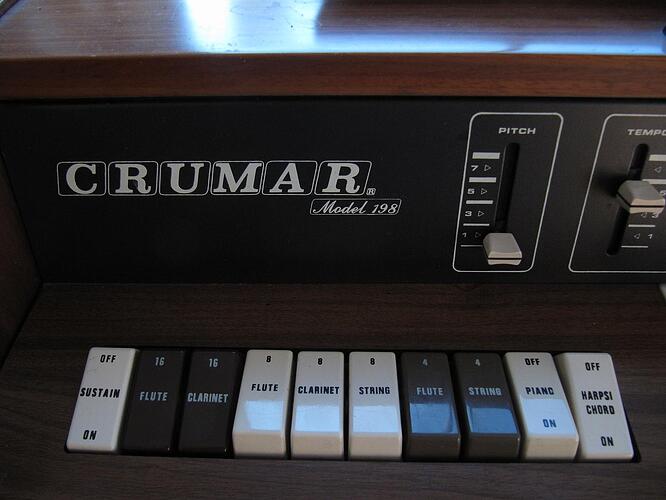

the registers for the upper manuals sounding great…

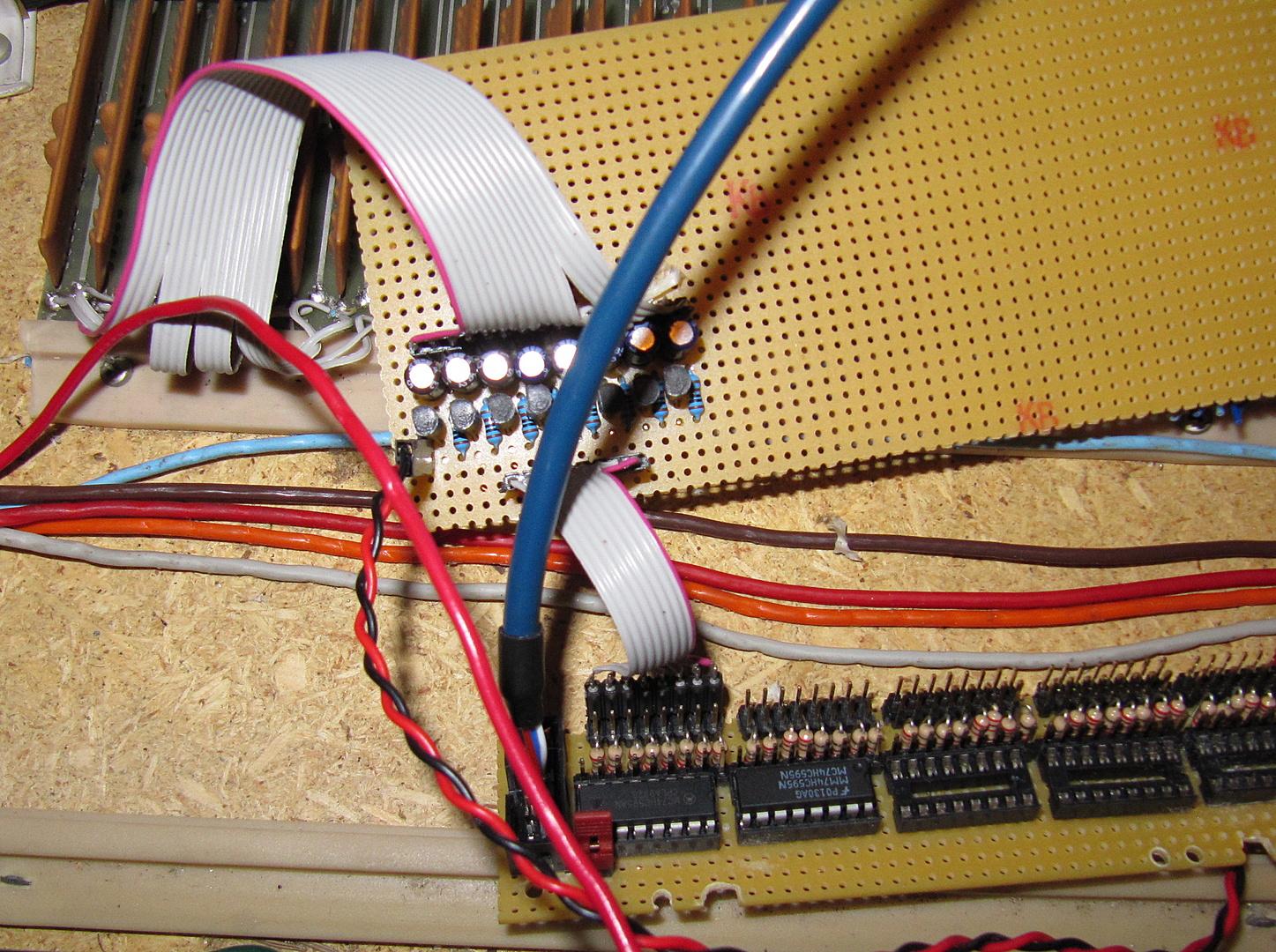

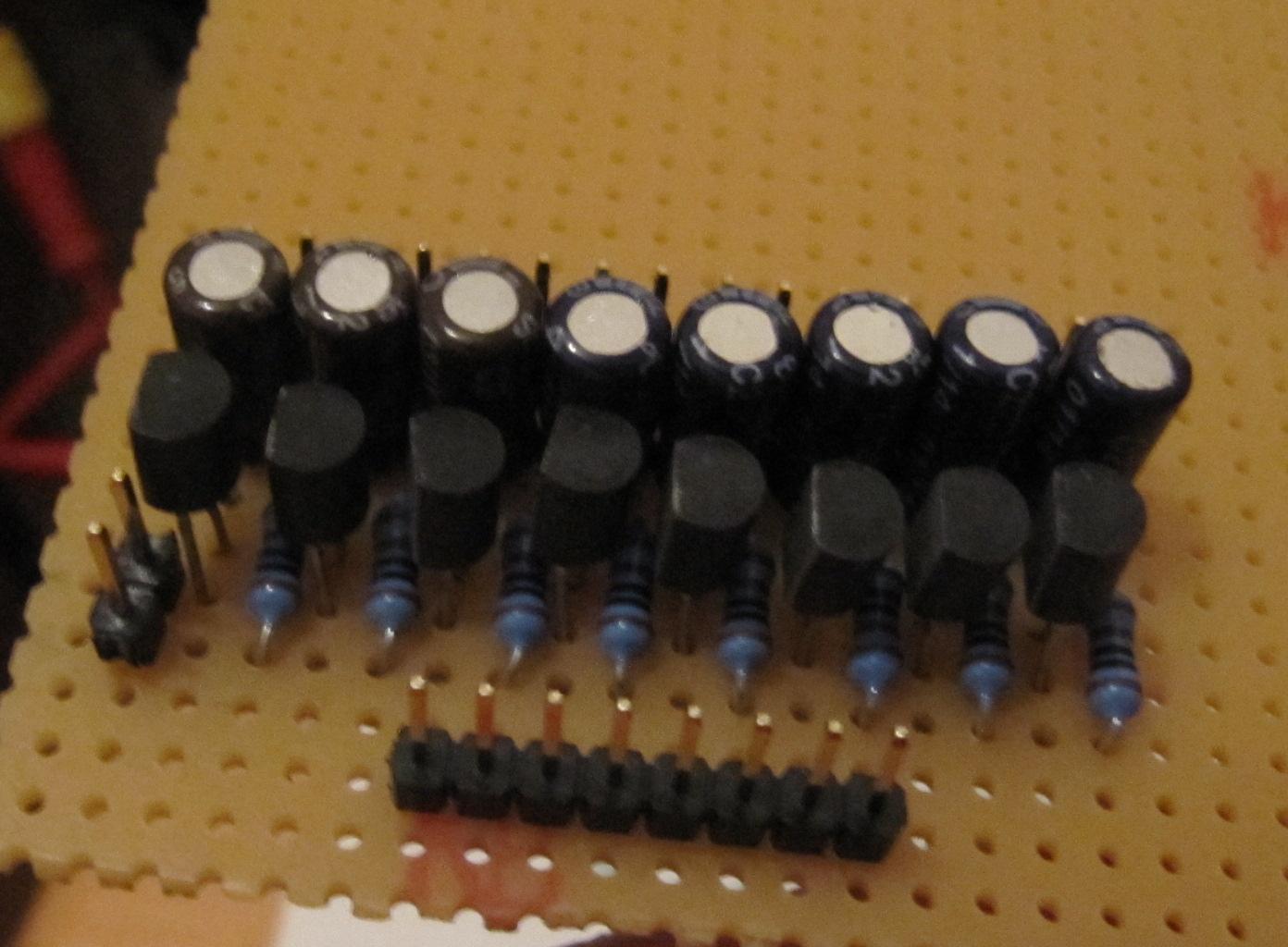

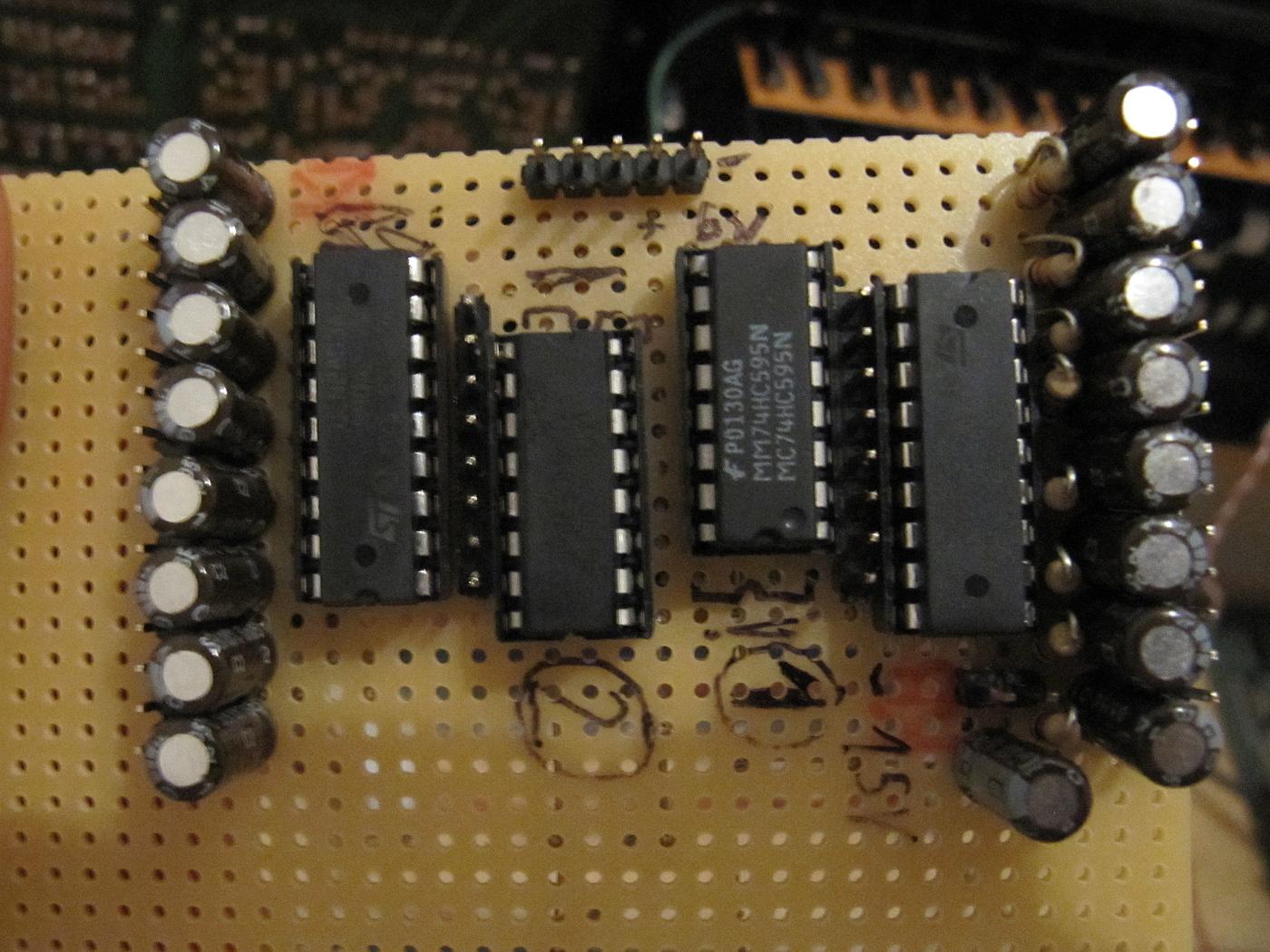

the 5V 2 15V circuit for the gates
16Cable for 8 Keys (8 piano and 8 organ style gates)

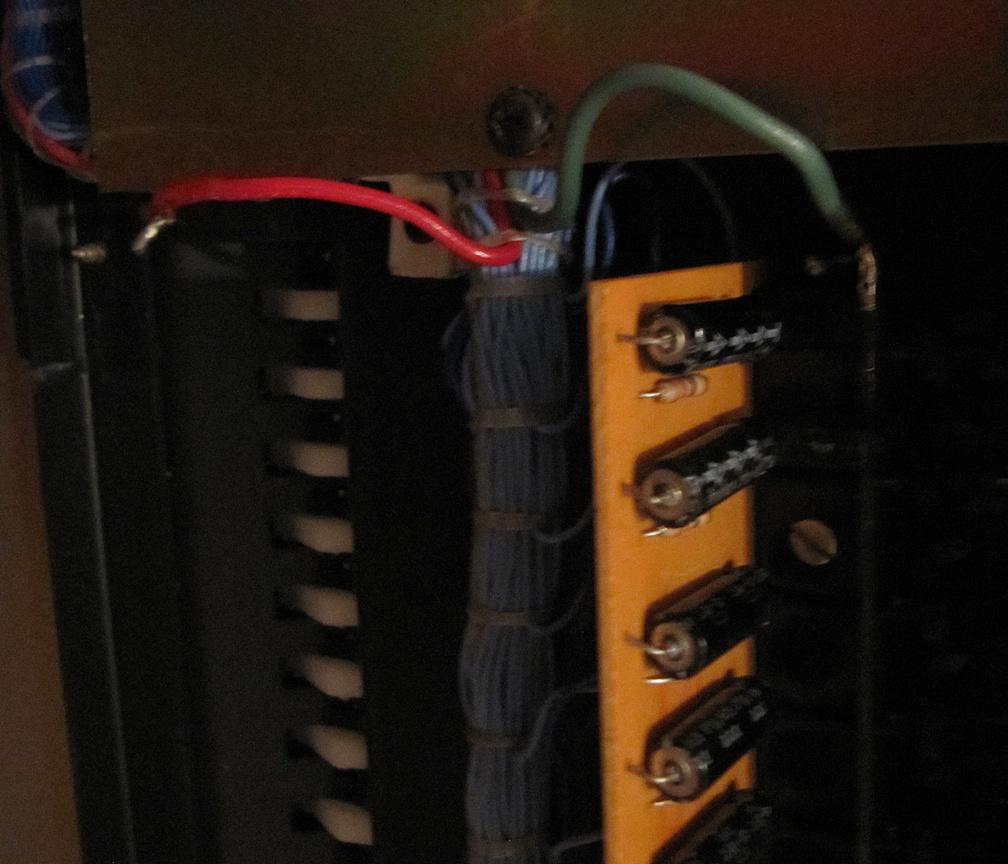

to reuse the manual itself, i have to change the contact iron from +15V to ground…ground is what a DIN Module needs

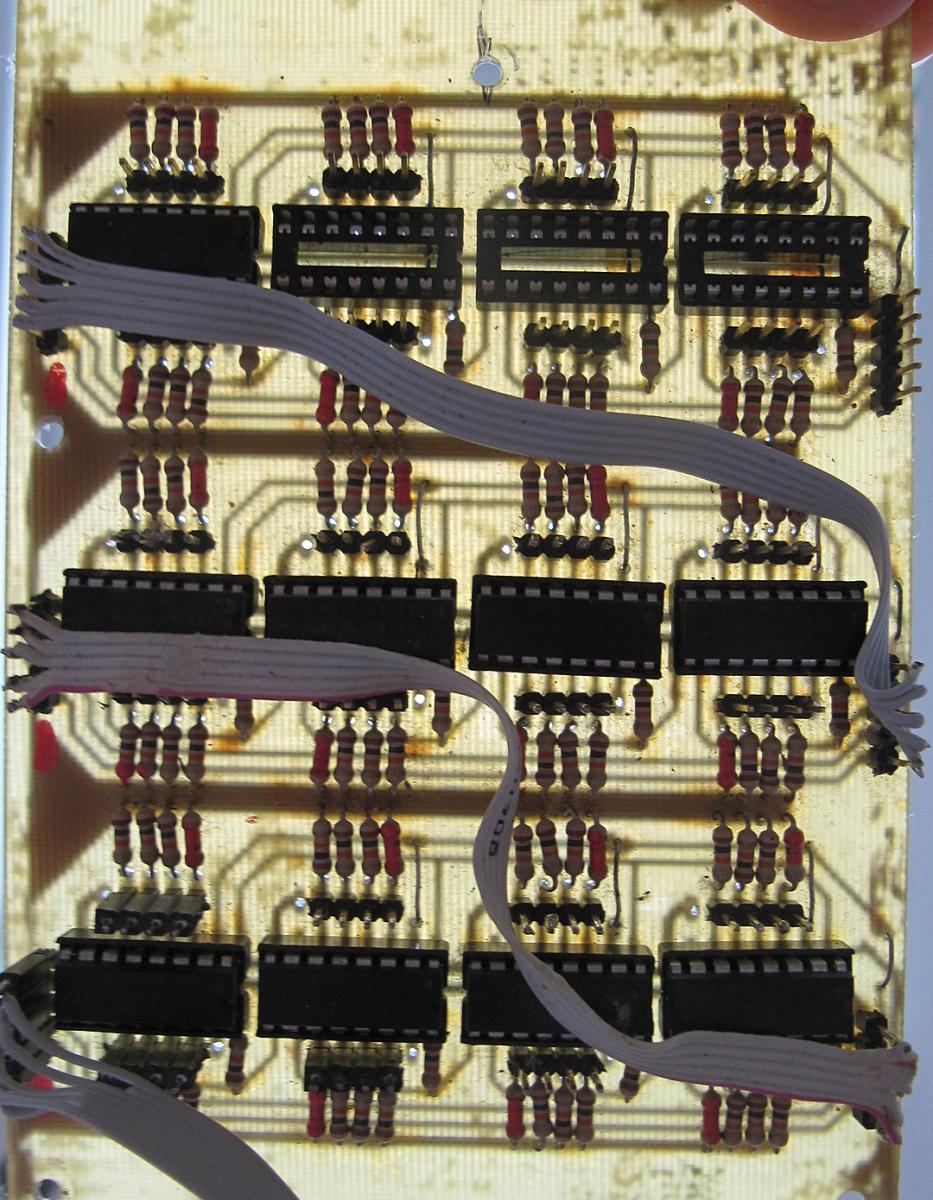

a self etched DIN-Module on a Euro PCB

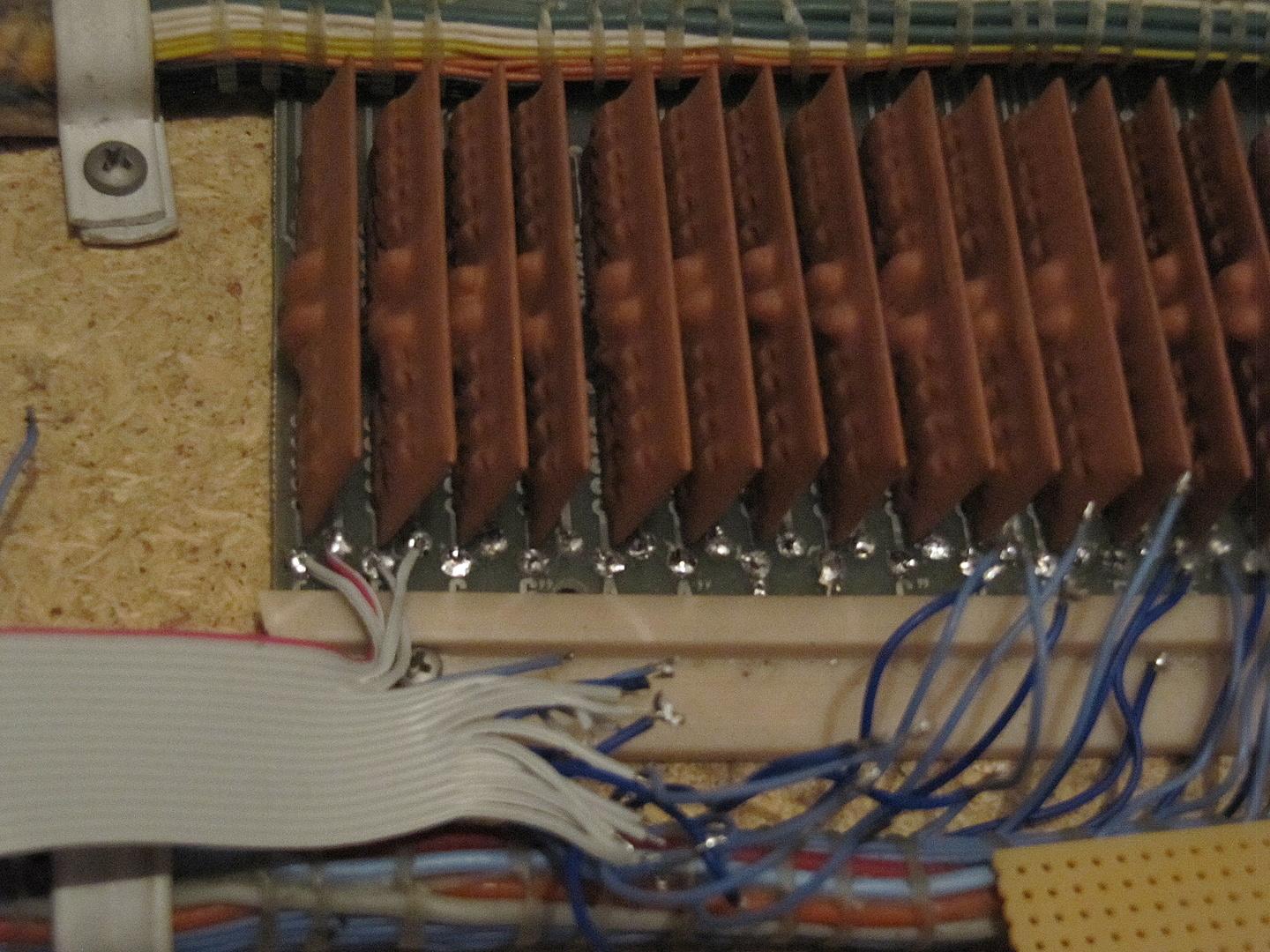

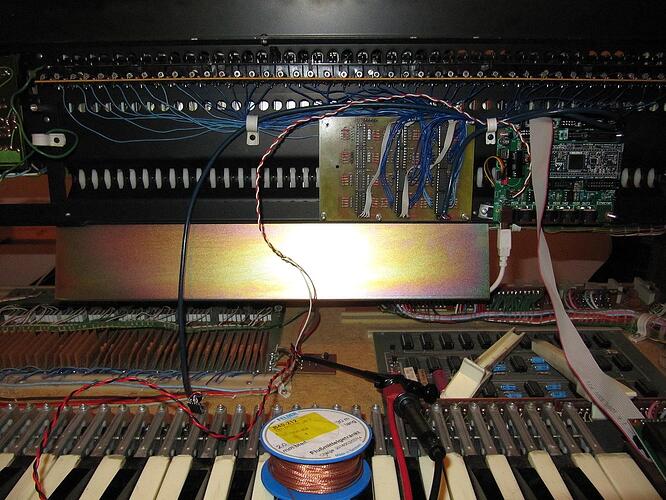

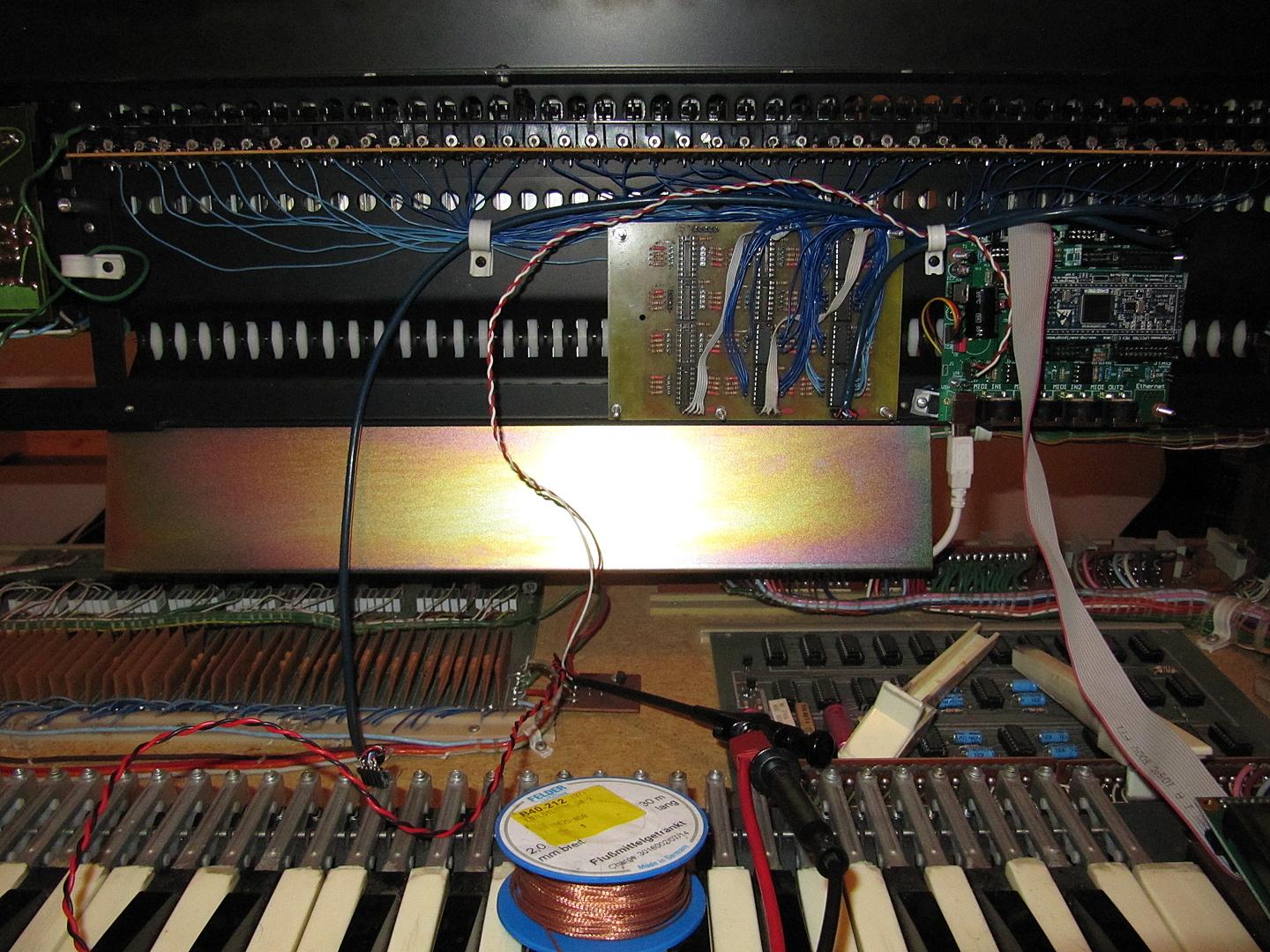

the manual is wired to the DIN-Module

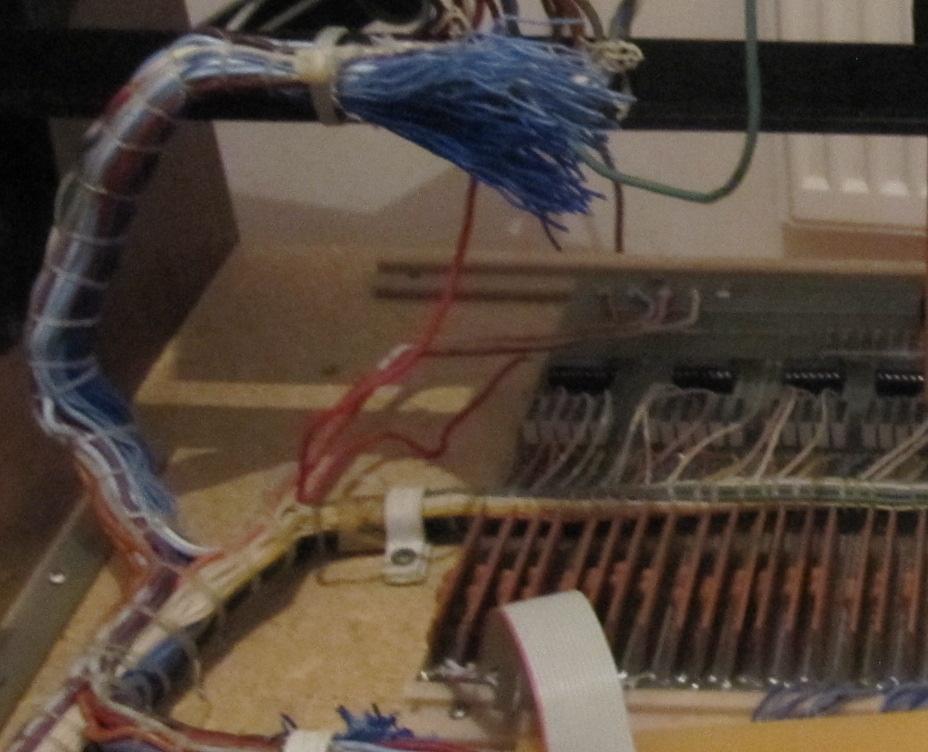

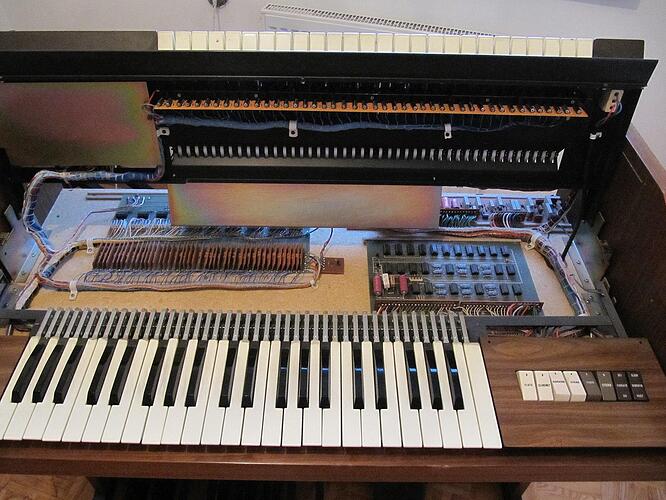

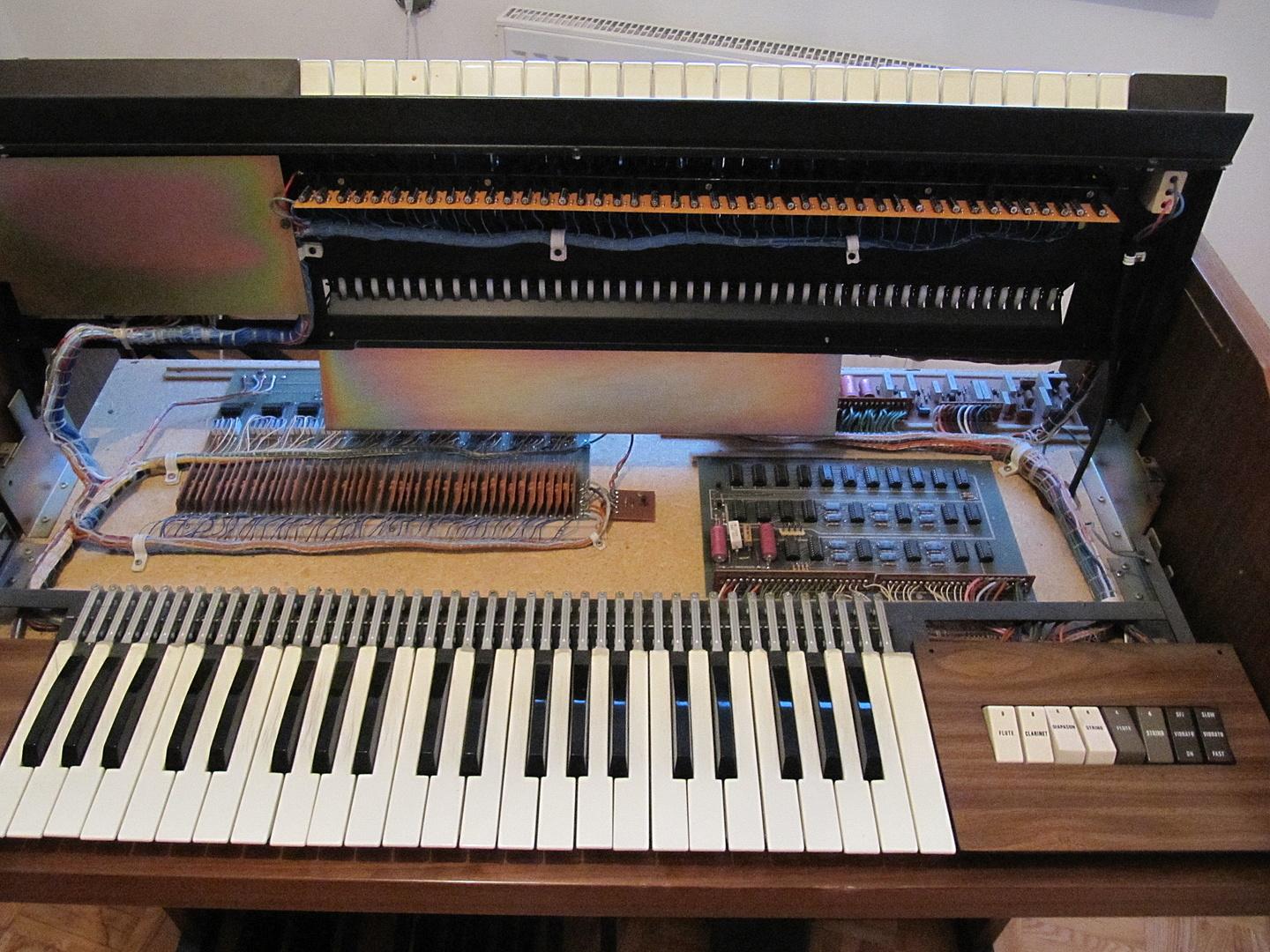

Orginal wirering of the upper manual about 90 cables!
cut the gate cables, but only remove the piano-gate cables from the manual pcb… we need the organ cables to wire it to the din module —the organ cables are the Deep-Blue-Coloured-Cables

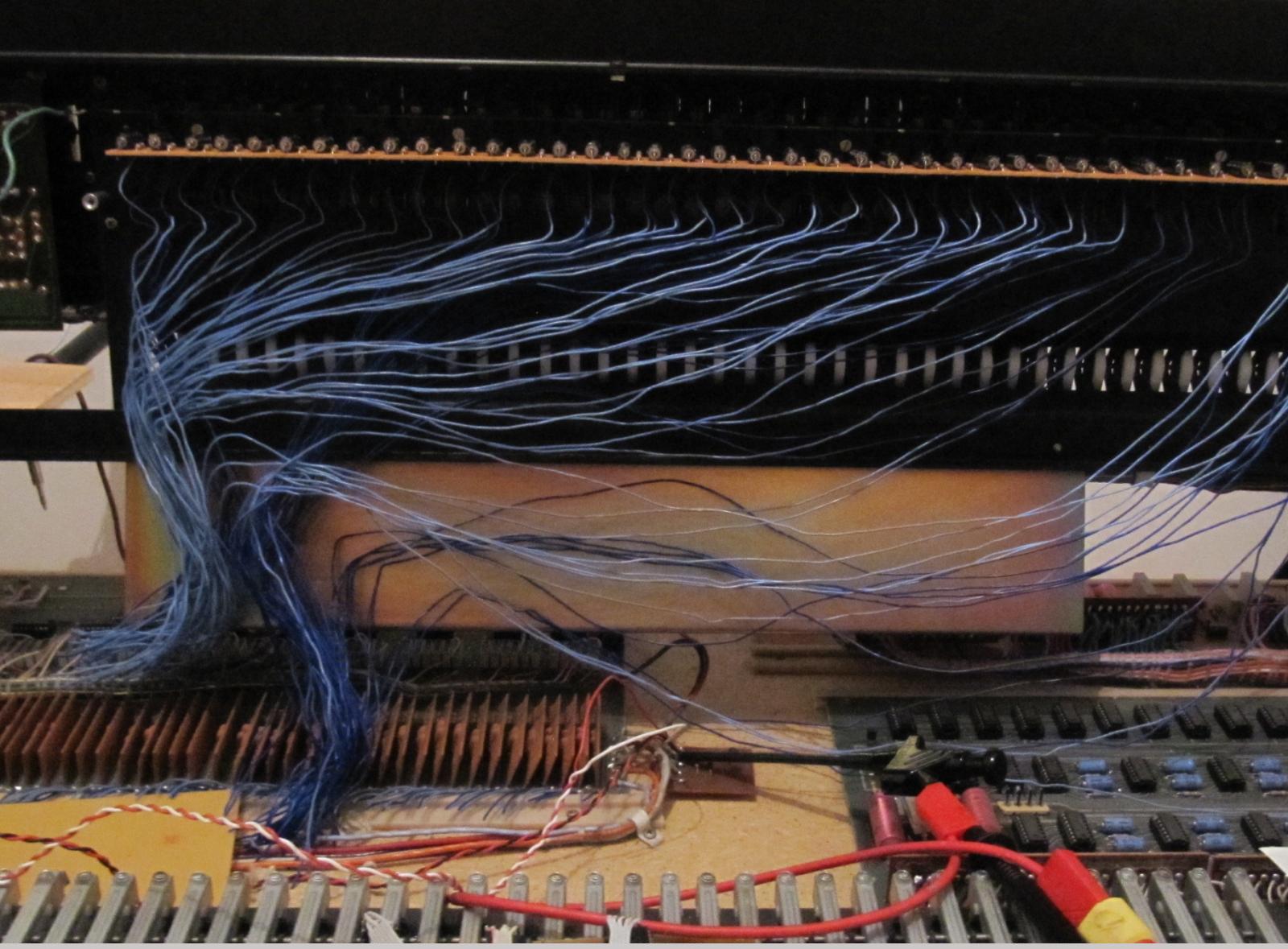

again 90 cables

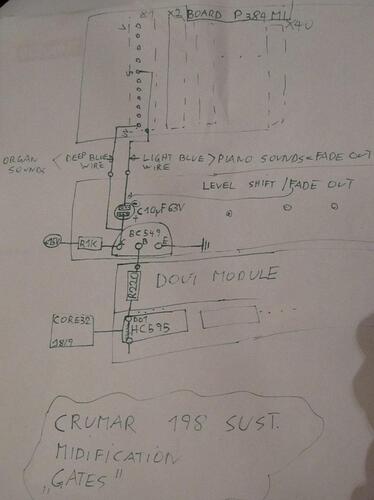

rewireing the gate circuit
this is not a part for the Crumar organ… the crumar gates are V-Trigger @ 15V but i have a other organ that needs S-Triggers — for that i made this board - 16 notes, 2xhc595 and 2x uln2803A
