Clickable rotary encoders as buttons?

MIDIbox NG
1

Good evening everybody !

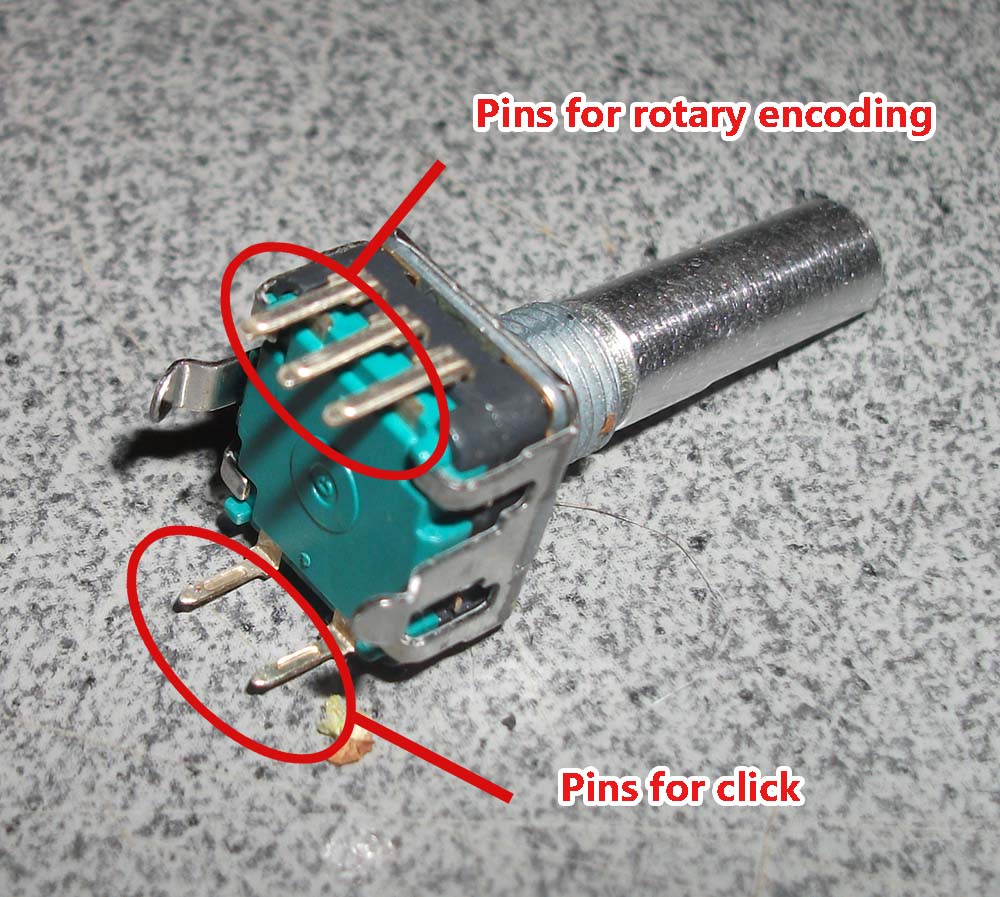

I found back 20 clickable detended rotary encoders, wich have 3 pins on bottom for the ‘spin’ and 2 pins on top for the click (bourns branded if i remember well).

My question is the following : with a 1n48 diode security, could i handle the click (SPST) of my rotary encoder as a button on a DIN module?

thanks in advance, regards

clickablerotarydetendedencoder.jpg.bfa197dc142cf95ca180eceaaa41ed4b.jpg1000×897 145 KB

2

Hello again :slight_smile:

No problem to use the switch as an input for a DIN. Just connect one side to ground and the other to the appropriate pin on the module. There’s no need for diodes unless you’re configuring a switch matrix.

3

oops, i shouldn’t buy as much 1N48, got a thousand left xD

thanks again btw =)

4

They’re very useful and cost 1 cent for 1000 :). If you ever go for the full SEQ BLM that’s 1/3rd gone!

5

still right ^^ . already with the 4*(4x4)= 64 sparkfun button they will be useful. That’s late i think i should better go sleep ^^
