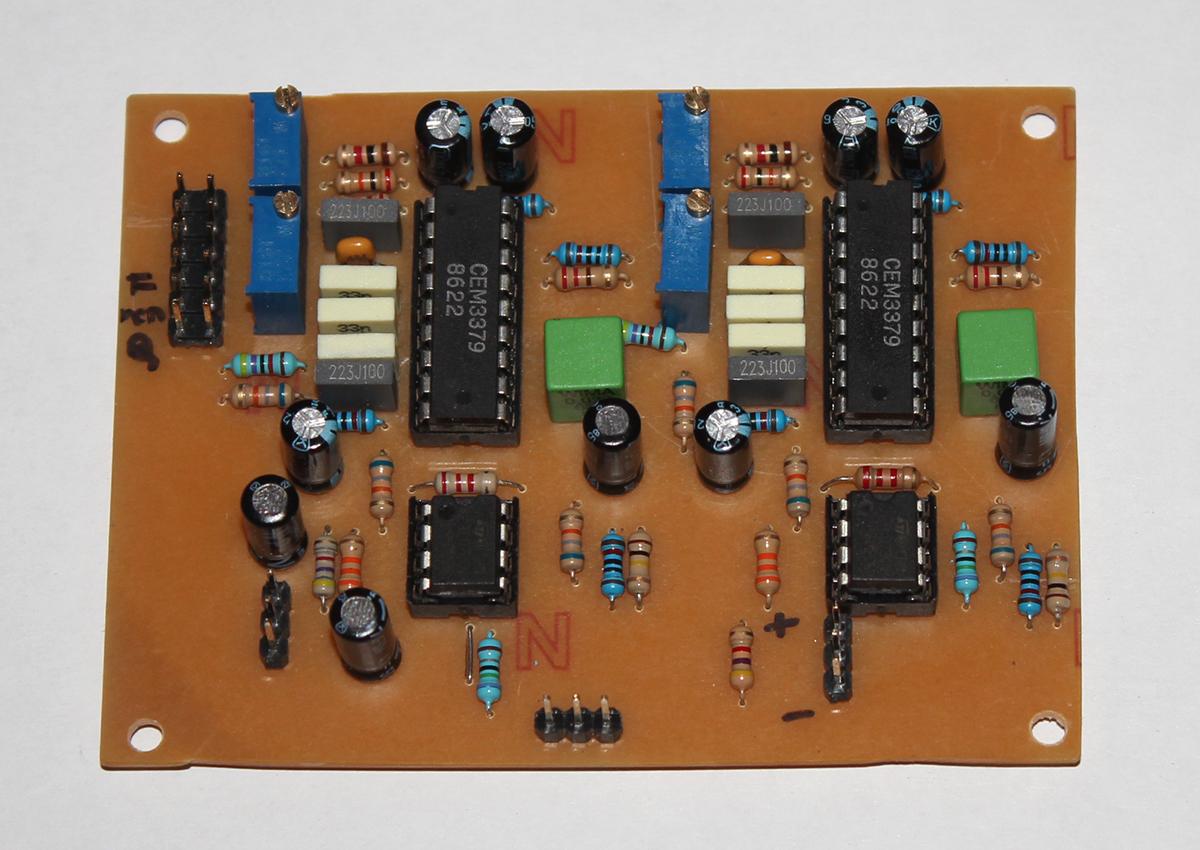

Re: CEM3379 Stereo VCF assembled board
Great work!
Funny; someone here talked about the CEM3396, then nothing...
And without a word you come with the CEM3379, board already done! That's cool.
Did you plan to connect it to a Core?
Did you think about a front panel?
Doku?
/emoticons/cheers.gif" title=“:cheers:”>
Re: CEM3379 Stereo VCF assembled board
Based on the shruthi-1 original filter board
- Great to see a stereo version for connecting AOUT modules..! Thanks a lot.
Re: CEM3379 Stereo VCF assembled board
/profile/7584-antichambre/“>@Antichambre This an old project, but I’m still not finished the control surface. Enclosure has taken from old soviet “MICRO” calculator Elektronika MK-44 but it has no main PCB, so I’m still searching for another one to take keyboard from it for more authentic look /emoticons/rolleyes.gif” title=“:rolleyes:”>

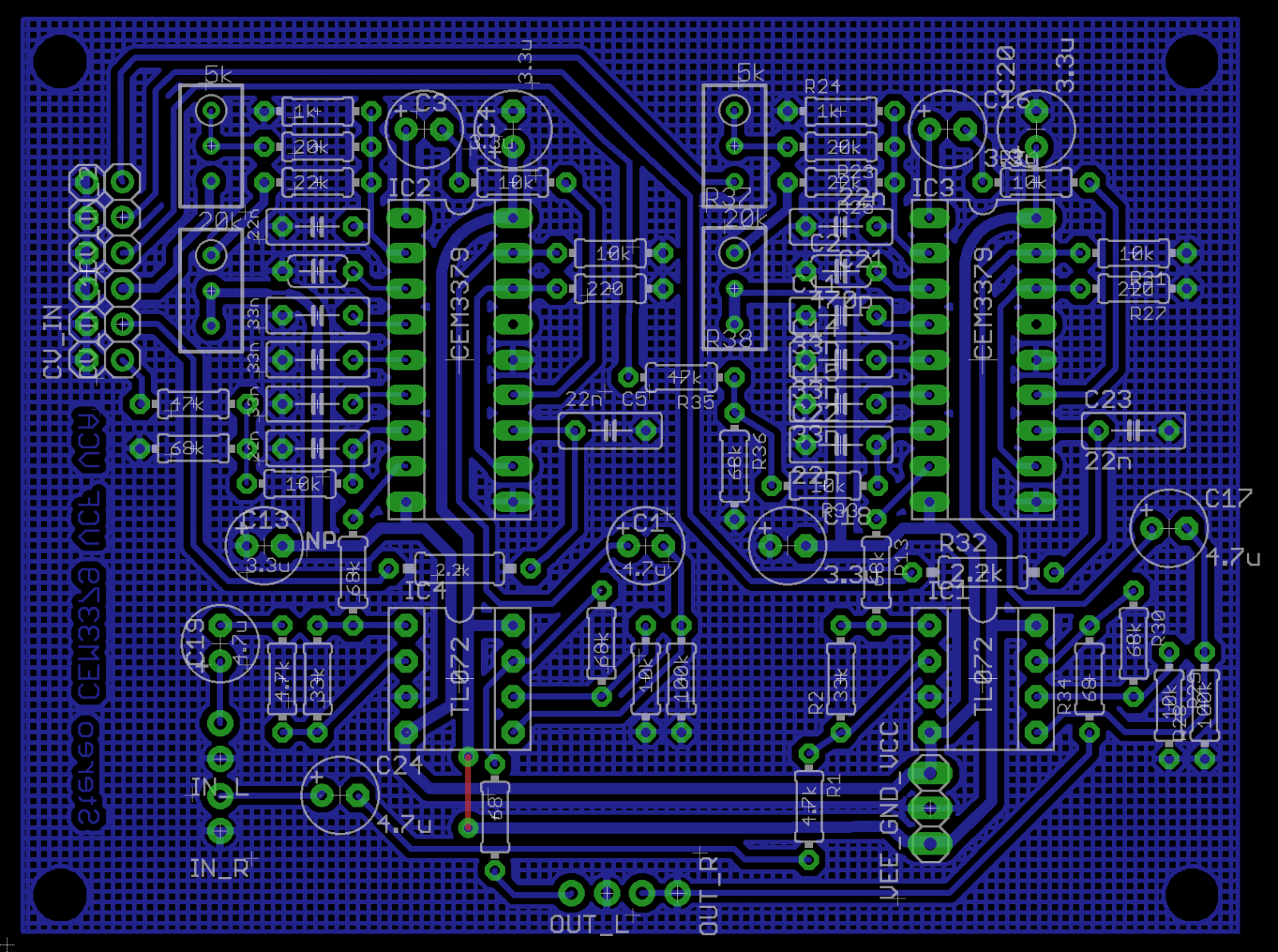

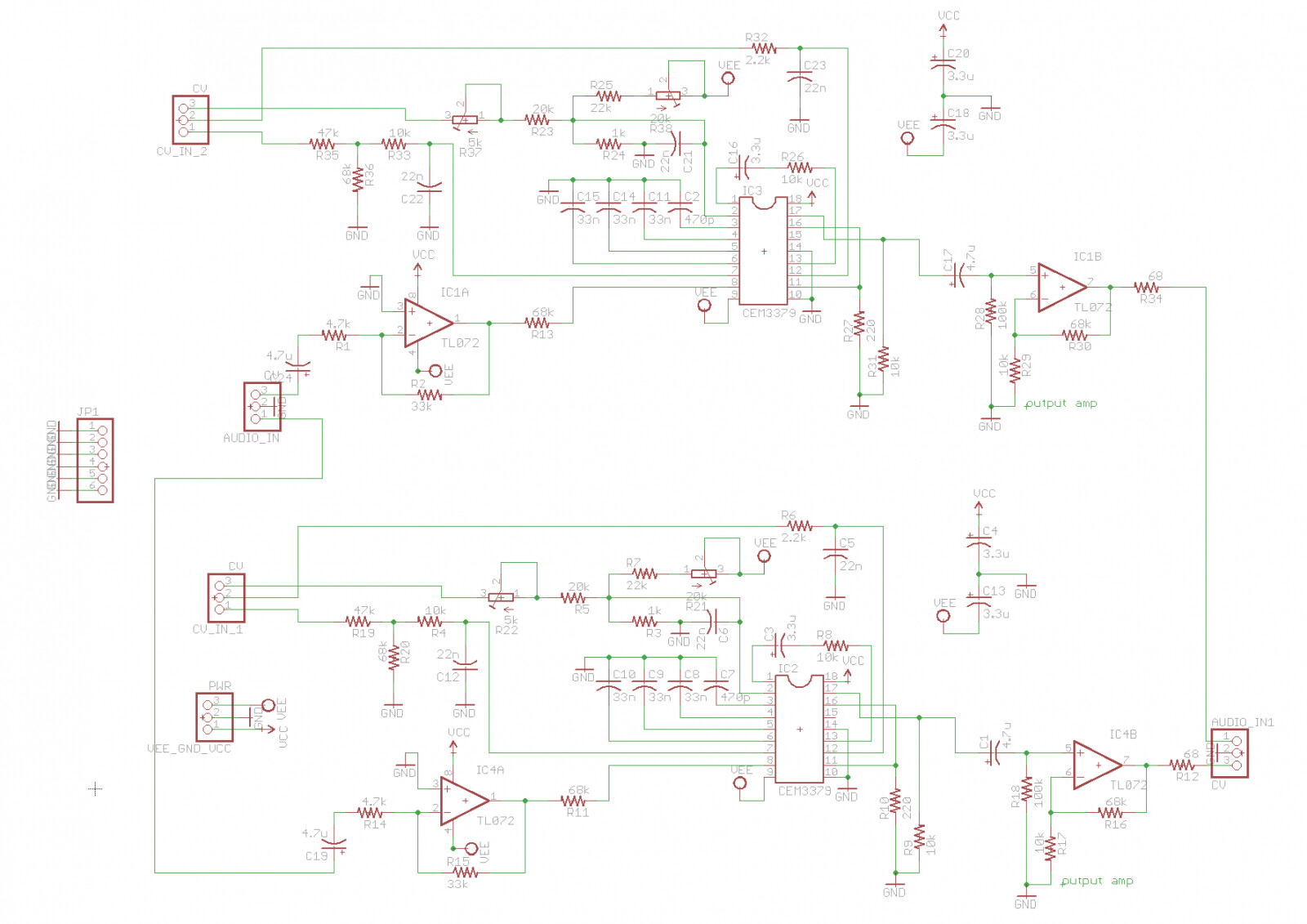

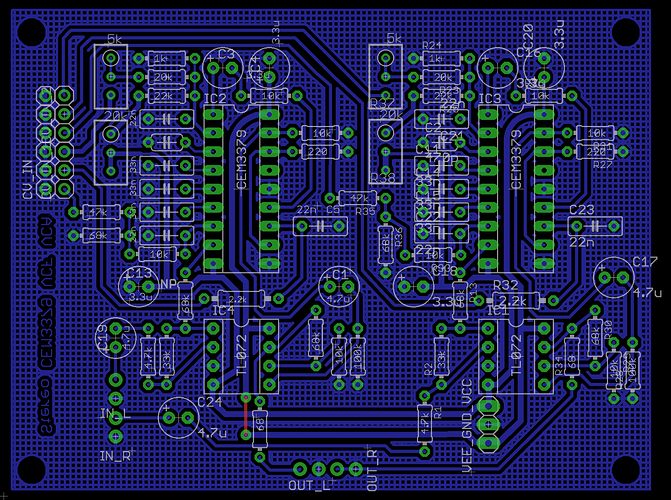

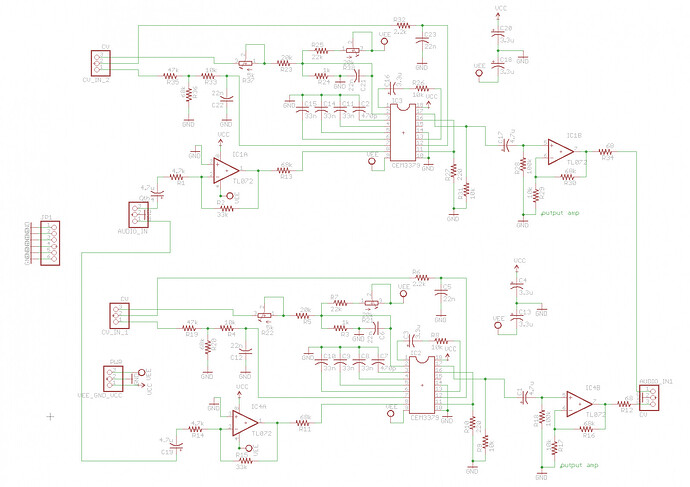

Rio asked me for the project files, so I've uploaded everything to public.
Yes, design is based on Olivier's original Shruthi-1 CEM filter board, other parts is quite standard except OLED - CORE8 PCB with MidiboxSID v2.042, Stereo SID6581 PCB and AOUT_NG. PSU is taken from old DVD player - +5/+12/-12 volts, CEM VCF powered with +12/-12V.
The only one noisy part is OLED's boost converter, I was thinking of powering it directly from +12V rail, should fix the problem.
/monthly_2018_10/IMG_6556_sm.jpg.9aa7db4a030d4eada8defde0b624b2df.jpg">/monthly_2018_10/IMG_6556_sm.thumb.jpg.113d2232ae718a47f17455dde5e98720.jpg">
/monthly_2018_10/IMG_6558_sm.jpg.cfc8feace868e49df1d6ea1edc433937.jpg">/monthly_2018_10/IMG_6558_sm.thumb.jpg.997e8ad8cd6559fcf86b223c4065bbf0.jpg">
/monthly_2018_10/Elektonika-MK-44.jpg.c460a60c8e51c7b0445cde8aeeb6a913.jpg">/monthly_2018_10/Elektonika-MK-44.thumb.jpg.3af6a341e3fcc72cde6ebf6b7c0dc0b5.jpg">
Re: CEM3379 Stereo VCF assembled board
Just now, Schrabikus said:
so I'm still searching for another one to take keyboard from it for more authentic look
you've got a lot on ebay
https://www.ebay.com/sch/i.html?_from=R40&_trksid=m570.l1313&_nkw=ELEKTRONIKA+MK+44&_sacat=0
Thx for the explanation :) fun project!
Best
Re: CEM3379 Stereo VCF assembled board
Nice one, and welcome back, Schrabikus! /emoticons/cheers.gif" title=“:cheers:”>
Many greets,
Peter
Re: CEM3379 Stereo VCF assembled board
Hi, Peter! Saw your 2 hour MIDIbox SEQ building tutorial at Youtube, great work!!
