Photos of the slide projector remote control

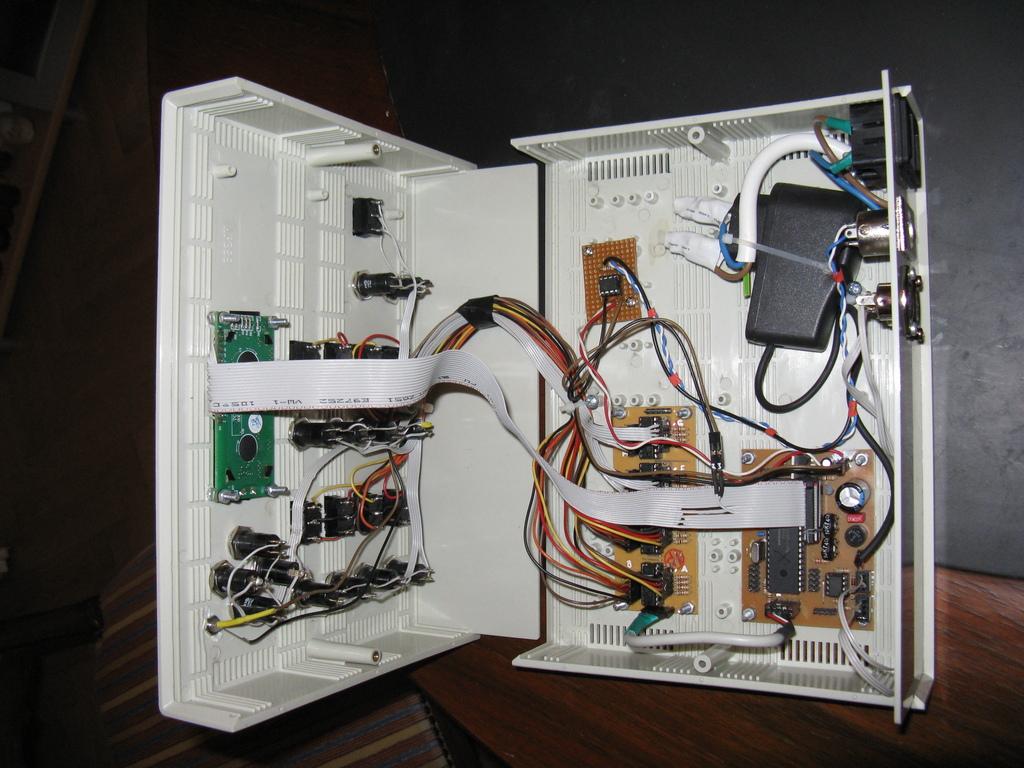

Stage box

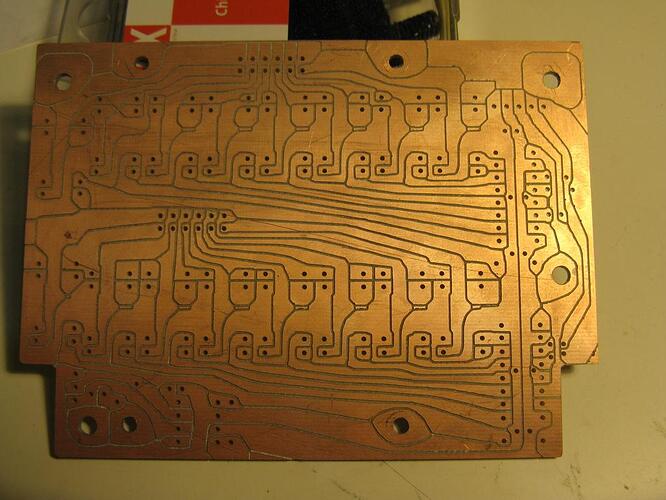

self-made Voronoi-CNC-milled PCB

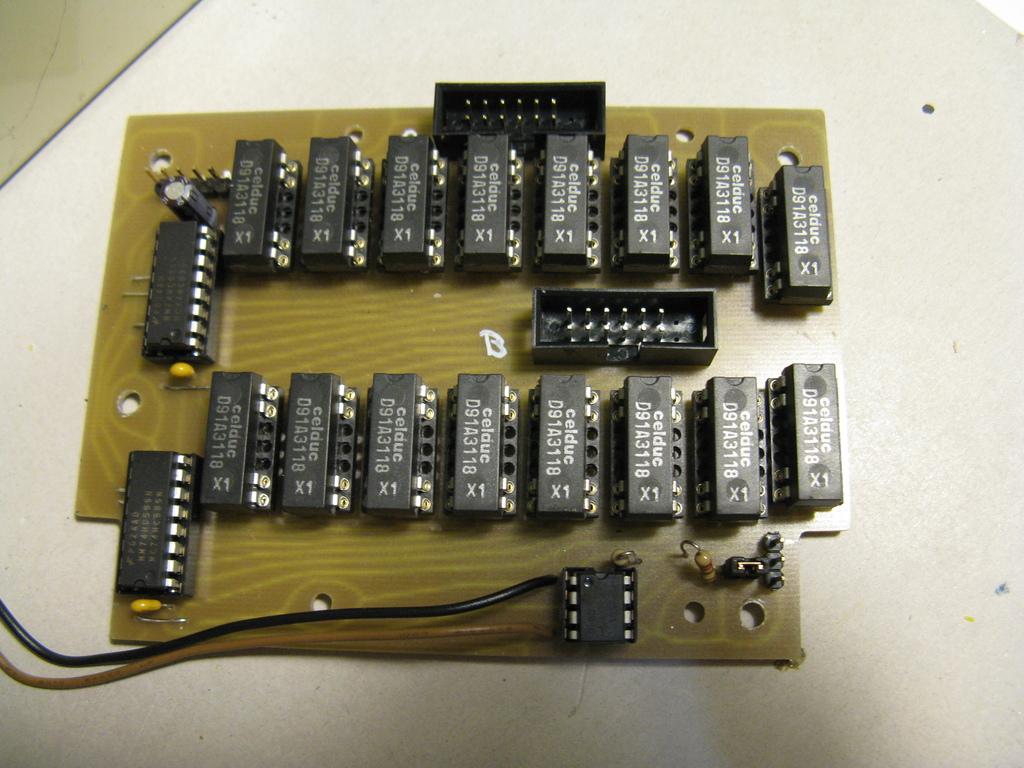

Board contains a half-stuffed DOut, the reed relays, and the CAN transceiver circuitry.
Big thanks to B.K. for help in designing and producing the board!
Distrobox PCB fully stuffed

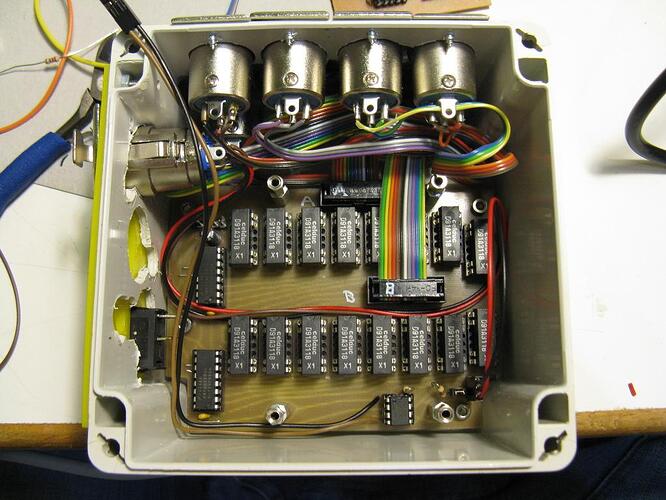

Distrobox Case Phase 1

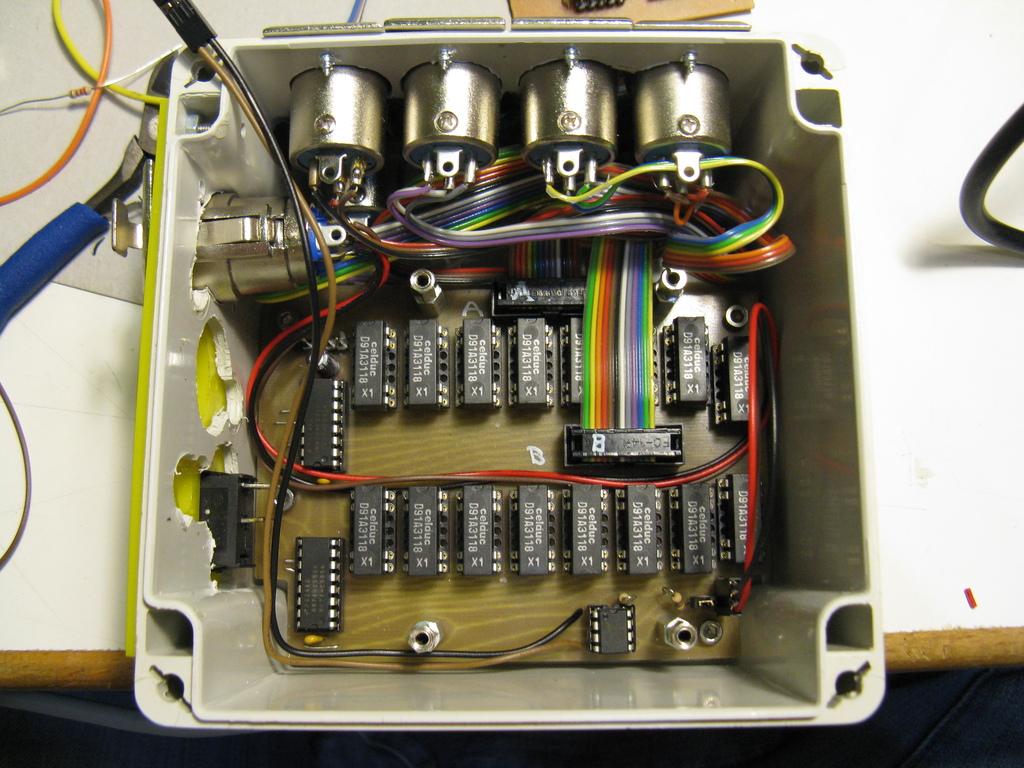

Fitting everything in there, XLR jacks and main PCB
Distrobox Case Phase 2

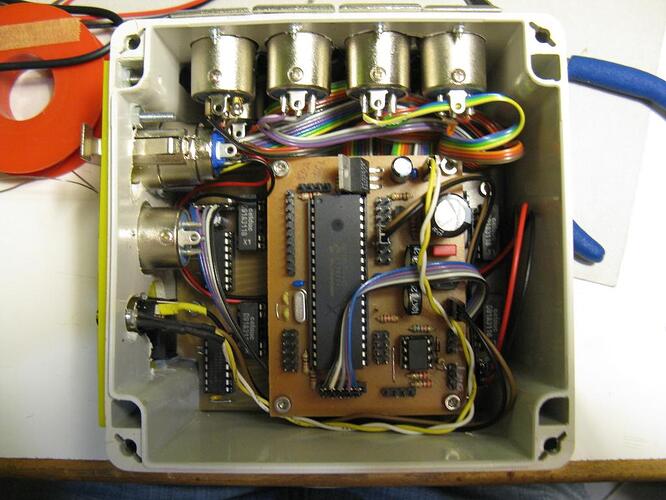

Added the core stacked on top of the main PCB and rest of connections.
Distrobox Case Phase 3

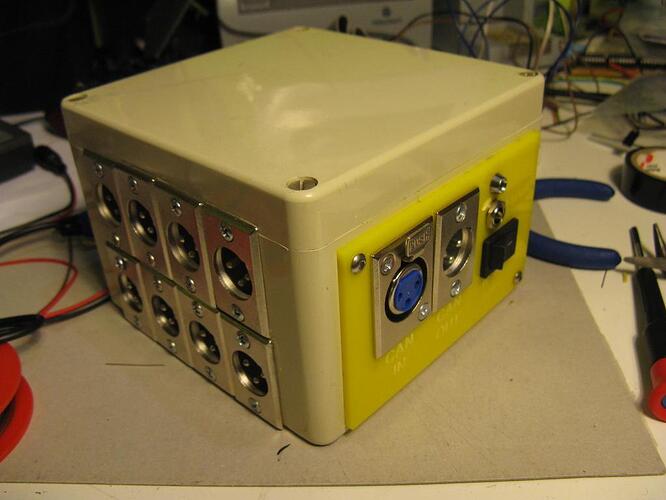

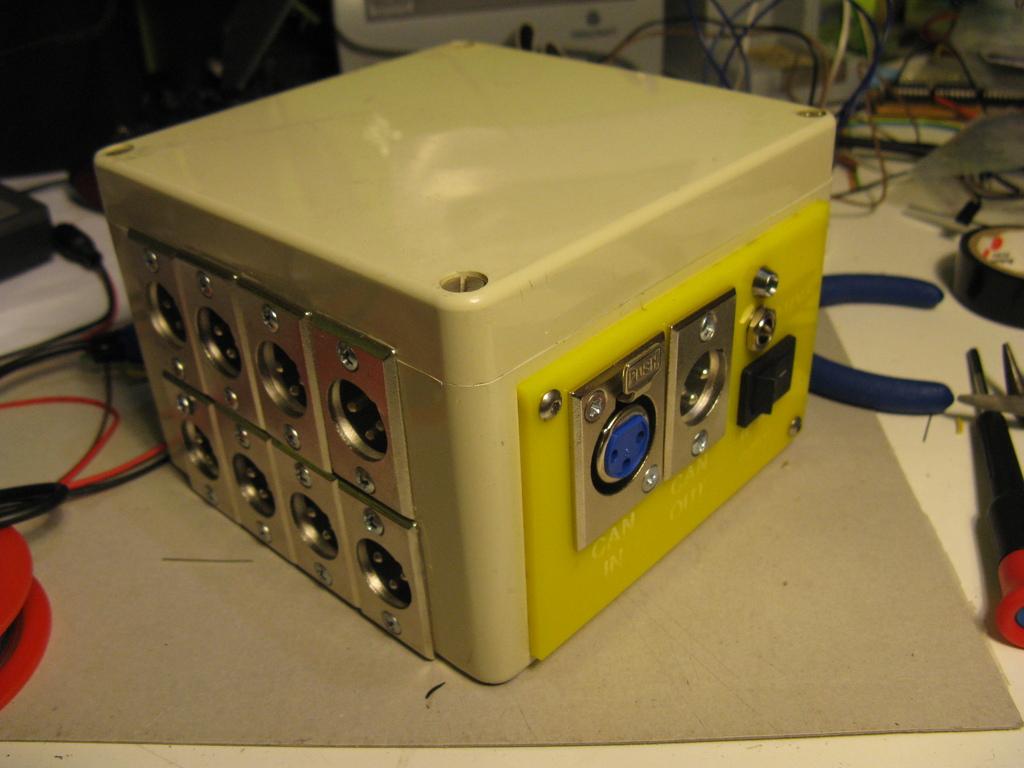

From the outside. Laser-engraved and cut frontplate to cover the holes from the reused case.
SlideControl assembled!

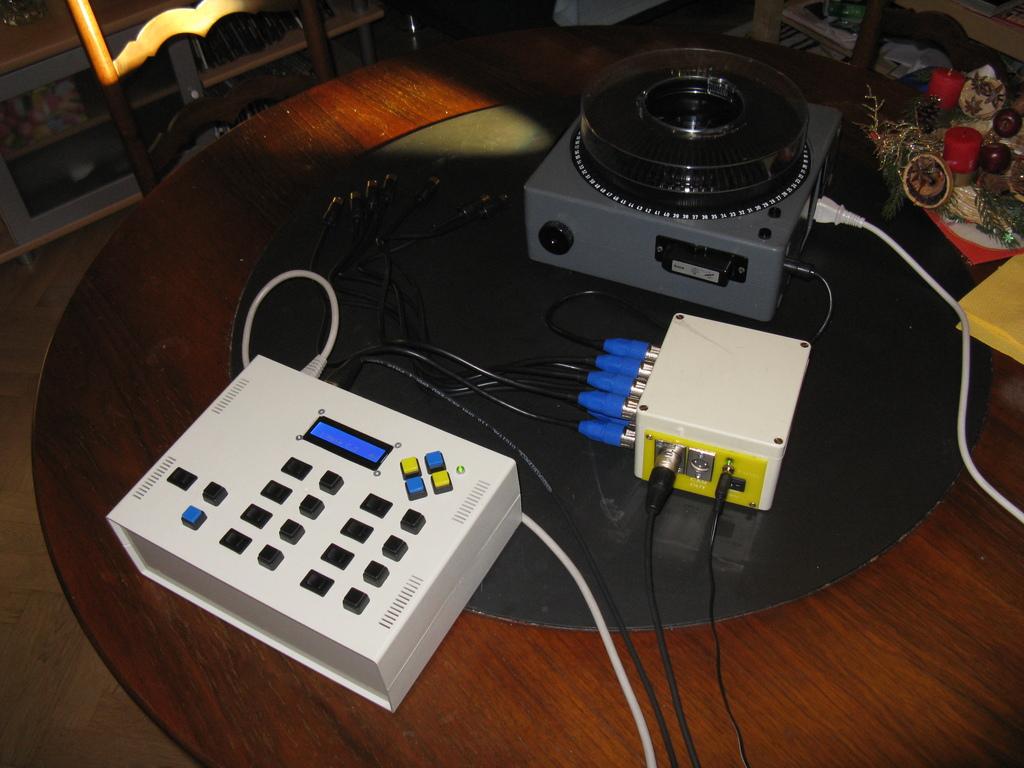

The stagebox on the left, distrobox in the middle, and controlled slide projector on top. Nice.

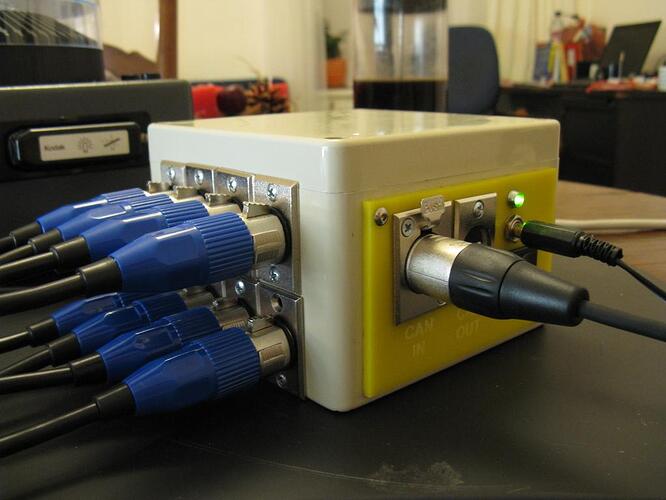

Fully plugged distrobox
Ready for 8 slide projectors!
