Best GLCD for MIOS32

Parts Questions
1

Dear Guys

One year ago i wanted to have a GLCD for my custom midibox.

A friend of mine gave me free GLCD “based” on KS0108 from China (no datasheet of course), but i can’t achieve it to work with Core32 (not tried with core8).

So there are some ebay auctions i noticed :

http://cgi.ebay.fr/1x-Graphics-LCD-128x64-KS0107-Green-Backlight-fcbusa-/360132992501?cmd=ViewItem&pt=LH_DefaultDomain_0&hash=item53d9995df5

(datasheet LCM-S12864GSF+C.pdf)

http://cgi.ebay.fr/Graphic-LCD-Module-Display-12864-H-Y-YG-with-T6963C-/190340658673?cmd=ViewItem&pt=LH_DefaultDomain_0&hash=item2c512ff5f1

(datasheet JHD12864H.pdf)

http://cgi.ebay.fr/ws/eBayISAPI.dll?ViewItem&item=130337989859&ssPageName=ADME:B:WNASIF:FR:1123

(datasheet YMG12864-5.pdf)

The budget is around 15€. But it can more if you find me the perfect beast ! :frantics:

I 'd like something completly compatible with the drivers developed for mios32 (ks0108, st76, st69..), the maximum contrast(e.g white on black), the finest pitch and the biggest area possible. The possibility to put 2X 128*64 is a pro. Backlight is a must

So could an expert have a look at the datasheets ? i did , but except pinning, there are things i do not understand : what’s “duty”, “bias” ? why some controllers change their reference and do the same job as others, are they completly compatible ? what’s the font size ??

Thanks in advance for your help, do not hesitate to put your sources for good GLCDs

best regards

[LCM-S12864GSF+C.pdf](< base_url >/applications/core/interface/file/attachment.php?id=7476)

[JHD12864H.pdf](< base_url >/applications/core/interface/file/attachment.php?id=7477)

[YMG12864-5.pdf](< base_url >/applications/core/interface/file/attachment.php?id=7478)

2

whowhopwhop !!!

i want that :

so TK, what’s your trick ? :w00t:

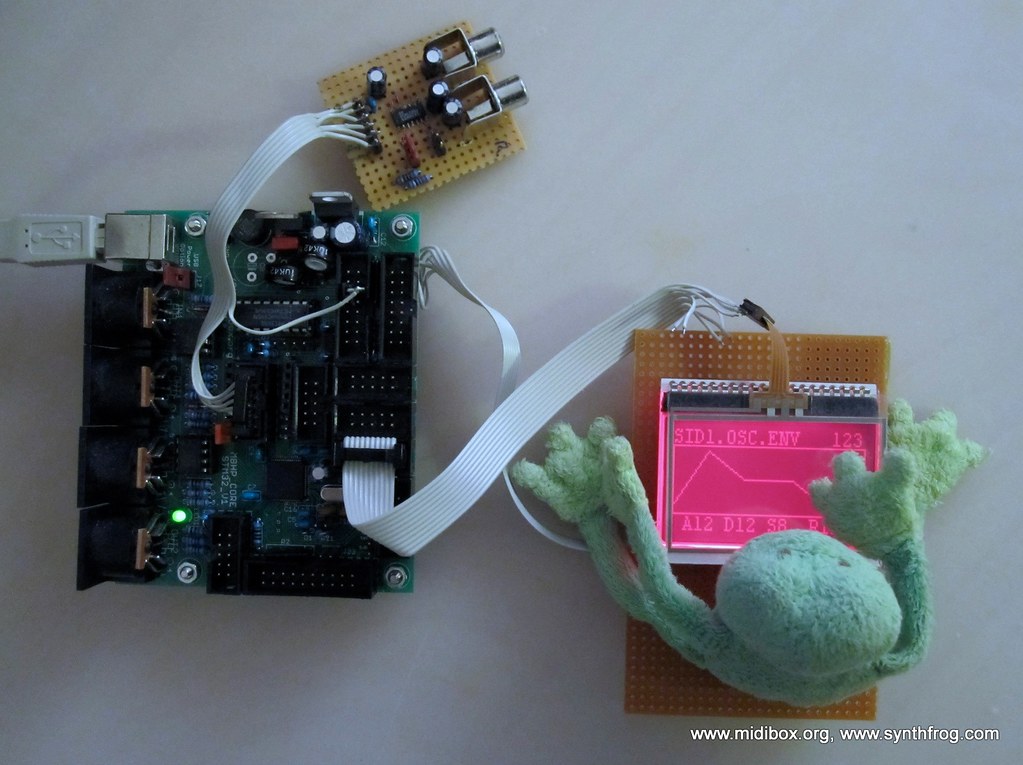

mbsid_touch
mbsid_touch1023×765 129 KB

3

whowhopwhop !!!

i want that :

so TK, what’s your trick ? :w00t:

My guess is the display in the picture is a DOGXL160-7 with touchpanel.

mbsid_touch
mbsid_touch1023×765 129 KB

4

My guess is the display in the picture is a DOGXL160-7 with touchpanel.

Close, it is the EA DOGM128-6 (128x64). The DOGXL160-7 (160x104) is quite a bit bigger. Both are fully supported by MIOS32 :slight_smile:

Cheers

Phil

5

is there an “algorithm-driver” for the touchpanel too ?

thanks guys :thumbsup:

6

Take a look at http://svnmios.midibox.org/listing.php?repname=svn.mios32&path=%2Ftrunk%2Fapps%2Ftutorials%2F022_glcd_touchpanel%2F for the touchpanel driver.
