AOUT + AIN + EURO

latigid_on · August 19, 2016, 9:48am

Album by latigid on
Gallery category: schematics-and-pcbs





latigid_on · August 3, 2016, 10:49am

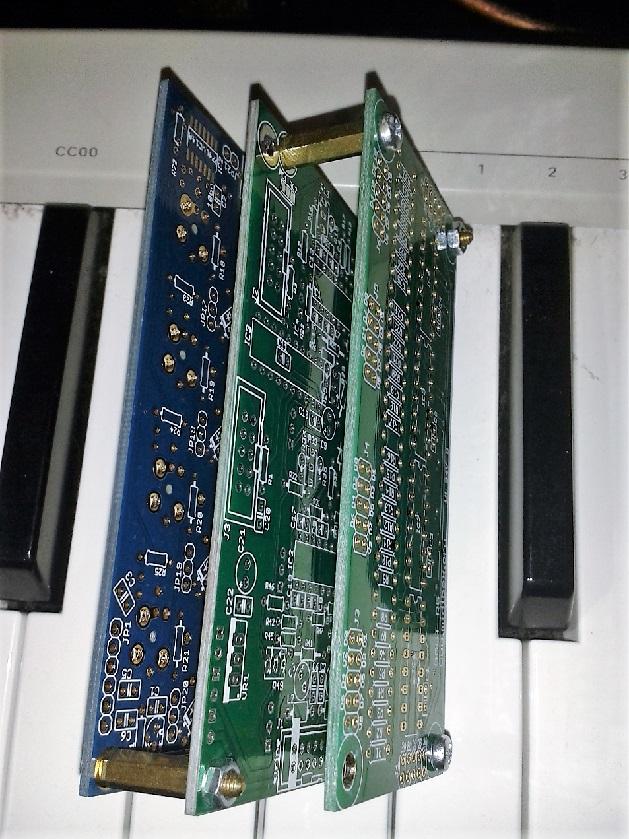

Re: stack.jpg

Control + AOUT + DOUT stacked.

Psykhaze · August 19, 2016, 10:25am

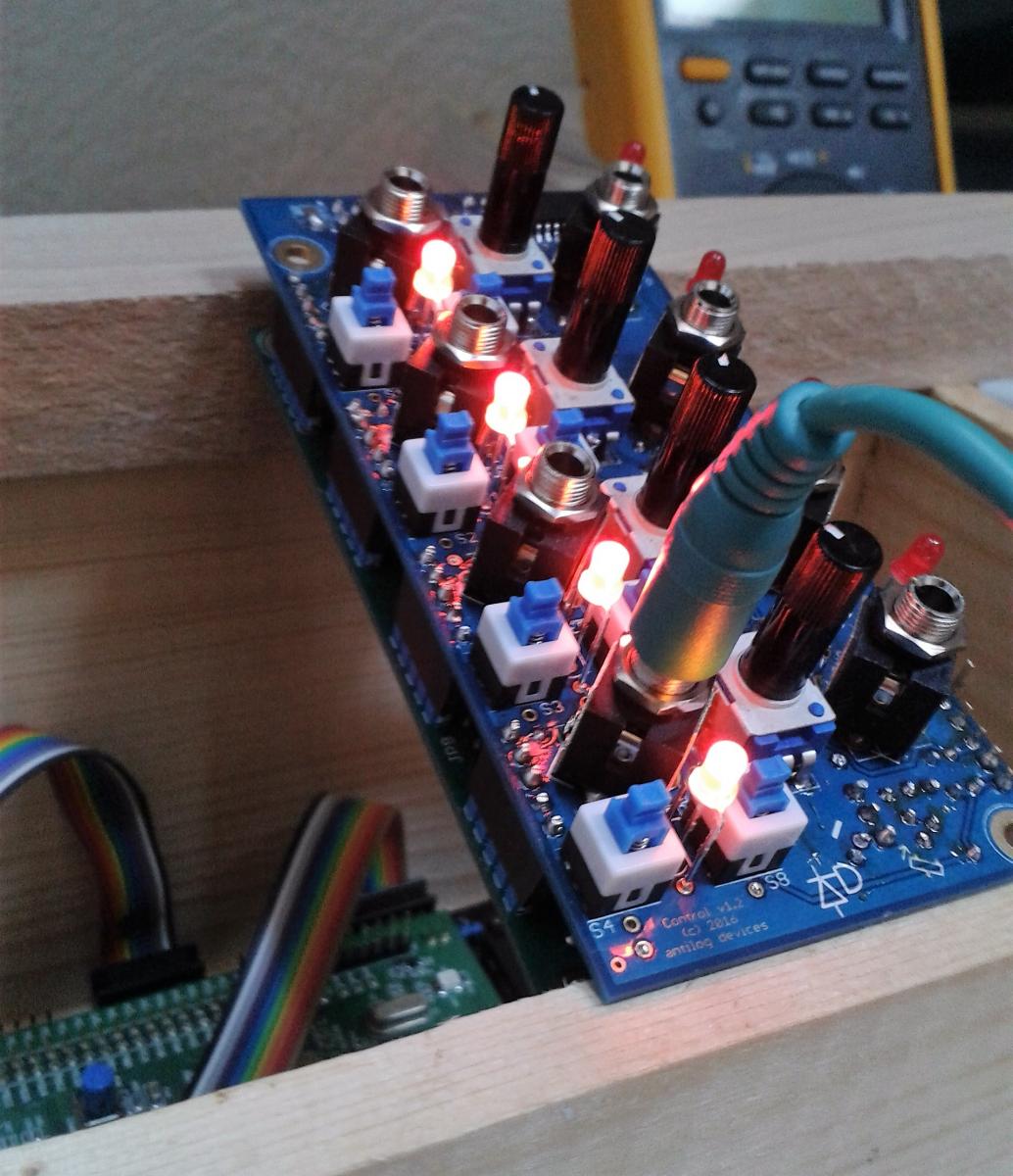

Re: lit.jpg

looks cool finished!

latigid_on · August 19, 2016, 10:47am

Re: lit.jpg

Thanks! Still needs a panel though

Psykhaze · August 19, 2016, 11:31am

Re: lit.jpg

btw are wood support on the photo euro “sized” ? maybe that’s the angle but the bottom board seems to fit just?

latigid_on · August 19, 2016, 11:53am

Re: lit.jpg

Top board (blue) is 108mm tall, bottom (green) is 100mm. The wooden box is an old wine case that happens to be about 133mm as the outside dimension. Inside is ~110mm, so a good facsimile for Euro rails.
