Pictures of my Midibox SID build.
http://midibox.org/forums/topic/19104-build-anatomic-instruments-sid-build-thread/
IMG 20141207 010942
An old european C64 donated to me from an old friend
IMG 20141023 223902

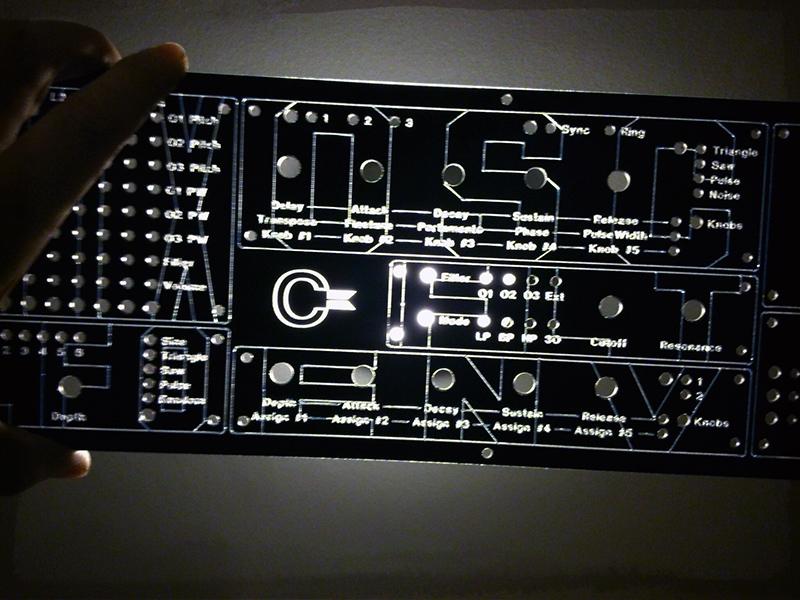

First version of the front panel. The final version will be better, including a proper Commodore logo.
IMG 20141106 223956

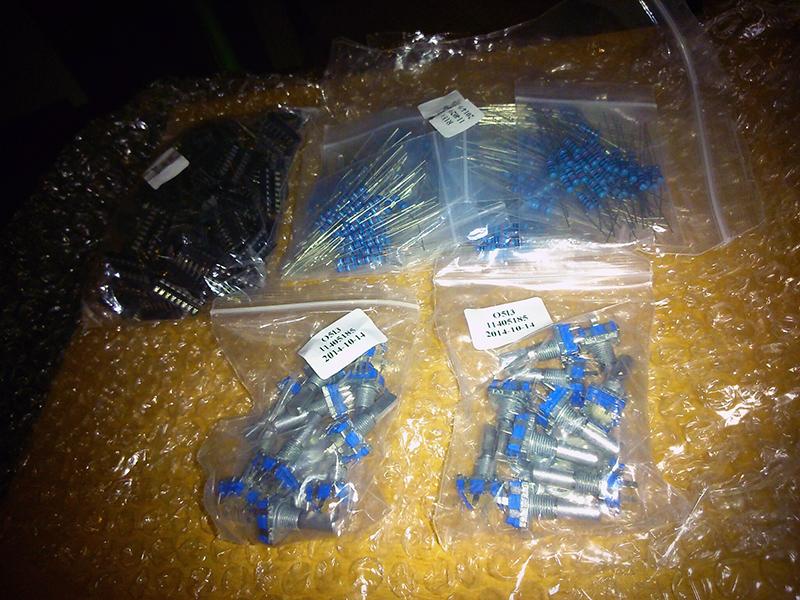

First order of parts. DIL sockets, resistors and rotary encoders from China.
IMG 20141120 202317

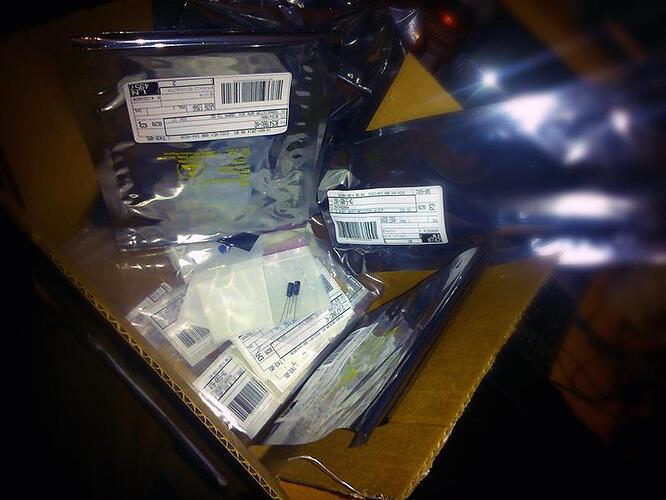

Second order of parts. All kinds of stuff from Digi-Key.
IMG 20141201 133631

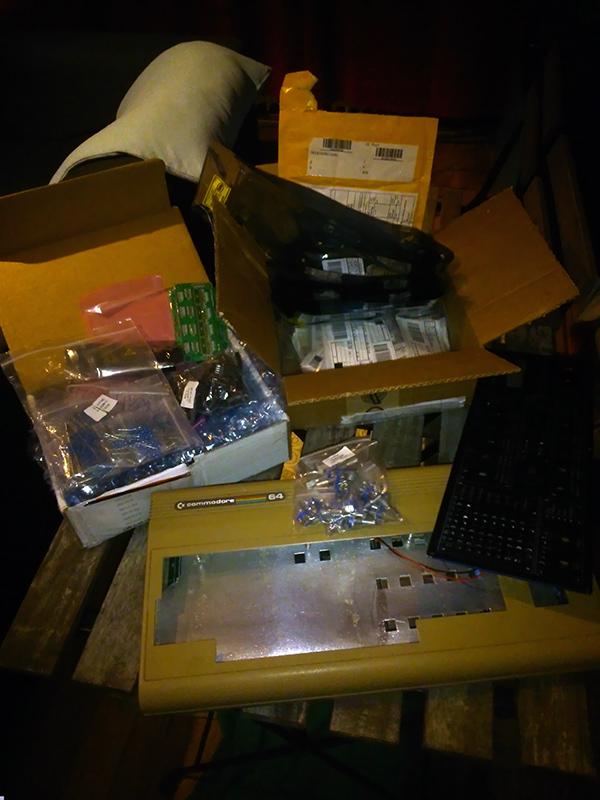

Third order of parts arrived, from SmashTV. Now the only thing left is to build the damn thing.
IMG 20141129 194845
Saturday night. Measuring parts that are going to be repurposed from the old computer.

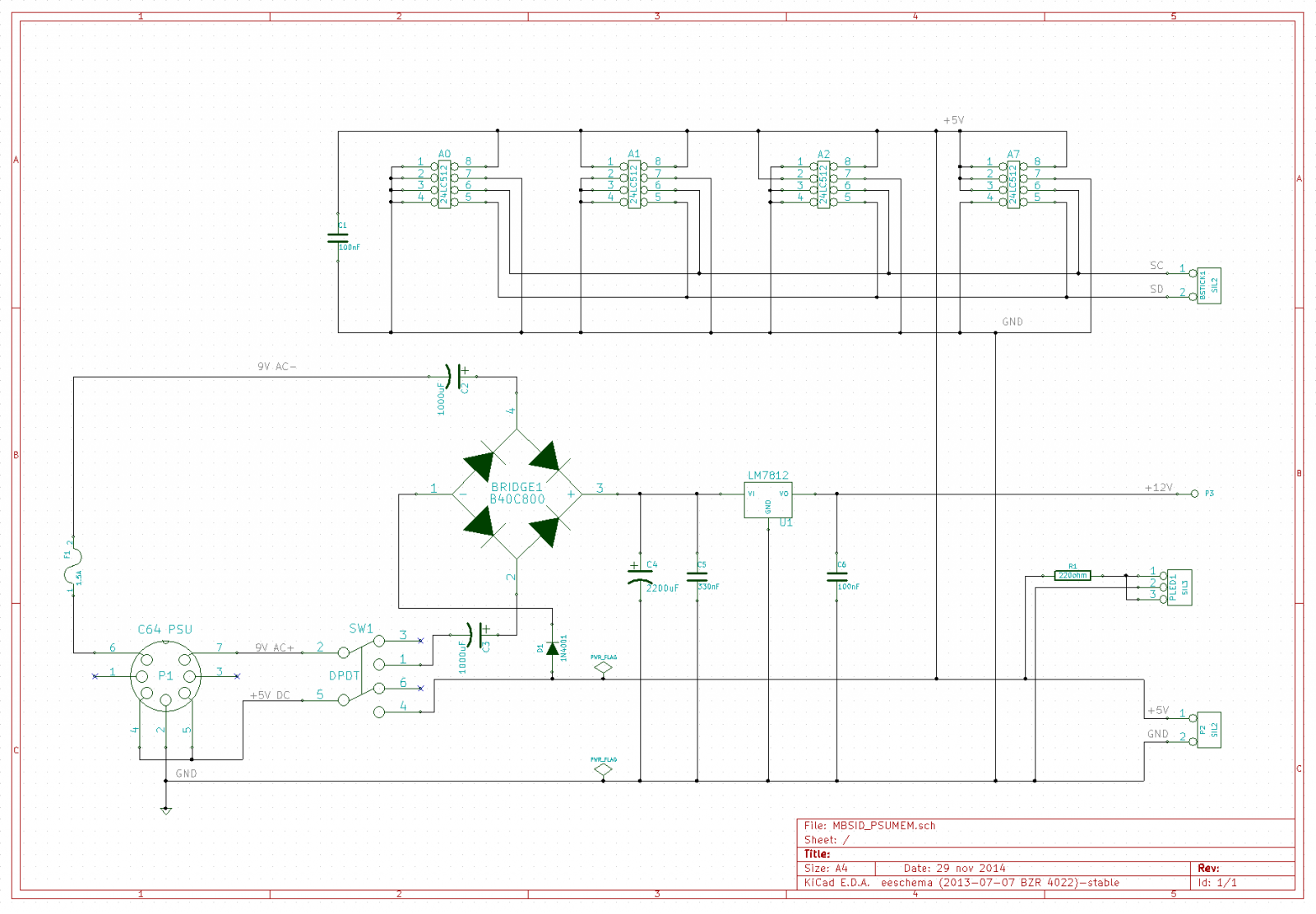

AISID PSUMEM schematic
Schematic of my PSU 12V regulator & bankstick circuit.
IMG 20141206 165735

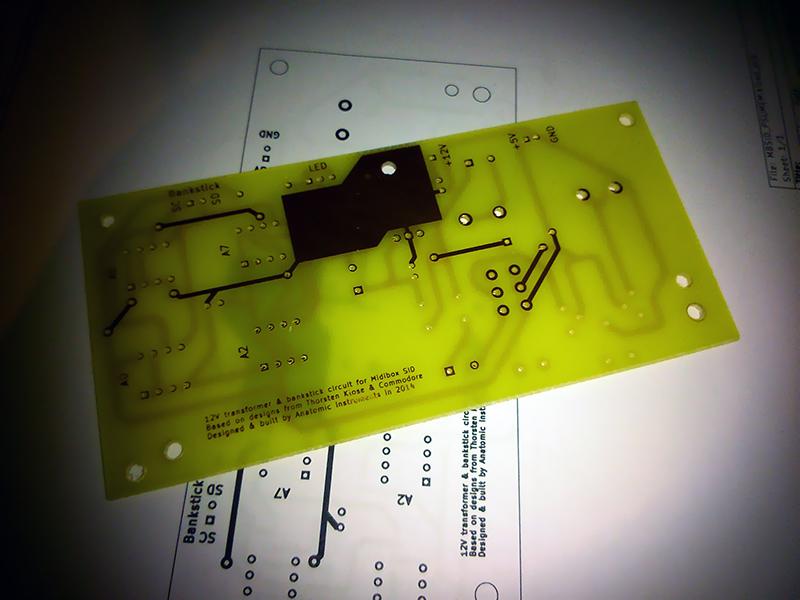

12V regulator & bankstick PCB
DIN pinout with J5
My planned DIN pinout but I get the feeling that using J5 is next to impossible without some serious coding.

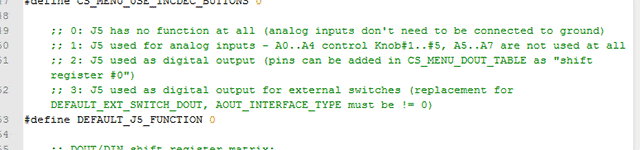

default J5 function
No default function for digital input to be seen…

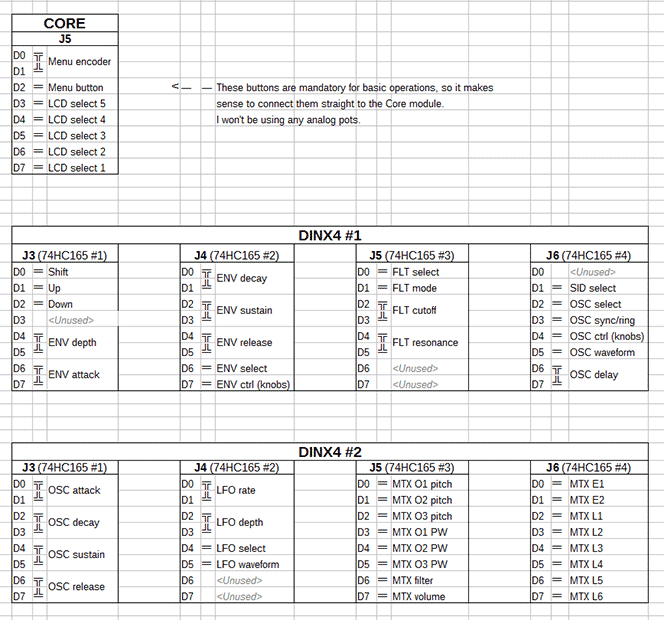

DIN pinout without J5
Revised DIN pinout with J5 removed.
SID PCB Pin labels

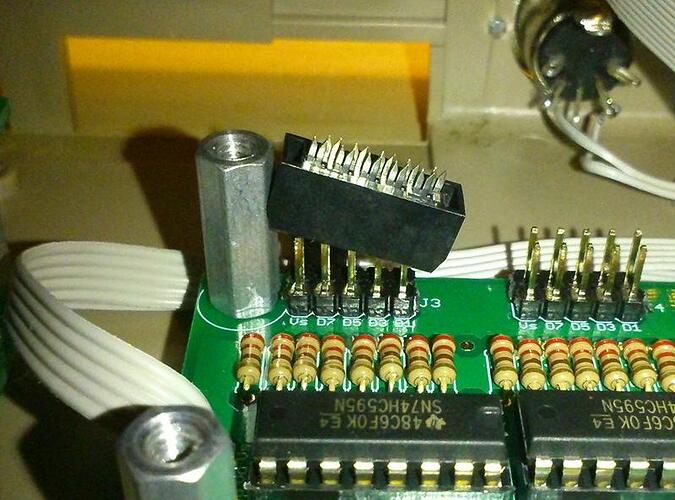

DOUT IDC plug
Dammit!
