like the title says.
yes that’s the fabled mb-6582 base pcb for those who don’t really believe it exists.
and yes those are 0.001% tolerance cut resister leads,
which i’ll sell on ebay someday when their value has doubled enough times…
I love that mega big soldering clamp thingy!! You gotta link for that by chance?
How’s that chief? ;D

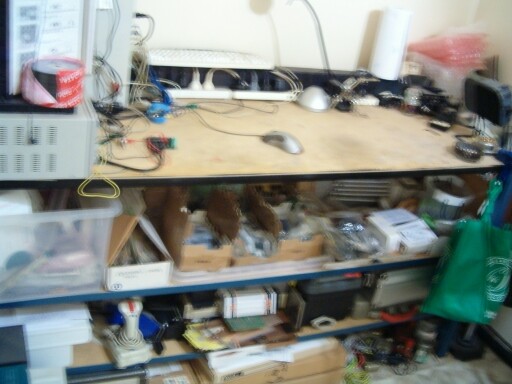

All components in labelled smashtv boxes, pricey and delicate stuff (tubes of filters and sids and delays, GSSL and wilbasid kits etc) in the big white bin of pleasure, tools including USB scope and various meters (cheap ones are sacrificial lambs) and dremel all stowed, drill press out of the way underneath the green bag full of safety gear…where is your safety gear? Oh, you must have been wearing it when you took the pic huh…yeh right
Note the coffee jar next to the soldering iron stand, that’s for holding 0.001% tolerance cut resister leads. Actually it’s hard to spot. Back-right corner of the desk, that’s a hakko 936 ESD clone next to it. I need a new camera.
Oh I forgot, the most important part of any lab, the bug!
This is the uncle of the one that’s currently hanging out here, but he’s camouflaged, and asleep so I don’t wanna shoot flash photos. They come by all the time. The one in this pic is about 3" across… Yes, he really is winking at me
.. where do you put your knees n legs when you sit at the desk?
.. where do you put your knees n legs when you sit at the desk?
It’s a workbench not a desk, you stand up at it
Thanks BF!
Aussies: Go here http://www.techtron.net.au/xcart/product.php?productid=18513&cat=0&page=1
Quote from: cimo on Yesterday at 23:19
.. where do you put your knees n legs when you sit at the desk?
It’s a workbench not a desk, you stand up at it Smiley
ugh right! i like having a balans stol and an high workbench though
Mmmmm… PanaVise… *drool*
you guys make me unhappy with my setup.. :( maybe someday i can get enough room for some stuff like you guys have. when i post my MbSid pics i’ll post a pic of my workspace so you guys can make fun of me. ;D i love the spider stryd!
[edit] are the 0.001% tolerance cut resister leads references a joke that i’m not getting ???
Yeh comon guys post your pics! Don’t be unhappy with your setup - I guarantee no matter what it is, someone has one better worse than yours… or just different. We thought it’d be cool to have a “show us your lab” thread, and everyone’s gone scaredy-cat! Don’t be shy
[edit] are the 0.001% tolerance cut resister leads references a joke that i’m not getting ???
Yes. A search on the forum might clear that up though.
Man, am I glad my camera is still not working else I’d have to show pics of my workspace as well
[edit] are the 0.001% tolerance cut resister leads references a joke that i’m not getting Huh
more than a joke they are a mistery, they ve been seen around over work benches, in small plastic boxes, in people pockets, especially those ones with a bit of glue left from the tape are dreadful ! yet it s almost impossible to find them when you need them and then you have to sacrifice a working resistor.But the tolerance is your best bet!
hope that enlighten you
Yeh comon guys post your pics! Don’t be unhappy with your setup - I guarantee no matter what it is, someone has one better worse than yours… or just different. We thought it’d be cool to have a “show us your lab” thread, and everyone’s gone scaredy-cat! Don’t be shy
I’m not shy. People have seen my desk when it’s tidy and covered with SIDs, or showing off the MB-6582 hehehe
Here’s what it looks like today. (Note the new 22" monitor *drool*)
(Note the new 22" monitor *drool*)
And what’s on it… and the paper mockup…and the various mb6582’s… *drool**drool**drool*
“show us your lab” thread
Not *that* kind of lab, that’s cheating!
Here’s one for anybody bummed out about trying to work in a mess (might make you feel a little better). -No, it’s not usually that bad. ;D
I actually took that picture because it looked so horrible at the time. Most of my electronics stuff has moved to a house for right now, so the desk gets junk piled on it sometimes. I built it for doing electronics and haven’t put it to very good use. The shelves in the corner (where the monitor is) go up to the ceiling and hold some meters and junk. That monitor is on the B port of a dual head card in my main computer (beside the electronics desk) so I can throw layouts and schematics over to it while I’m working. I’ll try to grab a picture sometime when it’s clean.
This (bottom one) was fun while it was around. It was in between my keyboard and monitor on angled brackets for working with MIOS stuff while still looking at the screen (painted to match the desk :)). I switched over to a toolbox looking thing later, but miss the convenience of that panel. The toolbox could probably use an angled stand or something.
Take Care,
George
