4x4 LED Matrix

Design Concepts
1

Hi Everyone

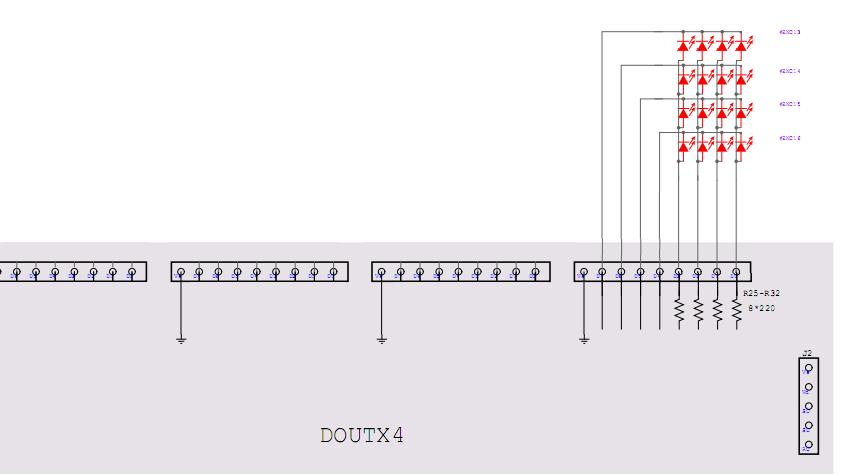

I wanted to know if the attached 4x4 LED matrix wiring schematic would work. I know i would have to Rewrite some code and stuff. Or will i have to stick with the traditional LED matrix wiring (http://www.ucapps.de…x4_ledrings.pdf) and use 2x 74HC595. Im trying to reduce part’s count on my new project.

Thanx for the Help :smiley:

post-5066-0-10886900-1330802065.jpg850×476 24.5 KB

2

You will built the matrix with the 2x 74HC595 i-cs.

Regards,

Janis

3

Should work with the appr. code! :slight_smile:

Best Regards, Thorsten.
