1 AIN module = 8 input ?

zero · May 20, 2008, 6:55pm

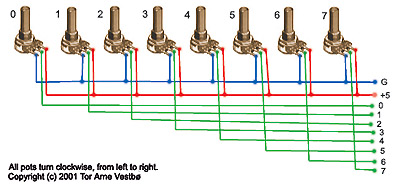

I was looking at the AIN module in this picture and iÂ´like to know if it is correct, Can I connect 16 Pots ? IsnÂ´t it necessary two module for 16Pots? In the picture i see just one module and i think the module can suport just 8

asafnetzer · May 20, 2008, 7:22pm

The AIN module comes with 4051 multiplexers for analog signals, each multiplexer provides 8 inputs. Currently only the layout for an ainx4 module with 4 multiplexers (=32 inputs)

http://www.ucapps.de/mbhp_ain.html

stryd_one · May 21, 2008, 12:17pm

I’m starting to think that you got your nickname from how much reading you do before you post ;D

zero · May 21, 2008, 12:51pm

Man, i read some pages, and i was confusing about one picture from midibox lc, pots have 3 parts, +,-,third (duno), i was a little confusing about use these inputs(32) into theses pots 3 parts (like this picture , but i guess i understand now.
